Parts
SealMaster® carries the largest parts selection in the pavement maintenance industry. Prices are F.O.B. Sandusky, Ohio and are subject to change. For incentive specials and rebates contact your local SealMaster.
Call (800) 395-7325 for the SealMaster nearest you!
Parts Listing By Type
Ball Valves
Available with or without bolts
Brass Ball Valves
| Product # | Description | Weight |
|---|---|---|
| P397A009 | 1/2” (manual spray bar) | 2 lbs. |
| P397A001 | 3/4” (SandPups) | 3 lbs. |
| P397A013 | 1” (Hydraulic spray bars) | 4 lbs. |
| P397A012 | 1 1/4” (Return Line Tanks) | 2 lbs. |
| P397A002 | 2” (Material Lines) | 6 lbs. |
| P397A008 | 3” Brass Ball Valve | 18 lbs. |
Carbon Steel Ball Valves
| Product # | Description | Weight |
|---|---|---|
| P397A010 | 3/4” (wands) | 3 lbs. |
| P397A006 | 1” (Hydraulic spray bars) | 4 lbs. |
| P397A003 | 2” (Material lines) | 8 lbs. |
Basket Strainers
| Product # | Description | Weight | |
|---|---|---|---|
| P50313A | Basket Only – Gallon – 1/8” holes | 5 lbs. | |
| P50313B | Basket Only – Quart – 1/8” holes | 2 lbs. | |
| P50313BQ | Basket Only – Quart – 1/4” holes | 2 lbs. | |
| P50313BXS | Basket Only – Quart – 1/16” holes | 2 lbs. | |
| P50313D | Basket Only – Gallon Diamond Mesh | 5 lbs. | |
| P50313N | Basket Only – NEAL – 1/8” holes | 2 lbs. | |
| P50313NQ | Basket Only – NEAL – 1/4” holes | 2 lbs. | |
| P50313Q | Basket Only – Gallon – 1/4” holes | 5 lbs. | |
| P50313XL | Basket Only – 3 Gallon – 1/8” holes | 7 lbs. | |
| P50313XLD | Basket Only – 3 Gallon DIAMOND | 7 lbs. | |
| P50313XLQ | Basket Only – 3 Gallon – 1/4” holes | 7 lbs. | |
| P50313XLS | Basket Only – 3 Gallon – 1/16” holes | 7 lbs. | |
| P50313XS | Basket Only – 1 Gallon 1/16” holes | 5 lbs. | |
| P50313ABQ | Basket Only – Able – 1/4” holes | 5 lbs. | |
| P50313AB | Basket Only – Able – 1/8” holes | 5 lbs. | |
| P50313SR | Basket Only – SealRite – 1/8” | 5 lbs. | |
| P50313SRQ | Basket Only – SealRite – 1/4” | 5 lbs. | |
| P50147I | Locking Handle Assy. – Qt | 5 lbs. | |
| 1 Quart Basket Only measures 3 1/8″ high with a 3 3/8″ diameter | |||
| 1 Gallon Basket Only measures 6″ high with a 6 1/4″ diameter | |||
| 3 Gallon Basket Only measures 11 3/4″ high with a 6 1/4″ diameter | |||
| Neal Basket Only measures 6″ high with a 3 3/8″ diameter | |||
| SealRite Basket Only measures 6 1/4” high, 6 1/4” bottom diameter, 9” top diameter | |||
| Able Basket Only measures 5 7/8” high, 6 1/4” bottom diameter, 8 1/8” top diameter | |||
3 Gallon Basket Strainer Assembly (Complete)*
| Product # | Description | Weight | |
|---|---|---|---|
| P50147B005 | 3 Gallon Basket Strainer complete with 3” nipples (6 o’clock and 12 o’clock) | 40 lbs. | |
| P50147F005 | 3 Gallon Basket Strainer – 4800 Tanker | 45 lbs. | |
| 3 Gallon Basket Complete measures 23″ high with an 8″ diameter. | |||
| *When ordering Basket Strainer Complete, please specify the hole size for basket. | |||
1 Gallon Basket Strainer Assembly
| Product # | Description | Weight |
|---|---|---|
| P50147B002 | Housing, lid, & basket | 30 lbs. |
| P50119A | Lid gasket for 1-gallon strainer and 3 gallon | 2 lbs. |
| P50147D | 1-gallon basket lid assembly and 3 gallon | 8 lbs. |
1 Quart Size Basket Strainer Assembly
| Product # | Description | Weight |
|---|---|---|
| P50147B004 | Housing, lid, & basket | 12 lbs. |
| P50119B | Lid gasket – quart size | 2 lbs. |
| P50147J | 1-quart basket lid assembly with handle | 4 lbs. |
| P50147I | Locking handle Assy. | 5 lbs. |
Basket Strainer Assy.
| Product # | Description | Weight |
|---|---|---|
| P50147B007 | A. Qt. Basket Strainer Assy. Tack Coat | 12 lbs. |
| P50147B008 | B. Gallon Basket Strainer Assy. Trailer Mounts |
30 lbs. |
| P50147B009 | C. Gallon Basket Strainer Assy. SP-300/575 | 30 lbs. |
| P50147B010 | D. Gallon Basket Strainer Assy. TR’s W/2” Upgrade |
30 lbs. |
| P50147B011 | E. Gallon Basket Strainer Assy. SandPup II | 30 lbs. |
| P50147B012 | F. Gallon Basket Strainer Assy. Skid Tanks | 30 lbs. |
| P50147B013 | G. Gallon Basket Strainer Assy. Skids w/2” Upgrade |
30 lbs. |
| P50147B014 | H. Gallon Basket Strainer Assy. 10K Master Mix |
30 lbs. |
Bearings, Seals, Plates, & Packing Glands
Flange Bearings
| Product # | Description | Weight |
|---|---|---|
| P432A001 | 3/4”, 2-hole, 3 1/2” C to C | 1 lb. |
| P432A002 | 1”, 2-hole, 4” C to C | 2 lbs. |
| P432A003 | 1 1/4”, 2-hole, 5 1/8” C to C | 3 lbs. |
| P432A004 | 1 1/2”, 2-hole, 3 3/4” C to C | 4 lbs. |
| P434A002 | 1 1/4”, 4-hole, 3 5/8” C to C | 5 lbs. |
| P434A003 | 1 1/2”, 4-hole, 4” C to C | 6 lbs. |
| P434A004 | 2”, 4-hole, 5 1/8” C to C | 10 lbs. |
| P434A006 | 2 15/16”, 4-hole, 6” C to C | 29 lbs. |
| P434A001 | 1”, 4-hole, 2 3/4” C to C | 3 lbs. |
Pillow Block
| Product # | Description | Weight |
|---|---|---|
| P435A003 | 1 1/4”, 2-hole, 5” C to C | 6 lbs. |
| P435A004 | 1 1/2”, 2-hole, 5 1/2” C to C | 6 lbs. |
| P435A005 | 2”, 2-hole, 6 1/4” C to C | 10 lbs. |
| P435A001 | 3/4”, 2-hole, 4” C to C | 3 lbs. |
| P435A002 | 1”, 2-hole, 4 1/4” C to C | 3 lbs. |
Rubber Agitator Shaft Seal & Bearing Plates
| Product # | Description | Weight | |
|---|---|---|---|
| P50137B001 | 2” packing gland seal | 4 lbs. | |
| P50137B006 | 2” bearing plate – steel | 4 lbs. | |
| P50137B007 | 2” seal bearing plate | 4 lbs. | |
| P50137B002 | 1 1/2” seal bearing plate | 3 lbs. | |
| P50137B003 | 1 1/2” bearing plate – steel, 4-bolt hole | 3 lbs. | |
| P50137B004 | 1 1/4” bearing plate – steel, 4-bolt hole | 3 lbs. | |
| P50137B005 | 1 1/4” seal bearing plate | 3 lbs. | |
| P50137B010 | 2 15/16” packing gland seal | 5 lbs. | |
| P50137B011 | 2 15/16” bearing plate – steel | 5 lbs. | |
| P50137B012 | 2 15/16” seal bearing plate | 5 lbs. | |
| P50137B009 | 1 1/4” seal bearing plate (SP 300), 2-bolt hole | 1 lb. | |
| P50137B008 | 1 1/4” bearing plate – steel (SP 300), 2-bolt hole | 2 lbs. | |
| P74000B425 | Rubber Seal – Agitator Crack Pro’s 260 & 400 | 3 lbs. | |
Steel Packing Gland
| Product # | Description | Weight | |
|---|---|---|---|
| P50138B | 2” packing gland weldment | 18 lbs. | |
| P50138D | 2 15/16” packing gland weldment | 20 lbs. | |
| P50139C | 2” packing gland kit | 35 lbs. | |
| P50139D | 2 15/16” packing gland kit | 40 lbs. | |
| P638A006 | 1/4” mechanical packing | 1 lb. | |
Billy Goat Blower Parts
| Product # | Description | Billy Goat Part # | Weight | |
|---|---|---|---|---|
 |
||||
| P157A067 | Front Wheel | 900816 | 5 lbs. | |
 |
||||
| P157A068 | Front Wheel Bracket | 430192 | 4 lbs. | |
| P157A031 | Rear Wheel | 400295 | 5 lbs. | |
 |
||||
| P157A069 | Impeller Assembly | 400965 | 16 lbs. | |
| P157A027 | Throttle Control Kit | 400429 | 2 lbs. | |
| P157A070 | Throttle Control Kit | 430199 | 2 lbs. | |
| P157A072 | Front Wheel-Pneumatic | 430271 | 7 lbs. | |
| P157A071 | Front Wheel Bracket | 430270 | 5 lbs. | |
| P157A077 | Cable Gust Control | 430418 | 2 lbs. | |
Brush Water Box
| Product # | Description | Weight | |
|---|---|---|---|
| T1144 | Brush Water Box – 40”, 34.63 Gal | 100 lbs.* | |
| T1146 | Brush Water Box – 55”, 47.62 Gal | 130 lbs. | |
| *Oversized parts must ship at 30 lb. rate. | |||

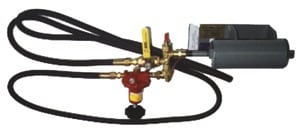

Burner Assemblies
For SM-30’s & Tack Machines (300, 575, & 1500)
| Product # | Description | Weight |
|---|---|---|
| P735A031 | Burner Assembly Complete | 9 lbs. |
| P662B003 | Burner Plate | 3 lbs. |
| P662A003 | Burner Only | 6 lbs. |
| P679A003 | Thermocouple 24” | 1 lb. |
| P735A015 | Regulator | 2 lbs. |
| P669A005 | Hose – LP gas x 10 ft. | 3 lbs. |
| P933A001 | Pal-Nut | 1 lb. |
| P935A001 | Coupler – LP gas | 1 lb. |
| P735A016 | SM 30 Gas Valve | 3 lbs. |

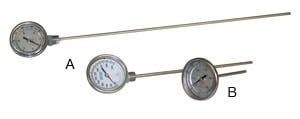

| P659A004 | 12” Stem Thermometer | 1 lb. |

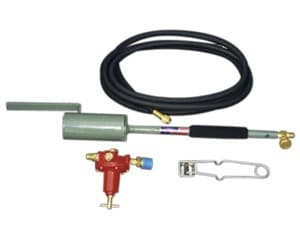

For MA-10 Melter and SM-30 Melter (2011-Present)
| Product # | Description | Weight | |
|---|---|---|---|
| P670A004 | MA-10 and SM-30 Torch Kit – Torch w/ 6 ft. Hose, Regulator and Ignitor | 8 lbs. | |
| P670A006 | Torch Only | 4 lbs. | |
| P662A030 | Valve/Orfice | 1 lb. | |
| P659A004 | MA-10 Thermometer | 1 lb. | |
| P669B005 | Propane Hose Assy x 6 ft. | 3 lb. | |
| P735A015 | Regulator | 2 lbs. | |
| P735A007 | Gauge 0-60 PSI 1/4″ Thread | 1 lbs. | |
Hand Torch Assembly
| Product # | Description | Weight | |
|---|---|---|---|
| P75000B010 | Hand Torch Assembly | 4 lbs. | |
Clamp Coupling 2-Piece
| Product # | Description | Keyway Size | Weight |
|---|---|---|---|
| P498A001 | 1” to 1” | 1/4” & 1/4” | 5 lbs. |
| P498A002 | 1” to 1 1/16” | 1/4” & 1/4” | 5 lbs. |
| P498A003 | 1” to 1 1/8” | 1/4” & 1/4” | 5 lbs. |
| P498A004 | 1” to 1 1/4” Solid Coupling | 1/4” & 3/8” | 5 lbs. |
| P498A008 | 1” to 1 1/2” | 1/4” & 1/2” | 5 lbs. |
| P498A009 | 1 1/4” to 2” Solid Coupling | 5/16” & 1/2” | 5 lbs. |
| P498A010 | 1” to 1/2” | 1/4” & 1/8” | 5 lbs. |
| P498A011 | 1” to 5/8” | 1/4” & 5/32” | 5 lbs. |
| P498A012 | 1 1/4″ to 1 1/4″ Solid Coupling | 5/16″ & 3/8″ | 5 lbs. |
| P498A013 | 1″ to 2″ Solid Coupling | 1/4″ & 1/2″ | 5 lbs. |
| P498A014 | 1 7/16” to 5/8” | 3/8” & 5/32” | 5 lbs. |
| P498A015 | 1 7/16” to 1/2” | 3/8” & 1/8” | 5 lbs. |
| P498A017 | 3/4” to 1/2” Solid Coupling | 3/16” & 1/8” | 5 lbs. |
CrackPro Applicator Wands/Shoes
| Product # | Description | Weight | |
|---|---|---|---|
 |
|||
| P163A009 | Crack Sealing Square 3/4″ | 3 lbs. | |
| P163C009 | Crack Sealing Square 1/2″ | 3 lbs. | |
 |
|||
| P163A012 | Wand Shoe | 4 lbs. | |
 |
|||
| P163A005 | Sealing Shoe | 4 lbs. | |
CrackPro Parts
CrackPro 60 & 100 Gravity Flow
| Product # | Description | Weight | |
|---|---|---|---|
 |
|||

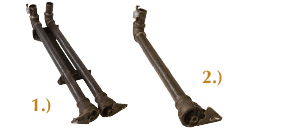

| P662B032 | Burner – Double – CP100/125 | 19 lbs. | |
| P662B030 | Burner – Single | 7 lbs. | |
| P75000C028 | Orifice/Burner CP60 (.1406) | 1 lb. | |
| P735E028 | Orifice/Burner CP 100/125 (R.H./.125) | 1 lb. | |
| P735F028 | Orifice/Burner CP 100/125 (L.H./.0937) | 1 lb. | |
| P735A034 | Regulator | 3 lbs. | |
 |
|||
| P735A036 | Gas Valve | 3 lbs. | |
 |
|||
| P735A037 | Pilot Light | 1 lb. | |
| P735A015 | Regulator – Hand Torch | 3 lbs. | |
CrackPro 100, 125, 200, 250, & 400 with Pump System
| Product # | Description | Weight | |
|---|---|---|---|
 |
|||
| P662A043 | A) Coil 12 Volt | 1 lb. | |
| P662A044 | Motor Kit – includes motor / 1/2 shaft, wheel, and coupling | 6 lbs. | |
| P662A050 | B) Cord Set | 1 lb. | |
| P662A052 | Valve Stem | 1 lb. | |
| P662A019 | C) Burner Tube Assembly | 1 lb. | |
| P662A051 | D) Fuel Pump (CLEANCUT) – includes coil 12 volt, cord set, and burner tube assembly | ||
| P662A009 | Burner Assembly-complete | 23 lbs. | |
 |
|||

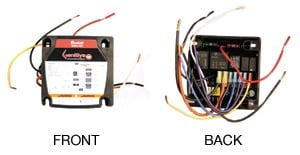

| P662A010 | Burner Primary Artisan | 4 lbs. | |
 |
|||
| P662A011 | Burner Fuel Pump | 4 lbs. | |
 |
|||
| P662A046 | Blower Wheel – Fits 1/2” Shaft | 2 lbs. | |
 |
|||
| P662A014 | A) Cad Cell | 2 lbs. | |
| P662A015 | B) Ignitor Transformer Assembly (Cad cell included) | 2 lbs. | |
 |
|||
| P662A016 | Burner Coupling – fits both motors | 1 lb. | |
 |
|||
| P662A017 | Burner Nozzle / CP 125-250-400 | 1 lb. | |
| P662A060 | Burner Nozzle / CP 60 Diesel | 1 lb. | |
| P662A069 | Burner Nozzle / SM-125 | 1 lb. | |
 |
|||
| P662A018 | Burner Electrode | 2 lbs. | |
 |
|||
| P662A020 | Oil Valve | 1 lb. | |
| P640A067 | Material Pump (CP with Heated Hose) | 75 lbs. | |
| P640A040 | Material Pump | 91 lbs. | |
Non-Heated Hose
| P17582A004 | Crackfilling Mat. Hose with Protective cover and hose ends | 20 lbs. |
Heated Hoses
| P17582B007 | Heated Hose – 18 ft. | 22 lbs. | |
| P17582B022 | Heated Hose – 22 ft. | 27 lbs. | |
| P17582A018 | Crafco Heated Hose – 18 ft. | 22 lbs. | |
| P17582A020 | Cimline Heated Hose – 22 ft. | 22 lbs. | |
 |
|||
| P469A001 | Applicator Head – 3” | 2 lbs. | |
| P469A002 | Applicator Head – 5” | 2 lbs. | |
 |
|||
| P477A027 | Female Disconnect | 1 lb. | |
| P477A028 | Male Disconnect | 1 lb. | |
 |
|||
| P163A004 (A) | 1/8″ C/F Wand Tip (Has 3/4″ NPT on end) | 1 lb. | |
| P163B004 (B) | 3/8″ C/F Wand Tip (Has 3/4″ NPT on end) | 1 lb. | |
| P163A004 (C) | 1/4″ C/F Wand Tip (Has 3/4″ NPT on end) | 1 lb. | |
| *Oversized parts must ship at 30 lb. rate. | |||
 |
|||
| P399A003 | Material Valve 1” Gate | 4 lbs. | |
| P399A020 | Material Valve 1” Gate longstem | 4 lbs. | |
| P399A013 | Material Valve 3” Steel Gate | 12 lbs. | |
| P652A002 | Protective Sleeve Only (off the P17582A004) | 1 lb. | |
| P397A020 | Wand Valve – Cold Pour | 4 lbs. | |
| P74000B001 | Wand Valve with modified handle | 4 lbs. | |
| P397A010 | Wand Valve | 4 lbs. | |
 |
|||
| P74000D000 | CP Wand Alumn. Complete with Switch | 34 lbs. | |
 |
|||
| P632B000 | Air Wand Assy. Sandpup II | 5 lbs. | |
 |
|||
| P632C000 | Air Wand Assy. 100 CFM Old Style | 5 lbs. | |
 |
|||
| P632D000 | Air Wand Assy. 100 CFM New Style | 30 lbs. | |
 |
|||
| P50273D | Cold Pour Wand | 15 lbs. | |
 |
|||
| P72000B102 | Anti Rotational Fork (for cold pour wand) | 2 lbs. | |
 |
|||
| P74000B000 | Crack Filling Wand | 15 lbs. | |
Drag Brush Holders
| Product # | Description | Weight | |
|---|---|---|---|
| P29977C | 72” Brush Holder | 30 lbs.* | |
| P29977D | 96” Brush Holder | 30 lbs.* | |
| T1230 | 72” Drag Brush | 5 lbs. | |
| T1240 | 96” Drag Brush | 6 lbs. | |
| *Oversized parts must ship at 30 lb. rate. Brush sold separately. | |||
Gate Valves
| Product # | Description | Weight |
|---|---|---|
| P399A001 | 1/2” Brass Gate Valve | 1 lbs. |
| P399A002 | 3/4” Brass Gate Valve | 1 lbs. |
| P399A003 | 1” Brass Gate Valve | 2 lbs. |
| P399A006 | 1 1/4” Brass Gate Valve | 2 lbs. |
| P399A004 | 2” Brass Gate Valve | 3 lbs. |
| P399A005 | 3” Brass Gate Valve | 6 lbs. |
Honda Engines
| Product # | Description | Weight |
|---|---|---|
| P458A080 | 120 CC | 42 lbs. |
| P458A022 | 160 CC | 35 lbs. |
| P458A027 | 160 CC; 6:1 gear reduction | 50 lbs. |
| P458A074 | 160 CC with electric start | 40 lbs. |
| P458A050 | 240 CC | 75 lbs. |
| P458A078 | 270 CC | 71 lbs. |
| P458A079 | 340 XX | 85 lbs. |
| P458A023 | 390 CC | 80 lbs. |
| P458A066 | 690 CC | 105 lbs. |
| P458A084 | 690 CC with Controls Mounted | 110 lbs. |
Hose Reels
| Product # | Description | Weight |
|---|---|---|
| P901A001 | Hose Reel – Manual | 41 lbs. |
| P901A002 | Hose Reel – Electric | 80 lbs. |
Hydraulic Agitator Motors
Agitator Drive Motor
| Product # | Description | Weight | |
|---|---|---|---|
| P474A088 | Fits 12A, 72, bulk storage, 12-A Dual, 72 Dual | 19 lbs. | |
| P474A078 | Fits pro-air & SandPumper II w/300-550 gallon tanks | 23 lbs. | |
| P474A017 | Fits pro-air, maxx-air, econoline, Master Mix, & 750 gallon and up | 35 lbs. | |
| P474A056 | Fits HD Bulk Tanks | 29 lbs. | |
| P474A042 | Fits CrackPro 60 & 100 gravity flow units | 21 lbs. | |
| P474A037 | Fits CrackPro 125 & 200 | 28 lbs. | |
| P474A036 | Fits CrackPro 400 | 34 lbs. | |
| P474A049 | Fits CrackPro 260 & 400 (2000 & up) | 35 lbs. | |
 |
|||
| P474A061 | Fits SP 300 Agitator | 23 lbs. | |
| P474A063 | Fits SP 575 Agitator | 30 lbs. | |
Hot Oil Pump Hydraulic Motor
| Product # | Description | Weight |
|---|---|---|
| P474A086 | Fits CrackPro 200 & 400 | 21 lbs. |
Hydraulic Pumps & Mounts
 |
|||
| Product # | Description | Weight | |
|---|---|---|---|
| P474A026 | Fits pro-air system 300-500 gallon (before 2003) (4-bolt flange) | 8 lbs. | |
| P601A041 | Fits pro-air 575 and under (2003-present) | 5 lbs. | |
| P601A004 | Fits bulk tanks w/electric motor | 9 lbs. | |
| P601A006 | Fits bulk storage tanks with gas engines, pro-air and maxi-air 1,000 gallon and up | 9 lbs. | |
| P601A007 | Fits SandPumper 1 1/2” (all sizes) | 17 lbs. | |
| P601A035 | Fits HD Bulk Tanks w/gas | 14 lbs. | |
| P601A038 | Fits HD Bulk Tanks w/3” Bowie | 8 lbs. | |
| P601A040 | Fits HD Bulk Tanks w/electric motor | 8 lbs. | |
| P601A014 | Fits Pro-Air and Maxi Air 750 and up | 9 lbs. | |
Pressure Compensated Hydraulic Pump
| Product # | Description | Weight |
|---|---|---|
| P601A008 | Fits SP 200 Dual, SP 300 Dual, SP 575 Dual SandPumper II tanks, 72 Dual | 19 lbs. |
| P601A010 | Fits 12 A Dual, SandPumper II tanks | 30 lbs. |
| P601A009 | SandPumper II tanks – Keyed Shaft | 30 lbs. |
Tandem Gear Hydraulic Pump
| Product # | Description | Weight |
|---|---|---|
| P601A018 | Fits SP 200 | 15 lbs. |
Gear Style Hydraulic Pump
| Product # | Description | Weight |
|---|---|---|
| P601A020 | Fits SP 300, SP 575 Econoline, Model 72 | 8 lbs. |
| P601A021 | Fits SP 200 Dual | 16 lbs. |
Hydraulic Pump
| Product # | Description | Weight |
|---|---|---|
| P601A023 | Fits CrackPro 200 & 400 | 9 lbs. |
| P601A024 | Fits CrackPro 200 & 400 with air compressor before 2010 | 16 lbs. |
| P601A044 | Fits Crack Pro with Air Compressor 80 CFM after 2010 |
15 lbs. |
| P601A046 | Fits Crack Pro with Air Compressor 100 CFM after 2010 |
15 lbs. |
Hydraulic Pump Mounts
| Product # | Description | Weight |
|---|---|---|
| P604A001 | Pump Mount (13 HP Honda to SP Pump) | 7 lbs. |
| P604A002 | Access Cover (for P604A001) | 1 lb. |
| P604A003 | Pump Mount (8 HP Honda to Hyd. Pump) | 5 lbs. |
| P604A004 | Access Cover (for P604A003) | 1 lb. |
| P29908B | Hyd. Pump Mount (Specify engine to Hyd. Pump) | 8 lbs. |
| P604A014 | Pump Mount 16 HP Vanguard to SP Pump | 8 lbs. |
| P604A015 | Pump Mount 24 HP Honda to Transmission | 8 lbs. |
| P604A023 | Pump Mount 23 HP Kohler to Transmission | 8 lbs. |
| P604A018 | Pump Mount 5 HP Honda to Small Hyd. Pump | 5 lbs. |
| P604A010 | Pump Mount 8 HP Honda to Large SP Pump | 8 lbs. |
Hydraulic Valves
| Product # | Description | Weight |
|---|---|---|
| P472A002 | A) Squeegee Assembly lift valve – fits 12A, 72, SP 200, SP 300 econoline | 7 lbs. |
| P472A016 | B) Agitator Control Valve – Fits 12A, 72, SP 200, SP 300, 12 A Dual, 72 Dual, CrackPro, bulk tanks, all air system tanks, SandPumper 1 1/2” tanks | 9 lbs. |
| P472A005 | B) FWD/REV Valve – fits 12A, SP 200, SP 200 Dual | 9 lbs. |
| P472A011 | B) Agitator Control Valve – fits SP 200 Dual, SP 300 Dual, SandPumper II tanks | 7 lbs. |
| P472A012 | B) Squeegee Assembly lift valve – fits SP 200 Dual, SP 300 Dual | 12 lbs. |
| P472A021 | C) 2-Bank Valve SP 300 Econoline | 21 lbs. |
| P472A022 | C) 2-Bank Valve SP 300 Dual | 21 lbs. |
| P472A019 | D) 3-Bank Valve SP 575 Econoline & SP 300 | 26 lbs. |
| P472A027 | D) 3-Bank Valve SP 575 Dual & SP 300 Dual | 26 lbs. |
Little Wonder Parts
Parts fit both old and new units.
| Product # | Description | Little Wonder Part # | Weight | |
|---|---|---|---|---|
|
||||
| P151A076 | 10” Front Wheel | 4164205 | 4 lbs. | |
| P151A077 | 10” Rear Wheel | 4165974 | 4 lbs. | |
| P151A078 | 12” Rear Wheel | 4164204 | 5 lbs. | |
 |
||||
| P151A079 | Throttle Cable – Honda | 4166170-01 | 1 lb. | |
| P151A080 | Throttle Cable – Subaru | 4166170-02 | 1 lb. | |
|
||||
| P151A081 | Front Wheel Bracket | 4165178.7 | 3 lbs. | |
Manhole Covers
| Product # | Description | Weight | |
|---|---|---|---|
 |
|||
| P639A013 | Manhole – Coped – 300 Gal. Tank | 45 lbs. | |
| P639A014 | Manhole – Coped – 575 Gal. Tank | 45 lbs. | |
| P639A015 | Manhole – Coped – 750 Gal. Tank | 45 lbs. | |
| P639A016 | Manhole – Coped – 1000 Gal. Tank | 45 lbs. | |
 |
|||
| P639B005 | Lid Manhole w/Vent – Drip Edge | 25 lbs. | |
 |
|||
| P639B004 | Retaining Ring w/Splash Guard & Vent Hole | 5 lbs. | |
 |
|||
| P639A009 | Gasket – Manhole Low Temp. | 2 lbs. | |
| P639R009 | Gasket – Manhole – Rubber | 2 lbs. | |
 |
|||
| P639A006 | Latch & Hardware 1607-09- | 5 lbs. | |
Material Discharge Valves
Molasses Valve
| Product # | Description | Weight | |
|---|---|---|---|
| P585A002 | 3” Molasses Valve | 8 lbs. | |
| P586A | 2” Molasses Valve | 5 lbs. | |
| P585B000 | 2” Molasses Valve (long handle) (SM-30) | 5 lbs. | |
| P585A004 | 1 1/2” Molasses Valve (long handle) (SM-10) | 5 lbs. | |
Butterfly Valve
| Product # | Description | Weight | |
|---|---|---|---|
| P398A009 | 3” Butterfly Valve | 15 lbs. | |
| P398L009 | 3” Butterfly Valve – Left – SP Machine | 15 lbs. | |
| P398R009 | 3” Butterfly Valve – Right – SP Machine | 15 lbs. | |
Material Pumps
Roper 3617
| Product # | Description | Weight | |
|---|---|---|---|
| P640A071 | Steel Gear, 2″ | 91 lbs. | |
| P640A084 | Steel Gear 2″ – Some Tack Coats | 91 lbs. | |
Bowie 2400, 3300, 3400
| Product # | Description | Weight |
|---|---|---|
| P640A030 | Steel Gear, 2″ (2400) | 150 lbs. |
| P640A005 | Rubber Gear, 2″ (2400) | 150 lbs. |
| P640A059 | Steel Gear, 3″ (3300) | 150 lbs. |
| P640A025 | Steel Gear, 3″ (3400) | 150 lbs. |
| P640A066 | Rubber Gear, 3″ (3300) | 150 lbs. |
| P640A010 | Rubber Gear, 3″ (3400) | 150 lbs. |
ARO Diaphragm Pumps
| Product # | Description | Weight |
|---|---|---|
| P640A060 | ARO PD10A – 1″ outlet | 28 lbs. |
| P640A061 | ARO PD15A – 1.5″ outlet | 60 lbs. |
| P640A068 | ARO PD20A – 2″ outlet | 90 lbs. |
| P640A069 | ARO PD30A – 3″ outlet (Must ship LTL) | 150 lbs. |
Sandpumper II Hyd Dual Diaphragm
| Product # | Description | Weight |
|---|---|---|
| P640A024 | 2” outlet | 195 lbs. |
ARO Assembly
| Product # | Description | Weight |
|---|---|---|
| P72000A002 | ARO 1 1/2″ Pump Assembly | 70 lbs. |
| P72000D002 | ARO 2″ Pump Assembly | 150 lbs. |
Material Pump Rebuild Kits
| Product # | Description | Weight |
|---|---|---|
| P972A038 | Graco 2150 2” – Air Valve | 3 lbs. |
| P972A039 | Graco 2150 2” – Pump | 3 lbs. |
| P971A038 | Graco 1590 1 1/2” – Air Valve | 3 lbs. |
| P971A039 | Graco1590 1 1/2” – Pump | 3 lbs. |
| P970A038 | Graco 1040 1” – Air Valve | 3 lbs. |
| P970A039 | Graco 1040 1” – Pump | 3 lbs. |
| P741A047 | Bowie – Model 400 series | 7 lbs. |
| P967A066 | Wilden M-2 | 2 lbs. |
| P967A065 | Wilden M-4 | 4 lbs. |
| P969A031 | Wilden M-8 | 7 lbs. |
| P966A077 | SandPumper 1.5” material rebuild kit | 9 lbs. |
| P966A076 | SandPumper 1.5” hydraulic rebuild kit | 2 lbs. |
| P966A090 | SandPumper II rebuild kit | 11 lbs. |
| P966B090 | SandPumper II material rebuild kit w/o seats | 11 lbs. |
| P975A059 | ARO 1” – Pump | 2 lbs. |
| P976A059 | ARO 1 1/2” – Pump | 3 lbs. |
| P977A059 | ARO 2” – Pump | 5 lbs. |
| P975A060 | ARO 1” – Air Valve Kit | 1 lb. |
| P976A058 | ARO 1 1/2” – Air Valve Kit | 1 lb. |
| P977A058 | ARO 2” – Air Valve Kit – A Style | 1 lb. |
| P977B058 | ARO 2” – Air Valve Kit (2010 to present) – B style | 1 lb. |
| P978A001 | ARO 3” – Pump Kit (Does not include seats) | 8 lbs. |
| P978A002 | Seats – 3” ARO (QTY. 4 Per Pump) | 1 lb. |
Rear Wheel Drive Motors
Rear Wheel Drive Motor
| Product # | Description | Weight | |
|---|---|---|---|
 |
|||
| P578A006 | Hub & Bearing Assembly | 25 lbs. | |
 |
|||
| P474A018 | (Left) Hyd. Motor Rear Wheel Drive | 30 lbs. | |
| P474A019 | (Right) Hyd. Motor Rear Wheel Drive | 30 lbs. | |
 |
|||
| P578A014 | Hub-Tapered SP 575 – Front | 9 lbs. | |
| P474A079 | Drive Motor SP 575 – Front | 75 lbs. | |
 |
|||
| P474A080 | Drive Motor – Rear – Left – SP 575 | 75 lbs. | |
| P474A081 | Drive Motor – Rear – Right – SP 575 | 75 lbs. | |
| P474A082 | Drive Motor – Rear – Right – SP 300 | 75 lbs. | |
| P474A083 | Drive Motor – Rear – Left – SP 300 | 75 lbs. | |
| P474A066 | Wheel Drive – Gear Unit – Front SP 575 | 75 lbs. | |
 |
|||
| P474A068 | Wheel Drive – Gear Unit – All SP’s Rear | 75 lbs. | |
 |
|||
| P474B048 | Hyd Motor & Hub Assembly SP 300 Rear Wheel Drive | 66 lbs. | |
 |
|||
| P474A059 | Hyd Motor & Hub Assembly SP 575 Rear Wheel Drive | 67 lbs. | |
 |
|||
| P474A060 | Fits SP 575 Front Drive | 64 lbs. | |
| P474A022 | (Specify L or R) – fits SP 300, SP 300 Dual, 72, 72 Dual before 1998 | 61 lbs. | |
| P474A020 | (Specify L or R) – fits SP 200, SP 200 Dual, 12A, 12A Dual | 31 lbs. | |
Material Pump Drive Motor
| Product # | Description | Weight |
|---|---|---|
| P474A087 | Fits bulk storage tanks w/Roper | 18 lbs. |
| P474A089 | CrackPro – Roper / 3″ Bowie | 21 lbs. |
Sealer Discharge / Suction Hose
| Product # | Description | Weight | |
|---|---|---|---|
| P482A001 | 2” x 15’ hose w/fittings | 30 lbs. | |
| P482A000 | 2” hose by the foot (no fittings) | 3 lbs./ft. | |
| P477A030 | 3/4” male quick disconnect | 1 lb. | |
| P477A031 | 3/4” female quick disconnect | 2 lbs. | |
| P477A010 | 2” male quick disconnect fitting | 2 lbs. | |
| P477A009 | 2” female quick disconnect fitting | 3 lbs. | |
| P482A002 | 3”x20’ hose w/fittings | 3 lbs. | |
| P482A002 | 3”x20’ hose w/fittings | 30 lbs.* | |
| *Oversized parts must ship at 30 lb. rate. | |||
Seat
| Product # | Description | Weight | |
|---|---|---|---|
| P602A003 | Seat | 30 lbs.* | |
| *Oversized parts must ship at 30 lb. rate. | |||
Spray Hoses & Wand
Hose with Fittings (wand sold separately)
| Product # | Description | Weight |
|---|---|---|
| P754B025 | 3/4” x 50’ | 15 lbs. |
| P754B026 | 3/4” x 75’ | 21 lbs. |
| P754B027 | 3/4” x 100’ | 28 lbs. |
Spray Wand with Ball Valve & Spray Tip
| Product # | Description | Weight |
|---|---|---|
| P50273B | Spray wand with ball valve & spray tip | 30 lbs. |
Replacement Ball Valve for Spray Wand
| Product # | Description | Weight |
|---|---|---|
| P397A010 | 3/4” carbon steel | 3 lbs. |
Sprockets
| Product # | Description | Weight | |
|---|---|---|---|
 |
|||
| P428A003 | 60B60 – 2” Bore – 4,000 & 6,000 gal bulk tanks | 26 lbs. | |
| P428A002 | 60B13 – 1” Bore – on bulk tanks | 3 lbs. | |
| P428A011 | 60B60 – 1 1/4” Bore – on bulk tanks | 23 lbs. | |
| P428A012 | 60B13 – 1 1/4” Bore – on bulk tanks | 3 lbs. | |
| P429A014 | 80R60 -10,000 gallon bulk tanks | 50 lbs. | |
| P740A012 | Bushings – R1 x 2 15/16 for 80R60 and 80R96 | 8 lbs. | |
| P429A006 | 80B12 – 1” Bore – 10,000 gallon bulk tank | 5 lbs. | |
| P429A020 | 80R96 – HD Bulk Tanks | 125 lbs. | |
| P429A019 | 80B60 – 1 1/2” Bore – 10,000 gallon bulk tanks | 50 lbs. | |
| P429A018 | 80B12 – 1 1/2” Bore – 10,000 gallon bulk tanks | 5 lbs. | |
| P429A017 | 80B12 – 1 1/4” Bore – HD Bulk Tanks | 5 lbs. | |
Squeegee Rubber
Neoprene
| Product # | Description | Weight |
|---|---|---|
| P459A028 | 3/8” x 5” x 50 ft. | 56 lbs. |
| P459A004 | 3/8” x 6” x 50 ft. | 66 lbs. |
| P459A002 | 3/8” x 5” x 72” | 8 lbs. |
| P459A003 | 3/8” x 6” x 90” | 12 lbs. |
| P459A006 | 1/2” x 5” x 70” | 10 lbs. |
| P459A007 | 1/2” x 5” x 72” | 10 lbs. |
| P459A008 | 1/2” x 6” x 50” | 9 lbs. |
| P459A009 | 1/2” x 6” x 90” | 14 lbs. |
| P459A019 | 1/2” x 20” x 20” | 11 lbs. |
| P459A025 | 1/2” x 5” x 50 ft. | 76 lbs. |
| P459A026 | 1/2” x 6” x 50 ft. | 87 lbs. |
| P459A023 | 1/2” x 6” x 74” | 14 lbs. |
| P459A024 | 1/2” x 6” x 94” | 17 lbs. |
| P459A033 | 1/2” x 6” x 106” | 15 lbs. |
| P459A034 | 3/8” x 6” x 94” | 10 lbs. |
| P459A035 | 3/8” x 6” x 74” | 9 lbs. |
| P459A041 | 1/2” x 6” x 84” | 10 lbs. |
Agitator Neoprene Rubber
| Product # | Description | Weight |
|---|---|---|
| P459A017 | 1/2” x 5” x 32” – 300 Tanks/SP-300 | 6 lbs. |
| P459A013 | 1/2” x 5” x 29” – 575/750/1000 Tanks – SP 575 |
6 lbs. |
| P459A022 | 1/2” x 5” x 38” – 1500 Tanks | 8 lbs. |
| P459A046 | 1/2” x 5” x 52” – 2000 Tanks | 10 lbs. |
| P459A047 | 1/2” x 6” x 101 1/2” – 6,000 Tanks | 18 lbs. |
| P459A048 | 1/2” x 6” x 122 1/2” – 10,000 Tanks | 23 lbs. |
Tan Gum
 |
|||
| Product # | Description | Weight | |
|---|---|---|---|
| P956A010 | 1/2” x 5” x 70” | 8 lbs. | |
| P956A012 | 1/2” x 6” x 90” | 12 lbs. | |
| P956A014 | 1/2” x 5” x 110” | 15 lbs. | |
| P956A008 | 1/2” x 6” x 50 ft. | 80 lbs. | |
| P956A009 | 1/2” x 5” x 50 ft. | 64 lbs. | |
Squeegee Kits
| Product # | Description | Weight |
|---|---|---|
| P459A029 | For SP300/SP300 Dual/SP575/SP575 Dual consists of: (1) – 1/2” x 6” x 74” Neoprene, (2) – 1/2” x 6” x 94” Neoprene |
32 lbs. |
| P459A030 | For SP200/SP200 Dual consists of: (1) – 3/8 x 6 x 70 Neoprene, (1) – 3/8 x 6 x 63 Neoprene, (1) – 3/8 x 6 x 75 Neoprene |
30 lbs. |
| P459A031 | For 12-A, 12-A Dual consists of: (2) – 1/2 x 5 x 70 Neoprene (1) – 1/2 x 5 x 70 Tan Gum |
30 lbs. |
| P459A032 | For 72, 72 Dual consists of: (2) – 1/2 x 6 x 90 Neoprene (1) – 1/2 x 6 x 90 Tan Gum |
32 lbs. |
Surge Tanks
Large
| Product # | Description | Weight |
|---|---|---|
| P30003F | Large Tank w/ 1 1/2” male thread | 17 lbs. |
| P30003D | Large Tank w/ 2” male thread | 17 lbs. |
| P30003G | Large Tank w/ 3” male threaded nipple | 20 lbs. |
| P30003H | Large Tank w/ 4” male threaded nipple | 22 lbs. |
Small
 |
|||
| Product # | Description | Weight | |
|---|---|---|---|
| P30003E | SandPup, M-2 3/4” female thread | 4 lbs. | |
Swivel Disc Applicators
Available for CrackPro wands
| Product # | Description | Weight | |
|---|---|---|---|
 |
|||
| P163A015 | A) Guard-Duck Bill | 1 lb. | |
| P163A011 | B) Duck Bill Valve | 1 lb. | |
| P470A002 | C) Swivel Disc Only – 3” | 2 lbs. | |
| P470A003 | Swivel Disc Only – 2” | 3 lbs. | |
| P470A007 | Swivel Disc Only – 5” | 3 lbs. | |
 |
|||
| P470A001 | Swivel Disc Applicator | 3 lbs. | |
| P470A004 | Aluminum Body and Cap | 2 lbs. | |
Thermometers
| Product # | Description | Weight | |
|---|---|---|---|
 |
|||
| P659A001 | B) 2 1/2” top mount | 2 lbs. | |
| P659A004 | A) 12” side mount | 2 lbs. | |
| P659A010 | B) 12” top mount | 2 lbs. | |
| P659A009 | A) Thermometer – 18” side mount | 3 lbs. | |
| P659A008 | A) 24” side mount | 3 lbs. | |
| P659A005 | A) 36” side mount | 3 lbs. | |
| P679A005 | Thermocouple 34” | 2 lbs. | |
| P679A008 | Thermocouple 18” – hot oil jacket | 1 lb. | |
| P679A014 | Thermocouple 24″ | 2 lbs. | |
| P679A015 | Thermocouple 30″ | 2 lbs. | |
| P679A017 | Thermocouple 23″ | 2 lbs. | |
 |
|||
| P735A035 | Temperature Control (Propane) | 2 lbs. | |
| P735A043 | Temperature Control (Diesel) | 2 lbs. | |
| P735A061 | Temperature Control – CrackPro Heated Hose | 25 lbs. | |
 |
|||
| P679A006 | Thermopile | 1 lb. | |
Transmission
| Product # | Description | Weight | |
|---|---|---|---|
 |
|||
| P707A002 | Fits Model 72, 72 Dual, SP 300, SP 300 Dual before 1998 | 36 lbs. | |
 |
|||
| P707A012 | SP 300, SP 300 Dual – 2008 to present | 40 lbs. | |
| P707A011 | SP 575 Dual & Econoline | 69 lbs. | |
Towing Hitches
| Product # | Description | Weight | |
|---|---|---|---|
 |
|||
| P646A003 | Pintle Eye Coupler | 20 lbs. | |
 |
|||
| P553A008 | 2 5/16” Ball Hitch Coupler | 20 lbs. | |
Water Pumps
| Product # | Description | Weight | |
|---|---|---|---|
 |
|||
| P593A051 | North Star Electric – 12V, DC | 4 lbs. | |
 |
|||
| P471A001 | Hypro hydraulic | 28 lbs. | |
Kits
Air Regulator Kits
 |
|||
| Product # | Description | Weight | |
|---|---|---|---|
| P735A046 | Filter/Regulator – Short Kit (used with 1” pump) | 2 lbs. | |
| P735A047 | Filter/Regulator – Long Kit (used with 1 1/2” pump) | 3 lbs. | |
| P709C000 | Air Line | 1 lb./ft. | |
Electric Hose Reel Kit
 Click image to view larger. |
|||
| Product # | Description | Qty | |
|---|---|---|---|
| P72000E087 | (A) Bracket – Left | 1 | |
| P72000D087 | (A) Bracket – Right | 1 | |
| P901A002 | (B) Hose Reel-Electric | 1 | |
| P754B040 | (C) Hose Assy. | 1 | |
| P754C040 | (C) Hose Assy. 1000/1500 Gallon | 1 | |
| P914A003 | (D) Circuit Breaker 30 AMP | 1 | |
| P556A017 | (E) Wire 14 Ga.-Red (.75 ea.) |
10 ft. | |
| P555A003 | (F) Butt Connector 12-10 (3.00 ea.) | 2 | |
| P554A002 | (G) Terminal-Ring 1/4 | 1 | |
| P554A001 | (H) Terminal-Ring #10 | 1 | |
| P1010A009 | (I) Bushing Reducer 1″ x 3/4″ | 1 | |
| P1007A004 | (J) Street Elbow 90 Deg. 1″ | 1 | |
| P397A013 | (K) Ball Valve 1″ Brass | 1 | |
| P1000A016 | (L) Close Nipple 1″ | 1 | |
| P1014A017 | (M) Capscrew 3/8 x 1 (.50 ea.) |
4 | |
| P1017A003 | (N) Flatwasher 3/8″ (.25 ea.) |
8 | |
| P1018A003 | (O) Lockwasher (.25 ea.) |
4 | |
| P1020A004 | (P) Nut (.25 ea.) | 4 | |
| P901A016 | Elbow Swivel 1” | 1 | |
| P50251K | Electric Hose Reel Kit | 1 | |
Manual Hose Reel Kit
 Click image to view larger. |
|||
| Product # | Description | Qty | |
|---|---|---|---|
| P72000E087 | (A) Bracket – Left | 1 | |
| P72000D087 | (A) Bracket – Right | 1 | |
| P901A001 | (B) Hose Reel-Manual | 1 | |
| P1000A016 | (C) Close Nipple 1″ | 1 | |
| P397A013 | (D) Ball Valve 1″ | 1 | |
| P754B040 | (E) Hose Assy. 575/750 Gallon | 1 | |
| P754C040 | (C) Hose Assy. 1000/1500 Gallon | 1 | |
| P1014A017 | (F) Capscrew 3/8 x 1 (.50 ea.) |
4 | |
| P1017A003 | (G) Flatwasher 3/8″ (.25 ea.) |
8 | |
| P1018A003 | (H) Lockwasher (.25 ea.) |
4 | |
| P1020A004 | (I) Nut (.25 ea.) | 4 | |
| P901A016 | (J) Elbow Swivel 1″ | 1 | |
| P50250K | Kit Complete | 1 | |
Spray Bar Kit
  Click images to view larger. |
|||
| Product # | Description | Qty | |
|---|---|---|---|
| P50246AW | A) Manual Spray Bar Assembly & Weld | 1 | |
| P71000B001 | B) Spray Bar Bracket ($49.75 ea.) | 2 | |
| P1021A002 | C) Nut-Lock 1/2 (.50 ea.) | 4 | |
| P1017A005 | D) Washer-Plain USS 1/2 (.25 ea.) | 8 | |
| P1014A033 | E) Screw-Hexhd Capunc – 1/2 x 1.5 (.75 ea.) | 4 | |
| P397A002 | F) 2” Ball Valve-Brass | 1 | |
| P1007A007 | G) Elbow-90 St. Pipe Sch 40 2” | 1 | |
| P477A001 | H) 2” Male Adaptor x Male NPT | 1 | |
| P482A007 | I) Hose-suction 2” x 3 ft. w/fitting | 1 | |
| P482B007 | Hose-suction 2” x 5 ft. w/fittings for truck mounts | 1 | |
| P72000B001 | J) Seat Assembly Complete | 1 | |
| P1014A018 | K) Screw-Hexhd UNC-3/8” x 1 1/4” (.50 ea.) | 4 | |
| P1017A003 | L) Washer-Plain USS 3/8 (.25 ea.) | 4 | |
| P1021A001 | M) 3/8” Locknut (3/8”-16 Nylock) (.25 ea.) | 4 | |
| P602A003 | N) Seat | 1 | |
| P1018A002 | O) Wash-Split Lock 5/16 (.25 ea.) | 4 | |
| P1014A009 | P) Screw Hexhd UNC – 5/16” x 1” (.50 ea.) | 4 | |
| P50246MK | Spray Bar Option/Kit (without Lever) | 1 | |
| P50247LK | Q) Lever – Manual spray bar kit | 1 | |
| P1017A002 | Flat Washer 5/16 (.25 ea.) | 4 | |
Air Spray Bar Conversion Kit
 Click image to view larger. |
|||
| Product # | Description | Qty | |
|---|---|---|---|
| P50246AAW | 1) Spray Bar Assy | 1 | |
| P482A007 | 2) Discharge Hose – Trailer | 1 | |
| P482B007 | 3) Discharge Hose – Truck | 1 | |
| P71000B001 | 4) Spray Bar Bracket ($49.75 ea.) | 2 | |
| P717E000 | 5) Air Line 3/8″ ($3.75/ft.) | 20 ft. | |
| P600A025 | 6) Valve-Air | 1 | |
| P751A002 | 7) Hose Ends 3/8″ x 1/4″ ($3.25 ea.) | 4 | |
| P600A027 | 8) Air Muffler | 2 | |
| P735A023 | 9) Regulator w/Gauge | 1 | |
| P735A027 | 10) Gauge-Regulator | 1 | |
| P560A055 | 11) Air Fitting-Red. Elbow | 1 | |
| P560A045 | 12) Air FItting – St. Elbow | 1 | |
| P461A001 | 13) Fuse Holder | 1 | |
| P443A004 | 14) Toggle Boot | 1 | |
| P443A001 | 15) Toggle Switch | 1 | |
| P556A017 | 16) Wire-Red-Power | 20 ft. | |
| P556A015 | 17) Wire-Green-Ground | 2 ft. | |
| P555A001 | 18) Wire Connector | 4 | |
| P491A003 | 19) Wire Ftg. Female | 1 | |
| P491A001 | 20) Wire Ftg. Female | 1 | |
| P554A001 | 21) Ring Terminal | 2 | |
| P1023A002 | 22) Hose Clamp | 4 | |
| P1054A001 | 23) Capscrew 1/2″ x 3″ | 4 | |
| P1017A005 | 24) Flat Washer 1/2″ | 8 | |
| P1021A002 | 25) Locknut 1/2″ | 4 | |
| P560A016 | 26) Hyd. Elbow | 1 | |
| P560A025 | 27) Hyd. Tee | 1 | |
| P397A009 | 29) Ball Valve – 1/2″ | 1 | |
| P709C000 | 30) Air Line | 8 ft. | |
| P560A006 | Hydraulic Fitting | 1 | |
| P50246K | Air Spray Bar Conversion Kit | 1 | |
Generator Conversion Kit
 Click image to view larger. |
|||
| Product # | Description | Qty | |
|---|---|---|---|
| P695A005 | A) Generator with Pulley | 1 | |
| P747A001 | B) Polyloom 3/8” ($1.75/ft.) | 2 ft. | |
| P716A000 | C) Fuel Line 5/16” ($2.75/ft.) | 3 ft. | |
| P556A017 | D) Wire – Red – 14 gal. ($1.00 ft.) | 2 ft. | |
| P555A001 | E) Electrical Connector ($1.75 ea.) | 5 | |
| P1014A011 | F) Capscrew 5/16” x 1 1/2” | 1 | |
| P1014A009 | G) Capscrew 5/16” x 1” | 1 | |
| P1021A005 | H) Lock Nut 5/16” ($.25 ea.) | 2 | |
| P1017A002 | I) Flat Washer 5/16” ($.25 ea.) | 4 | |
| P1014A001 | J) Capscrew 1/4” x 1” ($.25 ea.) | 2 | |
| P1021A006 | K) Lock Nut 1/4” ($.25 ea.) | 2 | |
| P1017A001 | L) Flat Washer 1/4” ($.25 ea.) | 4 | |
| P1014A019 | M) Capscrew 3/8” x 1 1/2” ($.75 ea.) | 2 | |
| P1017A003 | N) Flat Washer 3/8” ($.25 ea.) | 4 | |
| P1021A001 | O) Lock Nut 3/8” ($.25 ea.) | 2 | |
| Crack Pro with Air P660A049 |
P) V-Belt ($26.50 ea.) | 2 | |
| Crack Pro without Air P660A041 |
P) V-Belt ($16.75 ea.) | 2 | |
| P695B005 | Generator Conversion Kit | 1 | |
Spray Bar Kit/Tack Coat
Spray Bar comes with 1/4″ 80/20 Spray Tips
 Click image to view larger. |
|||
| Product # | Description | Qty | |
|---|---|---|---|
| P50246TAW | A) Manual Spray Bar Assy. – Hot Tack | 1 | |
| P50246LT | B) Spray Bar Assy. w/Lever Option – Hot Tack |
1 | |
| P482A017 | C) Suction Hose Assy. 1 1/4” | 1 | |
| P397A012 | D) Brass Ball Valve – 1 1/4” | 1 | |
| P71000B001 | E) Spray Bar Bracket | 2 | |
| P602A003 | F) Seat | 1 | |
| P72000B001 | G) Seat Bracket Assy. | 1 | |
| P1014A009 | H) Screw-HEXHD. UNC – 5/16” x 1” | 4 | |
| P1017A003 | I) Washer-Plain USS 3/8” | 4 | |
| P1018A002 | J) Washer-Split Lock 5/16” | 4 | |
| P1014A033 | K) Screw-HEXHD.-Cap UNC- 1/2”x1.5” | 4 | |
| P1021A002 | L) Nut Lock 1/2” | 4 | |
| P1014A018 | M) Screw-HEXHD.-UNC- 3/8”x1 1/4” | 4 | |
| P1021A001 | N) Nut-Lock 3/8”-16 Nylock | 4 | |
| P1017A005 | O) Washer-Plain USS 1/2” | 8 | |
| P50246TK | Spray Bar Kit – Tack Coat (without lever) | 1 | |
Water System Kit Complete
 Click image to view larger. |
|||
| Product # | Description | Qty | |
|---|---|---|---|
| P596A002 | Water Tank – Plastic – 50 Gallon | 1 | |
| P1009A009 | Reducing Tee 1/2” x 3/4” x 3/4” | 1 | |
| P1000A010 | 3/4” Close Nipple – Nylon | 1 | |
| P1012A002 | 1/2” N.P.T Hose Adapter – Steel | 1 | |
| P1012A003 | 3/4” N.P.T Hose Adapter – Steel | 2 | |
| P398A003 | 3/4” N.P.T. Check Valve – Brass | 1 | |
| P397A001 | 3/4” N.P.T. Ball Valve – Brass | 1 | |
| P1000A010 | 3/4” N.P.T. Close Nipple Sch. 40 | 2 | |
| P713F000 | 3/4” Low Pressure Hose | 10 FT. | |
| P1023A004 | Worm Gear Clamp #12 | 2 | |
| P723E000 | 1/2” Low Pressure Hose | 2 FT. | |
| P1023A002 | Worm Gear Clamp #6 | 2 | |
| P593A051 | Water Pump 12V DC | 1 | |
| P593A028 | In Line Strainer | 1 | |
| P443A001 | Toggle Switch – Two Pole | 1 | |
| P554A001 | Terminal – Eye | 3 | |
| P556A017 | Wire 14 GA. GXL Red | 4 FT. | |
| P555A002 | Butt Connector | 2 | |
| P50330A001 | Tank Strap | 2 | |
| P1008B012 | Plug – 1 1/2” PVC – Vented | 1 | |
| P595A008 | ATC Fuse – 10 AMP – Red | 1 | |
| P461A006 | Fuse Holder – ATC | 1 | |
| P443A004 | Toggle Boot | 1 | |
| P50330K | Water System Kit Complete | 1 | |
Agitation Drive Kit
 |
|||
| 1 | P458A022 | Engine – Honda 5.5 HP | 1 |
| 2 | P604A018 | Pump Mount | 1 |
| 3 | P601A041 | Hyd. Pump | 1 |
| 4 | P72000B013 | Bracket – Hyd. Valve | 1 |
| 5 | P472A016 | Hyd. Valve | 1 |
| 6 | P474A088 | Hyd. Motor | 1 |
| 7 | P599A003 | Hyd. Tank | 1 |
| 8 | P426A011 | Sprocket 40B30 1 1/2” Bore | 1 |
| 9 | P426A001 | Sprocket 40B15 1″ Bore | 1 |
| 10 | P1038A000 | Single Strand Roller #40 | 8 FT. |
| 11 | P630A035 | Jaw Coupler L095 x 3/4 x 3/16 | 1 |
| 12 | P630A045 | Jaw Coupler L095 x 1/2 x 1/8 | 1 |
| 13 | P631A005 | Hytrel Insert | 1 |
| 14 | P1035A001 | Master Link #40 | 1 |
| 15 | P713F000 | Hose – Low Pressure 3/4″ | 6 FT. |
| 16 | P702B030 | Hyd. H.P. Hose x 30″ | 1 |
| 17 | P702B032 | Hyd. H.P. Hose x 32″ | 2 |
| 19 | P713E007.5 | 3/4″ Black Hose x 7 1/2″ | 1 |
| 20 | P50000A005 | Upper Chain Guard | 1 |
| 21 | P50000A006 | Lower Chain Guard | 1 |
| 22 | P408A004 | Tank Filter | 1 |
| 23 | P1010A009 | Bushing Reducer (1″ x 3/4″) | 1 |
| 24 | P751A020 | Hose Adaptor 3/4 x 3/4 900 | 3 |
| 25 | P751A003 | Hose Adaptor 3/4 Hose x 1/2 Thread | 1 |
| 26 | P1023A004 | Hose Clamp #12 | 4 |
| 27 | P560A016 | Hyd. FTG 90° St. Elbow 1/2″ x 1/2″ | 1 |
| 28 | P560A080 | Hyd. FTG 90° JIC to Pipe 08-12 | 1 |
| 29 | P569A005 | Hyd. FTG 1/2 MJIC 3/8 ADJ O-Ring 90° | 1 |
| 30 | P570A008 | Hyd. FTG 1/2 x 1/2 O-Ring | 1 |
| 31 | P1050A006 | Tank Breather Cap | 1 |
| 33 | P565A004 | Hyd. FTG. | 2 |
| 34 | P567A013 | Hyd. Fitting 3/8 Hose 1/2″ NPT | 2 |
| 35 | P50000A002 | Motor Mount | 1 |
| A | P50340HK001 | Hardware Kit Engine Hold Down | 1 |
| B | P50340HK002 | Hardware Kit Hyd. Tank Hold Down | 1 |
| C | P50340HK003 | Hardware Kit Hyd. Pump to Pump Mount | 1 |
| D | P50340HK004 | Hardware Kit Pump Mount to Engine | 1 |
| E | P50340HK005 | Hardware Kit Valve to Valve Mount | 1 |
| F | P50340HK006 | Hardware Kit Both Guards | 2 |
| P50340C | Agitation Kit Complete | 1 | |
Parts Listing By Machine
Crack Filling/Sealing Equipment
E1620 SandPup
| Part Number | Description |
|---|---|
| P458A045 | 5 HP Honda Compressor |
| P640A060 | 1″ Aro Pump |
| P709C000 | 1/2″ x 18″ Air Hose |
| P735A046 | Short Filter/Regulator |
| P397A001 | 3/4″ Ball Valve |
| P477A018 | 1″ M/M Hose Coupler |
| P1000A010 | 3/4″ Nipple-Close |
| P1000A011 | 3/4″ x 2″ Nipple |
| P1000A016 | 1″ Nipple-Close |
| P1000A018 | 1″ x 3″ Nipple |
| P1003A002 | 3/4″ Elbow 90 |
| P1009A001 | 1″ x 3/4″ x 3/4″ Reducer Tee |
| P560A046 | 1/2″ x 3/8″ Hyd Fitting |
| P30003E | 3/4″ F NPT Surge Tank-Small |
| P50147B004 | Quart Basket Strainer |
| P71001A004 | 1/4″ x 7 1/2″ x 17 5/16″ Pump Mount |
| P3175A000 | Decal-Warning Pressure |
E1630 SandPup II
| Part Number | Description |
|---|---|
| P458A046 | Honda 8 HP Compressor |
| P640A061 | 1 1/2″ Aro Pump |
| P709C000 | 1/2″ x 60″ Air Hose |
| P735A047 | Filter/Regulator |
| P397A001 | 3/4″ Ball Valve |
| P477A018 | 1″ M QD-M NPT Hose Coupler |
| P1000A010 | 3/4″ Nipple-Close |
| P1000A011 | 3/4″ x 2″ Nipple |
| P1000A028 | 1 1/2″ Nipple-Close |
| P1003A002 | 3/4″ Elbow 90 |
| P1005A009 | 1 1/2″ Tee |
| P1010A023 | 1 1/2″ x 3/4″ Reducer |
| P30003E | 1 1/2″ Nipple Medium Surge Tank |
| P50147B002 | Basket Strainer Complete 1 Gallon |
| P70001C003 | 1 1/2″ Aro Pump Mount for 8 HP Compressor |
| 1/2″ x 64″ Air Line Tubing | |
| P3175A000 | Decal-Warning Pressure |
E2765HH CP-260 Diesel Compressor with Heated Hose
| Part Number | Description |
|---|---|
| P458A071 | Diesel Engine |
| P458B169 | KTR-42BIK37 7/8″ x 3/16″ HUB |
| P601A042 | Hydraulic Pump |
| P601A044 | Hydraulic Pump (OBSOLETE—REV. 11/20/12) |
| P660A036 | V-Belt |
| P695A001 | Generator |
| 3/4″ Hyd Hose-45 to M-Air Reel Feed – 21″ | |
| 1/2″ Hyd Hse-90 to F-Air Cooler Top – 63″ | |
| 1/2″ Hyd Hose-F to F-Air Cooler Bottom – 62″ | |
| 1/2″ Hyd Hose-F to F-Pump to Chasis – 46″ | |
| 3/4″ Suction Line-Pump Feed – 66 1/2″ |
Heated Asphalt Distributor
E1360 SK-1500 PRO-AIR
| Part Number | Description | |
|---|---|---|
| P434A004 | 2″ 4 Bolt Flange Bearing | |
| P639A001 | 18″ Manhole Cover-Complete | |
| P50137B006 | 2″ Bearing-Plate | |
| P50137B007 | 2″ Neoprene Seal-Bearing | |
| P50147B002 | 1 Gallon-Large Strainer Basket | |
| P397A002 | 2″ Ball Valve | |
| P1000A033 | 2″ Close Nipple | |
| P1000A036 | 2″ x 5″ Nipple | |
| P1000A043 | 2″ x 8″ Nipple | |
| P1000B003 | 1 1/4″ x 3″ Toe Nipple | |
| P1005A004 | 2″ Tee | |
| P1008A010 | 3″ Plug | |
| P1009A016 | 3″ x 3″ x 2″ Reducing Tee | |
| P1013A002 | 2″ Union | |
| P1054A003 | 1/2″ x 3″ All Thread Hex Bolt | |
| P1054A008 | 5/8″ x 3″ All Thread Hex Bolt | |
| P1020A005 | 1/2″ Nut | |
| P1020A006 | 5/8″ Nut | |
| P1021A014 | 5/8″ Locknut | |
| P428A001 | 1 1/4″ x 5/16″ Sprocket | |
| P428A003 | 2″ x 1/2″ Sprocket | |
| P472A004 | Hyd Valve | |
| P474A017 | 1 1/4″ x 5/16″ Key Hyd Motor | |
| P397A002 | 2″ Ball Valve | |
| P397A013 | 1″ Ball Valve | |
| P909A008 | Filter Head 1″ Thread | |
| P1000A033 | 2″ Nipple-Close | |
| P1003A002 | 3/4″ Elbow 90 | |
| P1003A006 | 1 1/4″ Elbow 90 | |
| P1006A006 | 2″ St. Elbow 45 | |
| P1007A003 | 3/4″ St. Elbow 90 | |
| P1008A003 | 3/4″ Plug | |
| P1008A006 | 2″ Plug | |
| P1012A003 | 3/4″ Hose Adaptor | |
| P1012A004 | 1″ Hose Adaptor | |
| P1012A005 | 1 1/4″ Hose Adaptor | |
| P560A017 | 3/4″ NPT Hyd Elbow St. 90 | |
| P560A042 | NPT 3/4″ M-1/2″ F Hyd Elbow Red St. 90 | |
| P560A050 | 1″ Hyd Close Nipple | |
| P560A052 | 1″ Hyd Elbow St. 90 | |
| P565A004 | 1/2″ M NPT-3/8 JIC Hyd Elbow 90 | |
| P1005A004 | 2″ Tee | |
| P1000A034 | 2″ x 3″ Nipple | |
| P1000A036 | 2″ x 5″ Nipple | |
| P397A002 | 2″ Ball Valve | |
| P1000A033 | 2″ Close Nipple | |
| P1013A002 | 2″ Union | |
| P72000A001 | Compressor/Pump Sub Assy w/ Bondioli Pump | |
| P464A002 | Gas Cap | |
| P466A001 | Battery-Small | |
| P475B006 | 42″ Battery Cable | |
| P475B007 | 53″ Battery Cable | |
| P477A001 | 2″ M QD/M NPT Hose Coupler | |
| P735A047 | Air Regulator | |
| P908A003 | Filter | |
| P562A005 | 1/2″ F JIC Hyd Hose End | |
| P563A003 | 1/2″ F JIC Hyd Hose End Elbow 90 | |
| P593A005 | 1/2″ F JIC Hyd Hose End Elbow 45 | |
| P564A002 | 1/2″ M NPT Hyd Fitting | |
| P1023A004 | #12 Hose Clamp | |
| P1023A005 | #20 Hose Clamp | |
| P1023A006 | #20 Hose Clamp | |
| P701A000 | 1/2″ x 56″ Hyd High Pressure Hose | |
| P701A000 | 1/2″ x 58″ Hyd High Pressure Hose | |
| P714A000 | 1 1/4″ x 44″ Low Pressure (Red) Hose | |
| Decals | ||
| A3200 | 16″ x 85″ SealMaster | |
| P3165A001 | Gas Fill | |
| P3160B003 | Exhaust Warning | |
| P3170A001 | Caution Valves | |
| P3165A002 | Hyd Oil Fill | |
| P3162A049 | SK-1500 Decal | |
| A2515 | 1-800- | |
| P3160B002 | Warning Moving Parts | |
| P3175A000 | Warning Pressure | |
| P3165A013 | Battery | |
| P3164B000 | Agitator | |
SprayMaster Tanks
E1340 SK-1000 PRO-AIR
| Part Number | Description |
|---|---|
| P434A004 | 2″ 4-Hole Flange Bearing |
| P639A001 | 18″ Manhole Complete |
| P50137B006 | 2″ Bearing Plate |
| P50137B007 | 2″ Seal-Neoprene |
| P428A003 | 60B60-2″ x 1/2″ Sprocket |
| P397A002 | 2″ Ball Valve, Brass |
| P477A001 | 2″ M QD / M NPT Hose Coupling |
| P1000A003 | 2″ Close Nipple |
| P1000A036 | 2″ x 5″ Nipple |
| P1000A037 | 2″ x 6″ Nipple |
| P1000B001 | 3/4″ x 3″ Toe Nipple |
| P1000B005 | 3″ x 4″ Toe Nipple |
| P1000B010 | 1 1/2″ x 3″ Toe Nipple |
| P1005A004 | 2″ Tee |
| P1006A006 | 2″ Elbow St. 45 |
| P10078A010 | 3″ Plug |
| P1009A016 | 3″ x 3″ x 2″ Reducer Tee |
| P1013A002 | Union Coupling |
| P50147B002 | 2″ Strainer Complete |
| P482A000 | 2″ x 9 1/2″ Hose, Transfer |
| P1023A008 | #36 Hose Clamp |
| P1054A008 | 5/8″ x 3″ All Thread Tap Bolt |
| P1021A014 | 5/8″ Nylock |
| P1054A003 | 1/2″ x 3″ All Thread Tap Bolt |
| P1020A005 | 1/2″ Nut |
| P428A001 | Sprocket |
| P472A004 | Hyd Valve |
| P474A017 | 1 1/4″ x 5/16″ Key Hyd Motor |
| P397A002 | 2″ Ball Valve |
| P397A013 | 1″ Ball Valve |
| P909A008 | 1″ Ports Filter Head |
| P1003A002 | 3/4″ Elbow 90 |
| P1003A006 | 1 1/4″ Elbow 90 |
| P1003A009 | 1 1/2″ Elbow 90 |
| P1007A003 | 3/4″ St. Elbow 90 |
| P1008A003 | 3/4″ Plug |
| P1010A007 | 3/4″ x 1/2″ Bushing Reducer |
| P1010A011 | 1 1/2″ x 1 1/4″ Bushing Reducer |
| P1012A003 | 3/4″ Hose Adaptor |
| P1012A004 | 1″ Hose Adaptor |
| P1012A005 | 1 1/4″ Hose Adaptor |
| P560A017 | 3/4″ Hyd St. Elbow 90 |
| P560A042 | 3/4″ MNPT-1/2″ FNPT Hyd Elbow Red St. 90 |
| P560A050 | 1″ NPT Hyd Close Nipple |
| P560A052 | 1″ NPT Hyd Elbow St. 90 |
| P565A004 | M 1/2″ NPT-3/8 JIC Hyd Elbow 90 |
| P640A061 | 1 1/2″ Aro Pump |
| P397A001 | 3/4″ Ball Valve |
| P397A002 | 2″ Ball Valve |
| P397A012 | 1 1/4″ Ball Valve |
| P477A001 | 2″ M QD/M NPT Hose Coupling |
| P1000A003 | 2″ Close Nipple |
| P1000A010 | 3/4″ Nipple-Close |
| P1000A022 | 1 1/4″ Nipple-Close |
| P1000A028 | 1 1/2″ Nipple-Close |
| P1000A030 | 1 1/2″ x 3″ Nipple |
| P1007A005 | 1 1/4″ Elbow St. 90 |
| P1007A006 | 1 1/2″ Elbow St. 90 |
| P1009A011 | 2″ x 1 1/4″ x 1 1/4″ Tee |
| P1010A014 | 2″ x 1 1/2″ Bushing Reducer |
| P1010A021 | 1 1/4″ x 3/4″ Bushing Reducer |
| P1012A005 | 1 1/4″ Hose Adapter |
| P1052A001 | 2″ Cross |
| P30003C | Medium Surge Tank |
| P1005A009 | 1 1/2″ Tee |
| P1008A009 | 1 1/2″ Plug |
| 1 3/4″ Bushing Reducer | |
| 2″ x 1 1/4″ x 1″ Reducer Tee | |
| Compressor/Pump Sub Assy | |
| P459B021 | Rubber Disc Feet |
| P464A002 | Gas Cap |
| P466A001 | Battery |
| P475B004 | 32″ Battery Cable |
| P475B005 | 38″ Battery Cable |
| P477A001 | 2″ M QD-M NPT Hose Coupler |
| P735A047 | Filter/Regulator Kit |
| P754B026 | Material Hose Sub Assembly |
| P908A003 | Small Hyd Filter |
| P1012A004 | 1″ Hose Adapter |
| P50273B | Material Wand Sub Assembly |
| P560A045 | Air Tube Fitting Elbow 90 |
| P560A055 | Air Tube Fitting Elbow 90 |
| P562A005 | 1/2″ F JIC Hyd Hose End Elbow 45 |
| P563A005 | 1/2″ F JIC Hyd Hose End |
| P567A006 | 1/2″ ORS-3/8 JIC Hyd Fitting-O-Ring |
| P570A015 | 3/4″ ORS-1″ F NPT Hyd Fitting-O-Ring |
| P560A052 | 1″ NPT Hyd Elbow St. 90 |
| P701A000 | 1/2″ x 38″ Hyd Hose, High Pressure |
| P701A000 | 1/2″ x 31″ Hyd Hose, High Pressure |
| P715B000 | 1″ x 26″ Hose, Transfer |
| P713A000 | 3/4″ x 30″ Hose, Low Pressure |
| P714A000 | 1 1/4″ x 25″ Hose, Low Pressure |
| 1/2″ x 226″ Tubing Air | |
| P1023A004 | #12 Hose Clamp |
| P1023A005 | #16 Hose Clamp |
| P1023A006 | #20 Hose Clamp |
E1370 SK-2000 PRO AIR
| Part Number | Description | |
|---|---|---|
| P434A004 | 2″ 4 Hole Flange Bearing | |
| P397A002 | 2″ Ball Valve | |
| P1000A033 | 2″ Close Nipple | |
| P1000A035 | 2″ x 4″ Nipple | |
| P1000A043 | 2″ x 8″ Nipple | |
| P1000B003 | 1 1/4″ x 3″ Toe Nipple | |
| P1005A004 | 2″ Tee | |
| P1008A010 | 3″ Plug | |
| P1009A016 | 3″ x 3″ x 2″ Reducing Tee | |
| P1013A002 | 2″ Union | |
| P639A001 | 18″ Manhole Cover-Complete | |
| P50137B007 | 2″ Neoprene Seal–Bearing | |
| P50137B006 | 2″ Bearing-Plate | |
| P50147B002 | 1 Gallon-Large Strainer Basket | |
| P1020A006 | 5/8″ Nut | |
| P1054A003 | 1/2 x 3″ All Thread | |
| P1020A005 | 1/2″ Nut | |
| P1054A008 | 5/8″ x 3″ All Thread | |
| P1021A014 | 5/8″ Locknut | |
| P428A003 | 2″ x 1/2″ Sprocket | |
| P428A012 | 1 1/4″ x 1/4″ Sprocket | |
| P472A004 | Hyd Valve | |
| P474A017 | 1 1/4″ x 5/16″ Key Hyd Motor | |
| P397A002 | 2″ Ball Valve | |
| P397A013 | 1″ Ball Valve | |
| P909A008 | Filter Head 1″ Thread | |
| P1000A033 | 2″ Nipple-Close | |
| P1000A034 | 2″ x 3″ Nipple | |
| P1000A036 | 2″ x 5″ Nipple | |
| P1003A002 | 3/4″ Elbow 90 | |
| P1003A006 | 1 1/4″ Elbow 90 | |
| P1005A004 | 2″ Tee | |
| P1006A006 | 2″ Elbow St. 45 | |
| P1007A003 | 3/4″ Elbow St. 90 | |
| P1008A003 | 3/4″ Plug | |
| P1008A006 | 2″ Plug | |
| P1010A022 | 1 1/4″ x 1″ Bushing Reducer | |
| P1012A003 | 3/4″ Hose Adaptor | |
| P1012A004 | 1″ Hose Adaptor | |
| P1012A005 | 1 1/4″ Hose Adaptor | |
| P1013A002 | 2″ Union | |
| P560A017 | Hyd Fitting | |
| P560A042 | Hyd Fitting | |
| P560A050 | 1″ Close Hyd Fitting | |
| P560A052 | 1″ 90-St. Elbow | |
| P565A004 | Hyd Fitting | |
| P72000A001 | Compressor/Pump Sub Assy w/ Bondioli Pump | |
| P464A002 | Gas Cap | |
| P466A001 | Battery | |
| P475B006 | 42″ Battery Cable | |
| P472B007 | 53″ Battery Cable | |
| P477A001 | Hose Coupler | |
| P735A047 | Air Regulator | |
| P754B026 | 3/4″ x 75 ft. Mat’l Hose Sub Assy | |
| P908A003 | Filter | |
| P50273B | Mat’l Wand | |
| P562A005 | 1/2″ F JIC Hyd Hose End | |
| P563A003 | 1/2″ F JIC Hyd Hose End Elbow 90 | |
| P563A005 | 1/2″ F JIC Hyd Hose End Elbow 45 | |
| P564A002 | 1/2″ M NPT Hyd Fitting | |
| P1023A004 | #12 Hose Clamp | |
| P1023A005 | #20 Hose Clamp | |
| P1023A006 | #20 Hose Clamp | |
| P701A000 | 1/2″ Hyd Hose (Lower) | |
| P701A000 | 1/2″ Hyd Hose (Upper) | |
| P701A000 | 1/2″ Hyd Hose (Valve Feed) | |
| P714A000 | 1 1/4″ Red Hose (Return) | |
| Decals | ||
| A3200 | 16″ x 85″ SealMaster | |
| P3165A001 | Gas Fill | |
| P3160B003 | Exhaust Warning | |
| P3170A001 | Caution Valves | |
| P3165A002 | Hyd Oil Fill | |
| P3162A080 | SK-2000 Decal | |
| A2515 | 1-800- | |
| P3160B002 | Warning Moving Parts | |
| P3175A0000 | Warning Pressure | |
| P3165A013 | Battery | |
| P3164B000 | Agitator | |
E1320 SK-575 PRO-AIR
| Part Number | Description | |
|---|---|---|
| P397A002 | 2″ Ball Valve | |
| P434A003 | 1 1/2″ Flange Bearing | |
| P639A001 | Manhole Cover-Complete 18″ | |
| P1000A033 | 2″ Close Nipple | |
| P1000A034 | 2″ x 3″ Nipple | |
| P1000A035 | 2″ x 4″ Nipple | |
| P1000A036 | 2″ x 5″ Nipple | |
| P1000A037 | 2″ x 6″ Nipple | |
| P1000B001 | 3/4″ x 3″ Toe Nipple | |
| P1000B003 | 1 1/4″ x 3″ Toe Nipple | |
| P1000B004 | 2″ x 3″ Toe Nipple | |
| P1005A004 | 2″ Tee | |
| P1006A006 | 2″ Elbow St. 45 | |
| P1013A002 | 2″ Union | |
| P1008A006 | 2″ Plug | |
| P50137B002 | Rubber Seal | |
| P50147B002 | Strainer Basket | |
| P1054A001 | 1/2″ x 3″ Bolt Hex Hd | |
| P1017A005 | 1/2″ Washer Flat | |
| P1020A005 | 1/2″ Nut Hex Std | |
| P1021A002 | 1/2″ Nut Hex Lock | |
| Mat’l Pump Sub Assembly | ||
| P472A016 | M-12 Hyd Control Valve | |
| P474A004 | 1″ Shaft Hyd Motor | |
| P498A008 | 1″ to 1 1/2″ Weldment Coupling | |
| P397A001 | 3/4″ Ball Valve | |
| P909A002 | 3/4″ Ports Filter Head-Small | |
| P1003A002 | 3/4″ Elbow 90 | |
| P1003A006 | 1 1/4″ Elbow 90 | |
| P1007A003 | 3/4″ Elbow St. 90 | |
| P1010A007 | 3/4″ x 1/2″ Bushing Reducer | |
| P1010A009 | 1″ x 3/4″ Bushing Reducer | |
| P1012A003 | 3/4″ Hose Adapter | |
| P1012A005 | 1 1/4″ Hose Adapter | |
| P560A009 | 3/4″ NPT Hyd Close Nipple | |
| P560A017 | 3/4″ NPT Hyd Elbow St. 90 | |
| P560A042 | 3/4″ M NPT x 1/2″ F NPT Hyd Elbow Red St. 90 | |
| P565A004 | 1/2″ M NPT x 3/8″ JIC Hyd Elbow 90 | |
| P567A009 | 1/2″ M NPT x 3/8″ JIC Hyd Elbow 45 | |
| P567A013 | M 1/2″ NPT x 3/8″ JIC Hyd Fitting | |
| P397A001 | 3/4″ Ball Valve-Brass | |
| P909A002 | 3/4″ Ports Filter Head, Small | |
| P1007A003 | 3/4″ Elbow St. 90 | |
| P1010A021 | 1 1/4″ x 3/4″ Bushing Reducer | |
| P1012A003 | 3/4″ Hose Adapter | |
| P560A009 | 3/4″ Hyd Close Nipple | |
| P640A061 | 1 1/2″ Pump-Aro | |
| P397A001 | 3/4″ Ball Valve | |
| P397A002 | 2″ Ball Valve | |
| P397A012 | 1 1/4″ Ball Valve | |
| P1000A003 | 2″ Nipple-Close | |
| P1000A010 | 3/4″ Nipple-Close | |
| P1000A022 | 1 1/4″ Nipple-Close | |
| P1000A028 | 1 1/2″ Nipple-Close | |
| P1000A030 | 1 1/2″ x 3″ Nipple | |
| P1000B010 | 1 1/2″ x 3″ Nipple-Toe | |
| P1005A009 | 1 1/2″ Tee | |
| P1007A003 | 3/4″ Elbow St. 90 | |
| P1007A005 | 1 1/4″ Elbow St. 90 | |
| P1007A006 | 1 1/2″ Elbow St. 90 | |
| P1008A009 | 1 1/2″ Plug | |
| P1009A023 | 2″ x 1 1/4″ x 1″ Reducer Tee | |
| P1010A009 | 1″ x 3/4″ Bushing Reducer | |
| P1010A014 | 2″ x 1″ x 1/2″ Bushing Reducer | |
| P1012A005 | 1 1/4″ Hose Adapter | |
| P1052A001 | 2″ Cross | |
| P30003C | Medium Surge Tank | |
| P458A044 | Compressor, 30 Gal Tank, 13 HP Honda Engine | |
| P458A023 | 13 HP Honda Engine, 1″ Shaft | |
| P601A041 | Hyd Pump | |
| P1012A003 | 3/4″ Hose Adapter | |
| P1001A007 | 3/4″ x 1/2″ Bell Reducer | |
| P1000A004 | 1/2″ Nipple-Close | |
| P72000A001 | Compressor/Hyd Pump Sub-Assembly | |
| P464A002 | Gas Cap | |
| P466A001 | Battery | |
| P475B004 | 33″ Battery Cable | |
| P475B006 | 42″ Battery Cable | |
| P477A001 | 2″ M QD/M NPT Hose Coupler | |
| P735A047 | Filter/Regulator | |
| P754B026 | 3/4″ x 75 ft. Mat’l Hose Sub Assy | |
| P908A003 | Oil Filter | |
| P50273B | Mat’l Wand | |
| P560A016 | 1/2″ NPT Hyd Elbow St. 90 | |
| P562A002 | 3/8″ F JIC Hyd Hose End | |
| P563A001 | 3/8″ F JIC Hyd Hose End Elbow 90 | |
| P563A007 | 3/8″ F JIC Hyd Hose End Elbow 45 | |
| P569A005 | 1/4 M ORS x 3/8 F JIC Hyd Elbow 90 | |
| P570A008 | 3/8 M ORS x 1/2 F NPT Hyd Fitting | |
| P751A003 | 3/4″ Hose x 1/2″ NPT Hose Adapter, Brass | |
| P702A000 | 3/8″ x 17″ F to F Hyd Hose, High Pressure | |
| P702A000 | 3/8″ x 18″ 90 to F Hyd Hose, High Pressure | |
| P702A000 | 3/8″ x 27″ 45 to F Hyd Hose, High Pressure | |
| P713A000 | 3/4″ x 28″ Hose, Low Pressure, Red | |
| P713D000 | 3/4″ x 23″ Hose, Suction | |
| P714A000 | 1 1/4″ x 28″ Hose, Low Pressure, Red | |
| 1/2″ Plastic Air Hose – 13′ | ||
| P1023A004 | #12 Hose Clamp | |
| P1023A007 | #24 Hose Clamp | |
| Decals | ||
| A3280 | 13 1/2″ x 38″ SM Tank Decal | |
| A2515 | 4″ x 18″ SM Decal | |
| P3175A000 | Warning Do Not Remove Under Pressure | |
| P3160B002 | Warning Moving Parts | |
| P3162A047 | SK-575 Decal | |
| P3170A001 | Caution Hyd Valve-Neutral Position | |
| P3165A002 | Hyd Oil Fill Decal | |
| P3165A003 | Water Fill Decal | |
| P3165A013 | Battery Decal | |
| P3164B000 | Rev-Agitator-Fwd | |
| P3164A004 | On Decal | |
| P3164A003 | Off Decal | |
| P3170A003 | Water Pump Decal | |
| P3165A001 | Gasoline Fill Decal | |
E1330 SK-750 PRO-AIR
| Part Number | Description | |
|---|---|---|
| P397A002 | 2″ Ball Valve | |
| P434A004 | 2″ 4 Hole Flange Bearing | |
| P639A001 | Manhole Cover-Complete 18″ | |
| P1000A033 | 2″ Close Nipple | |
| P1000A036 | 2″ x 5″ Nipple | |
| P1000A037 | 2″ x 6″ Nipple | |
| P1000B001 | 3/4″ x 3″ Toe Nipple | |
| P1000B003 | 1 1/4″ x 3″ Toe Nipple | |
| 3″ x 3″ Toe Nipple | ||
| P1003A002 | 3/4″ Elbow | |
| P1005A004 | 2″ Tee | |
| P1006A006 | 2″ Elbow St. 45 | |
| P1007A003 | 3/4″ Elbow St. 90 | |
| P1008A003 | 3/4″ Plug | |
| P1008A010 | 3″ Plug | |
| P1009A016 | 3″ x 3″ x 2″ Reducing Tee | |
| P1013A002 | 2″ Union | |
| P50137B006 | 2″ Bearing Plate | |
| P50137B007 | 2″ Neoprene Seal-Bearing | |
| P50147B002 | 1 Gallon-Large Strainer Basket | |
| P1054A003 | 1/2″ x 3″ All Thread Hex Bolt | |
| P1054A008 | 5/8″ x 3″ All Thread Hex Bolt | |
| P1020A005 | 1/2″ Nut | |
| P1020A006 | 5/8″ Nut | |
| P1021A014 | 5/8″ Locknut | |
| Pump Sub Assy | ||
| P397A0002 | 2″ Ball Valve | |
| P397A013 | 1″ Ball Valve | |
| P428A001 | 1 1/4″ x 5/16″ Sprocket | |
| P428A003 | 2″ x 1/2″ Sprocket | |
| P472A004 | Hyd Valve | |
| P474A017 | 1 1/4″ x 5/16″ Key Hyd Motor | |
| P909A008 | 1″ Thread Filter Head | |
| P1003A006 | 1 1/4″ Elbow 90 | |
| P1006A006 | 2″ Elbow St. 45 | |
| P1008A003 | 3/4″ Plug | |
| P1010A007 | 3/4″ x 1/2″ Bushing Reducer | |
| P1012A003 | 3/4″ Hose Adaptor | |
| P1012A004 | 1″ Hose Adaptor | |
| P1012A005 | 1 1/4″ Hose Adaptor | |
| P560A017 | 3/4″ NPT Hyd Elbow St. 90 | |
| P560A050 | 1″ NPT Hyd Close Nipple | |
| P560A052 | 1″ NPT Hyd Elbow St. 90 | |
| P565A004 | 1/2″ M NPT-3/8″ JIC Hyd Elbow 90 | |
| P567A009 | 1/2″ M NPT-3/8″ JIC Hyd Elbow 45 | |
| P72000A001 | Compressor/Pump Sub Assy w/ Bondioli Pump | |
| P601A014 | Hyd Pump | |
| P464A002 | Gas Cap | |
| P466A001 | Battery | |
| P475B007 | 53″ Battery Cable | |
| P475B006 | 42″ Battery Cable | |
| P735A047 | Air Regulator | |
| P754B026 | 3/4″ x 75 ft. Mat’l Hose Sub Assy | |
| P908A003 | Filter | |
| P1012A004 | 1″ Hose Adapter | |
| P50273B | Mat’l Wand | |
| P560A045 | 1/2″ NPT Air Tubing Fitting | |
| P560A052 | 1″ NPT Hyd Elbow St. 90 | |
| P560A055 | 1/4″ NPT Air Tubing Fitting | |
| P562A005 | 1/2″ F JIC Hyd Hose End | |
| P563A005 | 1/2″ F JIC Hyd Hose End Elbow 45 | |
| P565A004 | 1/2″ NPT x 3/8″ PF Hyd Fitting | |
| P567A006 | 1/2″ NPT x 3/8″ PF Hyd Fitting | |
| P567A009 | 1/2″ NPT x 3/8″ PF Hyd Fitting | |
| P570A015 | 1/2″ NPT x 3/4″ ORS Hyd Fitting | |
| P701A000 | 1/2″ Hyd Hose, High Pressure | |
| P709C000 | 1/2″ Air Tubing | |
| P714A000 | 1 1/4″ Hose, Low Pressure | |
| P715B000 | 1″ Hose | |
| P1023A006 | #20 Hose Clamp | |
| P1023A004 | #20 Hose Clamp | |
| Rubber Shock Pads | ||
| Decals | ||
| A3200 | 16″ x 85″ SealMaster | |
| P3165A001 | Gas Fill | |
| P3160B003 | Exhaust Warning | |
| P3170A001 | Caution Valves | |
| P3165A002 | Hyd Oil Fill | |
| P3162A049 | SK-1500 Decal | |
| A2515 | 1-800- | |
| P3160B002 | Warning Moving Parts | |
| P3175A000 | Warning Pressure | |
| P3165A013 | Battery | |
| P3164B000 | Agitator | |
E1550 SK-2000 MAXX-AIR
| Part Number | Description | |
|---|---|---|
| P434A004 | 2″ 4 Hole Flange Bearing | |
| P50137B007 | 2″ Neoprene Seal-Bearing | |
| P50137B006 | 2″ Bearing-Plate | |
| P397A002 | 2″ Ball Valve | |
| P1000A033 | 2″ Nipple-Close | |
| P1000A035 | 2″ x 4″ Nipple | |
| P1000A043 | 2″ x 8″ Nipple | |
| P1000B003 | 1 1/4″ x 3″ Toe Nipple | |
| P1000B005 | 3″ x 4″ Toe Nipple | |
| P1005A004 | 2″ Tee | |
| P1008A010 | 3″ Plug | |
| P1009A016 | 3″ x 2″ x 3″ Tee Reducer | |
| P1012A008 | Hose Adapters | |
| P1013A002 | 2″ Union | |
| P639A001 | Manhole Cover-Complete 18″ | |
| P1023A007 | #24 2″ Hose Clamp | |
| P50147B002 | 1 Gallon-Large Strainer Basket | |
| P1054A003 | 1/2″ x 3″ All Thread Hex Bolt | |
| P1020A005 | 1/2″ Nut | |
| P1054A008 | 5/8″ x 3″ All Thread Hex Bolt | |
| P1020A006 | 5/8″ Nut | |
| P1021A014 | 5/8″ Locknut | |
| P428A003 | 2″ x 1/2″ Sprocket | |
| P420A001 | 1 1/4″ x 5/16″ Sprocket | |
| P472A016 | Hyd Valve | |
| P474A017 | 1 1/4″ x 5/16″ Key Hyd Motor | |
| P397A002 | 2″ Ball Valve | |
| P397A013 | 1″ Ball Valve | |
| P909A008 | 1″ Thread Filter Head | |
| P1000A033 | 2″ Close Nipple | |
| P1000A034 | 2″ x 3″ Nipple | |
| P1000A036 | 2″ x 5″ Nipple | |
| P1003A002 | 3/4″ Elbow 90 | |
| P1003A006 | 1 1/4″ Elbow 90 | |
| P1005A004 | 2″ Tee | |
| P1006A006 | 2″ St. Elbow 45 | |
| P1007A003 | 3/4″ St. Elbow 90 | |
| P1008A003 | 3/4″ Plug | |
| P1008A006 | 2″ Plug | |
| P1010A022 | 1 1/4″ x 1″ Bushing Reducer | |
| P1012A003 | 3/4″ Hose Adaptor | |
| P1012A004 | 1″ Hose Adaptor | |
| P1012A005 | 1 1/4″ Hose Adaptor | |
| P1013A002 | 2″ Union | |
| P560A017 | Hyd Fitting | |
| P560A042 | Hyd Fitting | |
| P560A050 | 1″ Close Hyd Fitting | |
| P560A052 | 1″ 90 St. Elbow Hyd Fitting | |
| P565A004 | Hyd Fitting | |
| P458A013 | 20 HP Kohler Engine | |
| P458B026 | Ignition Switch | |
| P458A047 | Compressor w/o Engine-Maxx-Air | |
| P464A002 | Gas Cap | |
| P466A001 | Battery | |
| P475B007 | 53″ Battery Cable | |
| P488B | 9 ft. Push-Pull Control | |
| P488T | 9 ft. Locking Control | |
| P601A014 | Hydraulic Pump | |
| P631A002 | Chain-5016 | |
| P630A013 | 1 7/16″ x 3/8″ Chain Coupling-5016 | |
| P630A024 | 5/8″ x 5/32″ Chain Coupling-5016 | |
| P660A024 | V-Belt-B81-Rol-Air | |
| P661A022 | Sheave-2B36 SH | |
| P735A024 | 1/2″ Air Regulator | |
| P740A042 | SH – 1 7/16″ Bushing | |
| P902A016 | Muffler Kit Used with Rol-Air Compressor | |
| P908A003 | Filter | |
| P909A007 | 1/2″ Air Filter | |
| P50107K | Motor Bracket | |
| P397A009 | 1/2″ Ball Valve-Brass | |
| P1000A003 | 3/8″ x 6″ Nipple | |
| P1012A011 | 5/8″ Hose x 1/2″ NPT Hose Adapter, Brass | |
| P560A016 | Hyd Fitting | |
| P562A005 | Hyd Fitting | |
| P563A003 | Hyd Fitting | |
| P563A005 | Hyd Fitting | |
| P564A002 | Hyd Fitting | |
| P1050A012 | 1″ Air Tube Clamp | |
| OR P1050A014 | 3/4″ Air Tube Clamp | |
| P714A000 | 1 1/4″ x 44″ Red Hose Low Pressure | |
| P701A000 | 1/2″ x 56″ Hyd Hose High Pressure | |
| P701A000 | 1/2″ x 58″ Hyd Hose High Pressure | |
| P701A000 | 1/2″ x 43″ Hyd Hose High Pressure | |
| P1023A004 | #12 Hose Clamp | |
| P1023A005 | #16 Hose Clamp | |
| P1023A006 | #20 Hose Clamp | |
| Decals | ||
| A3200 | 16″ x 85″ SealMaster | |
| P3165A001 | Gas Fill | |
| P3160B003 | Exhaust Warning | |
| P3170A001 | Caution Valves | |
| P3165A002 | Hyd Oil Fill | |
| P3162A080 | SK-2000 Decal | |
| A2515 | 1-800- | |
| P3160B002 | Warning Moving Parts | |
| P3175A000 | Warning Pressure | |
| P3165A013 | Battery | |
| P3164B000 | Agitator | |
Sealcoating Equipment
E1020 SP-300 Econo
| Part Number | Description |
|---|---|
| P432A003 | Flange Bearings – 1 1/4″ – 2 Hole |
| P50137B009 | Seal Bearing Plate – 1 1/4”- 2 Hole |
| P474A004 | Steering Motor |
| P474A048 | Hyd. Drive Motor & Hub Assembly |
| P474A061 | Hyd Agitator Drive Motor |
| P476A004 | Inner Race-Bearing |
| P476A005 | Outer Race-Bearing |
| P495A001 | Throttle-Ball Joint |
| P574A002 | Tube |
| P576A007 | Tire |
| P577A010 | Rim-6 Hole |
| P577A011 | Rim-6 Hole |
| P577A004 | Rim-5 Hole |
| P693A003 | Cross Over Relief Valve 2HH |
| P1018A015 | 1/2″ C.S. Nordlock |
| P398A009 | 3” Butterfly Valve |
| P1000A008 | 1/2″ x 5″ Nipple |
| P1002B005 | 2″ Half Coupling |
| P1003A001 | 1/2″ Elbow 90 |
| P1003A003 | 3/4″ Elbow 90 |
| P1007A002 | 1/2″ Elbow St. 90 |
| P1007A003 | 3/4″ Elbow St. 90 |
| P1051A002 | 3″ Elbow, Weld-On |
| P1053A004 | 4″ Tee, Weld-On |
| P1014A006 | 1/4″ x 2 1/4″ Hex Bolt |
| P1014A010 | 5/16″ x 1 1/4″ Hex Bolt |
| P1014A015 | 5/16″ x 2 1/2″ Hex Bolt |
| P1014A019 | 3/8″ x 1 1/2″ Hex Bolt |
| P1014A067 | 1/2″ x 2″ Hex Bolt |
| P101fA067 | 1/2″ x 2 1/4″ Hex Bolt |
| P1014A046 | 5/8″ x 1 1/4″ Hex Bolt |
| P1017A001 | 1/4″ Washer, Flat |
| P1017A002 | 5/6″ Washer, Flat |
| P1017A003 | 3/8″ Washer, Flat |
| P1017A005 | 1/2″ Washer, Flat |
| P1017A008 | 3/4″ Washer, Flat |
| P1017A013 | 1 1/2″ Washer, Flat |
| P1018A005 | 1/2″ Washer, Lock |
| P1020A005 | 1/2″ Nut |
| P1021A001 | 3/8″ Locknut, Nylock |
| P1021A002 | 1/2″ Locknut, Nylock |
| P1021A006 | 1/4″ Locknut, Nylock |
| P1021A014 | 5/8″ Locknut, Nylock |
| P1055A006 | 1/2″ NF x 1″ Bolt – Fine Thread |
| P1057A002 | 1/2″ NF Nut – Fine Thread |
| P1027A006 | 3/16″ x 3″ Cotter Pin |
| P630A050 | Splined Coupling |
| P630B001 | 5016 Coupling Weldment |
| P354B | Weldment Front Axle |
| P498A004 | 1″ x 1 1/4″ Weldment Coupling |
| P472A019* | 3-Bank Hyd Control Valve |
| P583A003 | Cleanout Cover |
| P600A005 | 1 3/4″ x 6″ Lift Cylinder |
| P700A003 | Hyd Flow Divider |
| P909A002 | Filter Head – Small |
| P909A003 | Filter Head – Large |
| P1000A010 | 3/4″ Close Nipple |
| P1000A022 | 1 1/4″ Close Nipple |
| P1001A003 | 1/2″ x 1/4″ Reducer Coupling |
| P1001A022 | 1 1/4″ x 1″ Reducer Coupling |
| P1007A005 | 1 1/4″ Elbow St. 90 |
| P1008A006 | 2″ Plug |
| P1009A017 | 1 1/4″ x 1 1/4″ x 3/4″ Reducer Tee |
| P1010A006 | 3/4″ x 3/8″ Bushing Reducer |
| P1012A003 | 3/4″ Hose Adaptor |
| P1012A005 | 1 1/4″ Hose Adaptor |
| P3010A009 | 3/4″ Weather Stripping |
| P1007A008 | 1/8″ Elbow St. 90 |
| P1002A007 | 1/8″ Coupler |
| P1002A009 | 1/4″ Coupler |
| P1007A009 | 1/4″ Elbow St. 90 |
| P560A009 | 3/4″ NPT Hyd Close Nipple |
| P560A013 | 3/4″ F NP Hyd Elbow 90 |
| P560A015 | 3/8″ NPT Hyd Elbow St. 90 |
| P560A017 | 3/4″ NPT Hyd Elbow St. 90 |
| P567A005 | 1/4″ M ORS-JIC Hyd Fitting |
| P567A009 | 1/2″ M NPT-JIC Hyd Elbow 45 |
| P567A013 | 1/2″ M NPT-JIC Hyd Fitting |
| P569A005 | 1/4″ M ORS-JIC Hyd Elbow 90 |
| Straps | |
| P458A066 | Honda 24 HP Engine |
| P601A020 | Gear Style Hyd Pump |
| P630A011 | 1″ Chain Coupling-5016 |
| P630A034 | 1 1/8″ Chain Coupling-5016 |
| P631A002 | Chain Coupling-5016 |
| P707A012 | Hydraulic Transmission |
| P902A015 | Muffler |
| P1001A019 | 1 1/4″ x 3/4″ Reducer Coupling |
| P1012A003 | 3/4″ Hose Adaptor |
| P1012A005 | 1 1/4″ Hose Adaptor |
| P601B000 | O-Ring for SP Pump |
| P560A009 | 3/4″ NPT Hyd Nipple – Close |
| P560A013 | 3/4″ NPT Hyd Elbow 90 |
| P560A017 | 3/4″ NPT Hyd Elbow St. 90 |
| P567A007 | 1/2″ ORS x 3/4″ JIC Hyd O-Ring Fitting |
| P567A010 | 3/4″ ORS-JIC Hyd O-Ring Fitting |
| P570A002 | 3/4″ ORS – F NPT Hyd O-Ring Fitting |
E1000 SP-300 Dual
| Part Number | Description |
|---|---|
| P432A003 | Flange Bearings – 1 1/4″ – 2 Hole |
| P50137B009 | Seal Bearing Plate – 1 1/4”- 2 Hole |
| P474A004 | Steering Motor |
| P474A048 | Hyd. Drive Motor & Hub Assembly |
| P474A061 | Hyd Agitator Drive Motor |
| P476A004 | Inner Race-Bearing |
| P476A005 | Outer Race-Bearing |
| P495A001 | Throttle-Ball Joint |
| P574A002 | Tube |
| P576A007 | Tire |
| P577A004 | Rim-5 Hole |
| P577A010 | Rim-6 Hole |
| P577A011 | Rim-6 Hole |
| P693A003 | Cross Over Relief Valve 2HH |
| P1018A015 | 1/2″ C.S. Nordlock |
| P398A009 | 3” Butterfly Valve |
| P1000A008 | 1/2″ x 5″ Nipple |
| P1000B004 | 2″ x 3″ Nipple-Toe |
| P1002B003 | 3/4″ Half Coupling |
| P1002B005 | 2″ Half Coupling |
| P1003A001 | 1/2″ Elbow 90 |
| P1004A003 | 2″ Elbow 45 |
| P1007A002 | 1/2″ Elbow St. 90 |
| P1007A007 | 2″ Elbow St. 90 |
| P1008A003 | 3/4″ Plug |
| P1008A006 | 2″ Plug |
| P1051A002 | 3″ Elbow, Weld-On |
| P1053A004 | 4″ Tee, Weld-On |
| P482A000 | 2″ Hose, Suction |
| P1023A008 | #36 Hose Clamp |
| P354B | Weldment Front Axle |
| P498A004 | 1″ x 1 1/4″ Weldment Coupling |
| 2″ Surge Tank | |
| 1 1/4″ x 32″ Toe Nipple, Formed | |
| P1014A015 | 5/16″ x 2 1/2″ Hex Bolt |
| P1014A010 | 5/16″ x 1 1/4″ Hex Bolt |
| P1014A019 | 3/8″ x 1 1/2″ Hex Bolt |
| P1014A024 | 3/8″ x 3″ Hex Bolt |
| P1014A035 | 1/2″ x 2″ Hex Bolt |
| P1014A067 | 1/2″ x 2 1/4″ Hex Bolt |
| P1055A006 | 1/2″ NF x 1″ Bolt – Fine Thread |
| P1014A046 | 5/8″ x 1 1/4″ Hex Bolt |
| P1017A002 | 5/6″ Washer, Flat |
| P1017A003 | 3/8″ Washer, Flat |
| P1017A005 | 1/2″ Washer, Flat |
| P1017A013 | 1 1/2″ Washer, Flat |
| P1017A008 | 3/4″ Washer, Flat |
| P1018A007 | 5/8″ Washer, Lock |
| P1018A005 | 1/2″ Washer, Lock |
| P1020A005 | 1/2″ Nut |
| P1021A005 | 5/16″ Nut, Nylock |
| P1021A001 | 3/8″ Locknut, Nylock |
| P1021A002 | 1/2″ Locknut, Nylock |
| P1057A002 | 1/2″ NF Nut – Fine Thread |
| P9999 | 3/16″ x 2 3/4″ Cotter Pin |
| P397A001 | 3/4” Ball Valve |
| P397A002 | 2” Ball Valve |
| P1000A010 | 3/4″ Close Nipple |
| P1000A032 | 2″ x 5″ Nipple |
| P1000A033 | 2″ Close Nipple |
| P1000A035 | 2″ x 4″ Nipple |
| P1000A068 | 2″ x 10″ Nipple |
| P1005A004 | 2″ Tee |
| P1007A007 | 2″ Elbow St. 90 |
| P1008A006 | 2″ Plug |
| P1009A013 | 2″ x 2″ x 3/4″ Reducer Tee |
| P1012A008 | 2″ Hose Adapter |
| P1013A002 | 2″ Union Coupling |
| P1052A001 | 2″ Cross |
| Surge Tank – 2″ Nipple | |
| P442A003 | Snap Switch |
| P600A007 | Hyd Cylinder |
| P966A065 | Check Balls |
| P966A066 | Discharge Pouring Flange |
| P966A067 | Suction Porting Flange |
| P966A068 | Gasket-Manifold |
| P966A069 | Manifold |
| P966A070 | O Ring |
| P966A071 | Sealing Ring |
| P966A072 | Seat Assembly |
| P966A073 | Flange Theaded |
| P966A074 | Diaphragm |
| P966A083 | Manifold-Gasket |
| P397A001 | 3/4″ Brass Ball Valve |
| P397A002 | 2” Brass Balve Valve |
| P398A003 | 3/4″ Check Valve |
| P472A022* | 2-Bank Hyd Control Valve |
| P472A023* | 3-Bank Hydraulic Control Valve |
| P572A001 | 3/4″ Check Valve |
| P583A003 | Cleanout Cover |
| P600A005 | 1 3/4″ x 6″ Lift Cylinder |
| P909A002 | Filter Head – Small |
| P909A003 | Filter Head – Large |
| P1000A010 | 3/4″ Close Nipple |
| P1000A022 | 1 1/4″ Close Nipple |
| P1001A022 | 1 1/4″ x 1″ Reducer Coupling |
| P1002A007 | 1/8″ Coupler |
| P1006A006 | 2″ Elbow St. 45 |
| P1007A003 | 3/4″ Elbow St. 90 |
| P1007A005 | 1 1/4″ Elbow St. 90 |
| P1007A008 | 1/8″ Elbow St. 90 |
| P1009A017 | 1 1/4″ x 1 1/4″ x 3/4″ Reducer Tee |
| P1010A006 | 3/4″ x 3/8″ Bushing Reducer |
| P1010A007 | 3/4″ x 1/2″ Bushing Reducer |
| P1012A003 | 3/4″ Hose Adaptor |
| P1012A005 | 1 1/4″ Hose Adaptor |
| P1012A008 | 2″ Hose Adaptor |
| P3010A009 | 3/4″ Weather Stripping |
| P560A009 | 3/4″ NPT Hyd Close Nipple |
| P560A013 | 3/4″ F NP Hyd Elbow 90 |
| P560A017 | 3/4″ NPT Hyd Elbow St. 90 |
| P560A024 | 3/4″ Hyd Tee – 12 pt. |
| P560A026 | 3/4″ Hyd Tee |
| P570A001 | 1/2″ ORS – 3/4″ F NPT Hyd Fitting |
| P482A000 | 2″ x 17″ Hose (Suction) |
| P482A000 | 2″ x 11″ Hose (Suction) |
| P1023A008 | #36 Hose Clamp |
| P720000D014B | Wand Lock Tab |
| P458A052 | Kubota Diesel |
| P472A013 | Flow Reducer |
| P601A008 | Pressure Compensated Hydraulic Pump |
| P666A003 | Needle Valve |
| P707A012 | Hydraulic Transmission |
| P707A013 | 3/4″ Flange |
| P1001A019 | 1 1/4″ x 3/4″ Reducer Coupling |
| P1006A002 | 3/4″ Elbow St. 45 |
| P1012A005 | 1 1/4″ Hose Adaptor |
| P601B000 | O-Ring for SP Pump |
| P560A016 | 1/2″ NP Hyd Elbow St. 90 |
| P560A018 | 3/4″ M NPT Hyd Elbow |
| P560A023 | 1/2″ NPT Hyd Tee |
| P560A025 | 1/2″ NPT F-F-M Hyd St. Tee |
| P560A030 | 1/4″ M NPT – 3/8″ JIC |
| P560A038 | 3/4″ NPT – 1/2″ NPT Hyd Fitting |
| P560A054 | 1/2″ – 1/4″ NPT Hyd Fitting |
| P565A004 | 1/2″ M NPT – 3/8″ JIC Hyd Fitting |
| P567A005 | M 1/4″ ORS – JIC Hyd Fitting |
| P567A010 | 3/4″ ORS – JIC Hyd Fitting |
| P567A012 | M 1″ ORS – 3/4″ JIC Hyd Fitting |
| P567A013 | M 1/2″ NPT – 3/8″ JIC Hyd Fitting |
| P570A001 | 1/2″ ORS – 3/4″ F NPT Hyd Fitting |
| P570A002 | 3/4″ ORS – F NPT Hyd Fitting |
| P570A008 | 3/8″ ORS – 1/2″ F NPT Hyd Fitting |
| P751A003 | 3/4″ Hose x 1/2″ NPT Hose Adapter, Brass |
| P700A003 | Priority Flow Divider |
| P1012A003 | 3/4″ Hose Adapter |
| P572A001 | Hyd Orifice |
| P560A017 | 3/4″ NPT Hyd Elbow St. 90 |
| P560A028 | 3/4″ F – M – F Hyd St. Tee |
| P563A004 | 3/4″ F JIC Hyd Hose End Elbow 90 |
| P564A003 | 3/4″ M NPT Hyd Hose End |
| P567A005 | M 1/4″ ORS – JIC Hyd Fitting |
| P567A010 | 3/4″ ORS – JIC Hyd Fitting |
| P569A005 | M 1/4″ ORS – 3/8″ JIC Hyd Fitting |
| P713A000 | 3/4″ x 40″ Hose, Low Pressure |
| P666A004 | Needle Valve |
| P693A008 | Pressure Reducing Valve |
| P560A008 | 1/2″ NPT Hyd Close Nipple |
| P560A016 | 1/2″ NPT Hyd Elbow St. 90 |
| P560A025 | 1/2″ NPT F-F-M Hyd Tee |
| P567A013 | M 1/2″ NPT-3/8″ JIC Hyd Fitting |
| P570A007 | 1/4″ ORS-1/2″ F NPT Hyd Fitting |
| P751A009 | 3/4″ Hose x 1/2″ NPT Hose Adapter, Brass |
| P1012A011 | 5/8″ Hose x 1/2″ NPT Hose Adapter, Brass |
| P936A002 | Hyd Steering Control |
| P473A001 | Steering Column |
| P496A002 | Steering Wheel |
| P488A009 | Lever Control |
| P488A003 | Transmission Cable |
| P488A002 | T-Control |
| P711A004 | Pressure Guage |
| P916A001 | Push Button |
| P991A001 | Hour Meter |
| P443A001 | Toggle Switch-2 Pole |
| P443A004 | Boot, Toggle Switch |
| P449A010 | 1/4″ M NPT Spray Tip-Brass |
| P461A001 | Fuse Holder |
| P464A002 | Gas Cap |
| P466A002 | 12 Volt Battery-Large |
| P475B004 | 31″ Battery Cable |
| P475B007 | 53″ Battery Cable |
| P593A050 | Electric – 12V, DC Water Pump |
| P595A001 | ABC-10 Amp Fuse |
| P596A001 | 14 Gal Water Tank |
| P666A004 | Needle Valve |
| P693A009 | Knob Kit |
| P716A003 | Oil Cooler |
| P751A016 | 3/4″ F Garden Hose – 1/2″ M NPT Garden Hose Adapter |
| P908A005 | SE 100 Hyd Oil Filter |
| P908A003 | AE 25 Hyd Oil Filter |
| P914A001 | Low Pressure Switch |
| P915A007 | 3/8″ Quick Link |
| P953A003 | T-Handle Latch |
| P1050A006 | Oil Breather |
| P1000A004 | 1/2″ Nipple, Close |
| P1002A007 | 1/8″ Pipe Coupling |
| P1005A001 | 1/2″ Tee |
| P1007A002 | 1/2″ Elbow St. 90 |
| P1007A008 | 1/8″ Elbow St. 90 |
| P1009A024 | 1/2″-3/8″-3/8″ Reducing Tee |
| P1010A018 | 3/8″ – 1/8″ Bush Reducer |
| P1017A010 | 1″ Flat Washer |
| P560A007 | 3/8″ NPT Hyd Close Nipple |
| P560A008 | 1/2″ NPT Hyd Close Nipple |
| P560A016 | 1/2″ NPT Hyd Elbow 90 |
| P560A017 | 3/4″ NPT Hyd Elbow 90 |
| P560A022 | 3/8″ Hyd Tee |
| P560A025 | 1/2″ Hyd Fitting |
| P560A030 | 1/4″-3/8″ Hyd Fitting |
| P565A004 | 1/2″-3/8″ 90 Hyd Elbow |
| P567A009 | 3/8″ 45 Hyd Elbow |
| P567A010 | 3/4″ ORS-JIC |
| P567A016 | 3/8″ Hyd Fitting |
| P567A022 | 1/4″ Hyd Fitting |
| P569A003 | 3/8″ 90 Hyd Fitting |
| P569A004 | 3/8″-1/4″ 90 Hyd Fitting |
| P569A005 | 3/8″ 90 Hyd Fitting |
| P570A007 | 1/2″-1/4″ Hyd Fitting |
| P570A008 | 1/2″ Hyd Fitting |
| P751A003 | 3/4″ Hose x 1/2″ NPT Hose Adapter, Brass |
| P751A006 | 5/8″ Hose Adapter, Brass |
| P1008A012 | 1 1/2″ PVC Plug, Vented |
| P1012A011 | 5/8″ Hose Adapter, Brass |
| P1023A002 | #2 Hose Clamp |
| P1023A003 | #10 Hose Clamp |
| P1023A004 | #12 Hose Clamp |
| P602A003 | Seat |
| 2″ Hose Sub Assembly | |
| Spray Wand | |
| Spray Bar Kit | |
| P449A004 | 3/8″ x 80/70 Spray Nozzle |
| Drag Box | |
| P562A003 | 3/4″ F JIC Hyd Hose End |
| P562A005 | 1/2″ F JIC Hyd Hose End |
| P562A008 | 3/8″ F JIC Hyd Hose End |
| P563A001 | 3/8″ 90 Hyd Hose End Elbow |
| P563A003 | 1/2″ 90 Hyd Hose End Elbow |
| P563A004 | 3/4″ 90 Hyd Hose End Elbow |
| P563A007 | 3/8″ 45 Hyd Hose End Elbow |
| P563A008 | 3/4″ 45 Hyd Hose End Elbow |
| P564A001 | 3/8″ M NPT Hyd Hose End |
| P564A002 | 1/2″ M NPT Hyd Hose End |
| P564A003 | 3/4″ M NPT Hyd Hose End |
| P701A000 | 1/2″ Hyd Hose, High Pressure |
| P702A000 | 3/8″ Hyd Hose, High Pressure |
| P704A000 | 3/4″ Hyd Hose, High Pressure |
| P712A000 | 5/8″ Hose, Low Pressure |
| P713A000 | 3/4″ Hose, Low Pressure |
| P714B000 | 1 1/4″ Hose, Suction |
| P716B000 | 3/16″ Fuel Hose (1) |
| P716A000 | 5/16″ Fuel Hose (2) |
E1015 SP-575 Econo
| Part Number | Description |
|---|---|
| P474A062 | Hyd. Motor – Front Steering |
| P474A059 | Hyd. Motor – Rear |
| P474A060 | Hyd. Motor – Front Drive |
| P474A004 | Agitator Motor |
| P693A003 | Crossover Relief Valve |
| P476A004 | Inner Race- Bearing |
| P476A005 | Outer Race- Bearing |
| P574A002 | Tube |
| P576A007 | Tire |
| P577A010 | Rim |
| P577A011 | Rim |
| P578A014 | Hub Tapered – 1.5″ |
| P1055A006 | Bolt – 1/2″ x 1″ |
| P1057A002 | Nut – 1/2″ |
| P1018A005 | Lock Washer – 1/2″ |
| P1018A015 | 1/2″ C.S. Nordlock |
| P1002B005 | 2″ Half Coupling |
| P1003A003 | 3/4″ 90-Elbow |
| P1007A003 | 3/4″ 90-Street Elbow |
| P1051A002 | 3″ Elbow, Weld-On |
| P1053A004 | 4″ Weld on Tee |
| P434A004 | 2″ 4-Hole Bearing, Flange |
| P50137B007 | 2″ 4-Hole Seal-Bearing Plate |
| P432A003 | 1 1/4″ 2-Hole Flange Bearing |
| P50137B009 | 1 1/4″ Seal-Bearing Plate |
| P909A003 | Filter Head – Large |
| P583A003 | Cleanout Cover |
| P600A005 | 1 3/4″ x 6″ Lift Cylinder |
| P700A003 | Flow Divider |
| P1000A022 | 1 1/4″ Close Nipple |
| P1001A022 | 1 1/4″ x 1″ Reducer Coupling |
| P1007A005 | 1 1/4″ Elbow – St. 90 |
| P1008A006 | 2″ Plug |
| P1009A017 | 1 1/4″ x 1 1/4″ x 3/4″ Tee |
| P1010A006 | 3/4″ x 3/8″ Reducer |
| P1012A005 | 1 1/4″ Hose Adaptor |
| P560A057 | Hyd Fitting |
| P562A004 | 3/8″ F JIC Hyd Hose End |
| P563A004 | 3/4″ Hyd Hose End |
| P564A003 | 3/4″ M NPT Hyd Hose End |
| P567A010 | 3/4″ ORS-JIC Hyd Fitting |
| P567A020 | 3/4″ ORS-JIC Hyd Tee |
| P567A022 | 1/4″ ORS-JIC Hyd Fitting |
| P567A024 | 3/4″ M NPT-JIC Hyd Tee |
| P567A025 | 1/4″ JIC M-F-M |
| P693A003 | Hyd Cross Over Relief Valve |
| P707A013 | Bervini Transmission High Press Flange |
| P1001A022 | 1 1/4″ x 1″ Reducer Coupling |
| P567A022 | 1/4″ ORS-JIC Hyd Fitting |
| P567A021 | Hyd Tee |
| P568A004 | 1/4″ ORS – 1/8″ JIC Hyd Elbow 45 |
| P569A005 | M 1/4″ ORS-3/8″ JIC Hyd Elbow 90 |
| P567A005 | M 1/4″ ORS-1/4″ JIC Hyd Fitting |
| P693A011 | Hyd Shuttle Valve |
| P458A058 | 42 HP Turbo Kubota |
| P601A043 | Hyd Pump |
| P630A011 | 1″ x 1/4″ Chain Coupling |
| P630A034 | 1 1/8″ x 1/4″ Chain Coupling |
| P631A002 | Chain Coupling |
| P707A011 | Transmission |
| P716A003 | Oil Cooler |
| P707A013 | Bervini Transmission High Pressure Port Flange |
| P601B000 | O-Ring for SP Pump |
| P1001A019 | 1 1/4″ x 3/4″ Reducer Coupling |
| P1012A005 | 1 1/4″ Hose Adaptor |
| P1012A003 | 3/4″ Hose Adaptor |
| P560A009 | 3/4″ NPT Close Nipple |
| P560A013 | 3/4″ NPT Elbow 90 |
| P560A017 | 3/4″ NPT Elbow St. 90 |
| P567A007 | 1/2″ ORS x 3/4″ JIC Hyd O Ring Fitting |
| P567A010 | 3/4″ ORS-JIC Hyd O Ring Fitting |
| P570A002 | 3/4″ ORS – F NPT Hyd O Ring Fitting |
| Engine Sub Assembly | |
| P472B009 | Hyd Valve Handles |
| P472A019 | Hyd 3 Bank Valve – Spring Center Detent |
| P473A001 | Steering Column |
| P488A002 | T-Control |
| P488A009 | Lever Control |
| P488A015 | Trans Cable |
| P496A002 | Steering Wheel |
| P601A020 | Hyd Pump |
| P602A001 | Seat |
| P693A011 | Hyd Shuttle Valve |
| P707A011 | Hyd Trans |
| P936A001 | Hyd Pump |
| P443A001 | Toggle Switch |
| P449A011 | Spray Nozzle – Brass |
| P461A001 | Fuse Holder |
| P464A002 | Gas Cap |
| P466A001 | Battery |
| Cable, Battery | |
| P572A001 | Hyd Check Valve |
| P593A050 | Water Pump – 12 Volt |
| P914A001 | Pressure Switch |
| P915A007 | 3/8″ Quick Link |
| P953A003 | T-Handle Latch |
| P991A001 | Hour Meter |
| P908A003 | Hyd Oil Filter |
| P908A005 | Hyd Oil Filter |
| P916A001 | Push Button |
| P1050A006 | Oil Breather |
| P1000A001 | 3/8″ Close Nipple |
| P1000A004 | 1/2″ Close Nipple |
| P1003A002 | 3/4″ 90 Deg Elbow |
| P1003A011 | 1/2″ x 3/8″ Reducing Elbow |
| P1005A001 | 1/2″ Tee |
| P1005A007 | 3/8″ Tee |
| P1007A001 | 3/8″ 90 Deg St. Elbow |
| P1007A002 | 1/2″ 90 Deg St. Elbow |
| P1007A003 | 3/4″ 90 Deg St. Elbow |
| P1009A024 | 1/2″ x 3/8″ x 3/8″ Reducing Tee |
| P1010A018 | 3/8″ x 1/8″ Bushing Reducer |
| P1012A003 | 3/4″ Hose Adapter |
| P560A007 | 3/8″ Hyd Close Nipple |
| P560A009 | 3/4″ Hyd Close Nipple |
| P560A015 | 3/8″ NPT Hyd Elbow St 90 |
| P560A017 | 3/4″ NPT Hyd Elbow St 90 |
| P560A022 | 3/8″ Hyd Tee |
| P560A026 | 3/4″ Hyd Tee |
| P562A002 | 3/8″ Hyd Fitting |
| P563A004 | 3/4″ Hyd Fitting |
| P563A007 | Hyd Fitting |
| P564A001 | 3/8″ Hyd Fitting |
| P564A003 | 3/4″ Hyd Fitting |
| P567A010 | Hyd Fitting |
| P567A011 | Hyd Fitting |
| P567A016 | Hyd Fitting |
| P569A003 | Hyd Hose End |
| P570A001 | Female Conn. 5/8″ x 3/4″ |
| P751A003 | 3/4″ Hose x 1/2″ NPT Hose Adapter, Brass |
| P751A006 | 5/8″ Hose x 3/8″ NPT Hose Adapter, Brass |
| P751A016 | 3/4″ Hose x 1/2″ NPT Hose Adapter, Brass |
| P1012A011 | 5/8″ Hose x 1/2″ NPT Hose Adapter, Brass |
E1015 SP-575 Dual
| Part Number | Description |
|---|---|
| P434A004 | 2″ 4-Hole Bearing, Flange |
| P50137B007 | 2″ Seal-Bearing Plate |
| P474A063 | Agitator Motor with Speed Control |
| P474A059 | Hyd. Motor – Rear |
| P474A060 | Hyd. Motor – Front Drive |
| P474A062 | Hyd. Motor – Front Steering |
| P476A004 | Inner Race- Bearing |
| P476A005 | Outer Race- Bearing |
| P495A001 | Throttle Ball Joint |
| P574A002 | Tube |
| P576A007 | Tube |
| P577A010 | Rim |
| P577A011 | Rim |
| P578A014 | Hub Tapered – 1.5″ |
| P693A003 | Crossover Relief Valve |
| P1018A005 | Lock Washer – 1/2″ |
| P1018A015 | 1/2″ C.S. Nordlock |
| P1039A009 | 1/2″ x 1″ NF Bolt, Socket Head |
| P1057A002 | 1/2″ NF Nut |
| P397A002 | 2″ Ball Valve |
| P397A001 | 3/4″ Ball Valve |
| P398A009 | 3″ Butterfly Valve – Shortened Handle |
| P477A001 | 2″ Hose Coupler |
| P1000A008 | 1/2″ x 5″ Nipple |
| P1000A010 | 3/4″ Nipple – Close |
| P1000A027 | 1 1/4″ x 6″ Nipple – Toe |
| P1000B004 | 2″ x 3″ Nipple – Toe |
| P1002B003 | 3/4″ Half Coupling |
| P1002B005 | 2″ Half Coupling |
| P1003A001 | 1/2″ Elbow 90 |
| P1003A002 | 3/4″ Elbow 90 |
| P1004A003 | 2″ Elbow 45 |
| P1005A004 | 2″ Tee |
| P1007A002 | 1/2″ Elbow St. 90 |
| P1007A003 | 3/4″ Elbow St. 90 |
| P1007A007 | 2″ Elbow St. 90 |
| P1008A003 | 3/4″ Plug |
| P1008A006 | 2″ Plug |
| P1009A013 | 2″ x 2″ x 3/4″ Tee |
| P1012A008 | 2″ Hose Adapter |
| P1013A002 | 2″ Union Coupling |
| P1051A002 | 3″ Elbow, Weld-On |
| P1053A004 | 4″ Tee, Weld-On |
| P482A000 | 2″ Hose, Suction |
| P1023A008 | #36 Hose Clamp |
| P1014A010 | 5/16″ x 1 1/4″ Hex Bolt |
| P1014A009 | 5/16″ x 1″ Hex Bolt |
| P1014A035 | 1/2″ x 2″ Hex Bolt |
| P1014A046 | 5/8″ x 1 1/4″ Hex Bolt |
| P1017A004 | 7/16″ Flat Washer |
| P1017A013 | 1 1/2″ Flat Washer |
| P1018A005 | 1/2″ Lock Washer |
| P1018A007 | 5/8″ Lock Washer |
| P1020A003 | 5/16″ Nut |
| P1020A005 | 1/2″ Nut |
| 3/16″ Cotter Pin | |
| P640A024 | Sand Pumper II |
| P397A001 | 3/4″ Ball Valve |
| P397A002 | 2″ Ball Valve |
| P477A001 | 2″ M/M NPT Hose Coupler |
| P1000A010 | 3/4″ Nipple-Close |
| P1000A032 | 2″ x 5″ Nipple |
| P1000A033 | 2″ Nipple-Close |
| P1000A035 | 2″ x 4″ Nipple |
| P1000A068 | 2″ x 10″ Nipple |
| P1005A004 | 2″ Tee |
| P1007A007 | 2″ Elbow St. 90 |
| P1008A006 | 2″ Plug |
| P1009A013 | 2″ x 3/4″ x 2″ Reducer Tee |
| P1012A008 | 2″ Hose Adapter |
| P1013A002 | 2″ Union Coupling |
| P1052A001 | 2″ Cross |
| 2″ Nipple Surge Tank | |
| P1014A023 | 3/8″ x 2 1/2″ Hex Bolt |
| P1014A024 | 3/8″ x 3″ Hex Bolt |
| P1017A003 | 3/8″ Flat Washer |
| P1021A001 | 3/8″ Lock Nut |
| P1050A002 | 2 5/8″ Muffler Clamp |
| P442A003 | Snap Switch |
| P600A007 | Hyd Cylinder |
| P966A065 | Check Balls |
| P966A066 | Discharge Porting Flange |
| P966A067 | Suction Porting Flange |
| P966A068 | Gasket-Manifold |
| P966A069 | Manifold |
| P966A070 | O Ring |
| P966A071 | Sealing Ring |
| P966A072 | Seat Assembly |
| P966A073 | Flange Theaded |
| P966A074 | Diaphragm |
| P966A083 | Manifold-Gasket |
| P472A023 | 3 Bank Hyd Valve with Closed Center |
| P583A003 | Cleanout Cover |
| P572A001 | Check Valve |
| P600A005 | 1 3/4″ x 6″ Lift Cylinder |
| P1012A008 | 2″ Hose Adaptors |
| P397A001 | 3/4″ Ball Valve |
| P397A002 | 2″ Ball Valve |
| P398A003 | 3/4″ Check Valve |
| P909A002 | 3/4″ Ports Filter Head-Small |
| P909A003 | 1 1/4″ Ports Filter Head-Large |
| P1000A010 | 3/4″ Close Nipple |
| P1000A022 | 1 1/4″ Close Nipple |
| P1007A009 | 1/4″ St. 90 |
| P1002A009 | 1/4″ Coupler |
| P1001A002 | 1 1/4″ x 1″ Reducer Coupling |
| P1002A007 | 1/8″ Coupler |
| P1004A003 | 2″ Elbow 45 |
| P1007A003 | 3/4″ Elbow St. 90 |
| P1007A005 | 1 1/4″ Elbow St. 90 |
| P1007A008 | 1/8″ Elbow St. 90 |
| P1008A006 | 2″ Plug |
| P1009A017 | 1 1/4″ x 1 1/4″ x 3/4″ Tee |
| P1010A006 | 3/4″ x 3/8″ Bushing Reducer |
| P1012A005 | 1 1/4″ Hose Adaptor |
| P3010A009 | Weather Stripping |
| P560A057 | SAE Male X Female 3/4″ |
| P562A004 | 3/8″ F JIC Hyd Hose End |
| P563A004 | 3/4″ F JIC Hyd Hose End Elbow 90 |
| P564A003 | 3/4″ M NPT Hyd Hose End |
| P567A010 | 3/4″ ORS-JIC Hyd Fitting |
| P567A020 | 3/4″ ORS-JIC Hyd Tee |
| P567A022 | 1/4″ ORS-JIC Hyd Fitting |
| P567A021 | Hyd Tee |
| P567A024 | 3/4″ M NPT-JIC-Hyd Tee |
| P567A025 | 1/4″ JiC M-F-M Hyd Tee |
| P568A004 | 1/4″ ORS-JIC Hyd Elbow 45 |
| P569A005 | 1/4″ ORS-M-JIC Hyd Elbow 90 |
| P567A005 | 1/4″ ORS-M JIC Hyd Fitting |
| P458A058 | 42 HP Turbo Kubota |
| P601A008 | Hyd Pump |
| P707A011 | Hyd Transmission |
| P707A013 | Bervini Transmission |
| P601B000 | O-Ring for Hyd Pump |
| P1001A019 | 1 1/4″ x 3/4″ Reducer Coupling |
| P1012A003 | 3/4″ Hose Adaptor |
| P1012A005 | 1 1/4″ Hose Adaptor |
| P560A009 | 3/4″ NPT Hyd Nipple-Close |
| P560A013 | 3/4″ NPT Hyd Elbow 90 |
| P560A017 | 3/4″ NPT Hyd Elbow-St. 90 |
| P567A007 | 1/2″ ORS-JIC Hyd Fitting |
| P567A010 | 3/4″ ORS-JIC Hyd Fitting |
| P570A002 | 3/4″ ORS-F NPT Hyd Fitting |
| P601A008 | Hyd Pump |
| P666A004 | 1/2″ Needle Valve |
| P693A008 | Pressure Reducing Valve |
| P693A011 | Hyd Shuttle Valve |
| P707A011 | Hyd Transmission |
| P443A001 | 2 Pole Toggle Switch |
| P443A004 | Boot, Toggle Switch |
| P1050A006 | Oil Breather |
| P449A010 | 1/4″ Spray Nozzle- Brass |
| P458B165 | Ignition Switch-Kubota |
| P461A001 | Fuse Holder |
| P464A002 | Gas Cap |
| P466A002 | Battery-Group 24 |
| P473A001 | Steering Column |
| P475B005 | 38″ Battery Cable |
| P475B006 | 42″ Battery Cable |
| P477A001 | Hose Coupler |
| P488A002 | T-Control |
| P488A009 | Lever Control |
| P488A015 | Transmission Cable |
| P496A002 | Steering Wheel |
| P593A050 | 12 Volt Water Pump |
| P602A001 | Seat |
| P716A003 | Oil Cooler |
| P751A016 | 3/4″ F Garden Hose Adapter – 1/2″ M NPT |
| P914A001 | Pressure Switch |
| P915A007 | 3/8″ Quick Link |
| P916A001 | Push Button |
| P936A002 | Hyd Pump |
| P953A003 | T-Handle Latch |
| P991A001 | Hour Meter |
| P908A003 | Hyd Oil Filter |
| P908A005 | Hyd Oil Filter |
| P1000A004 | 1/2″ Close Nipple |
| P1003A011 | 1/2″ – 3/8″ Reducing Elbow |
| P1003A002 | 3/4″ Elbow 90 |
| P1005A001 | 1/2″ Tee |
| P1006A002 | 3/4″ Elbow St. 45 |
| P1007A001 | 3/8″ Elbow St. 90 |
| P1007A002 | 1/2″ Elbow St. 90 |
| P1009A008 | 1/2″-1/2″-3/8″ Reducer Tee |
| P1010A018 | 3/8″-1/8″ Bushing Reducer |
| P1012A011 | 5/8″ Hose-1/2″ NPT Hose Adapter |
| P1012A003 | 3/4″ Hose Adapter |
| P560A007 | 3/8″ NPT Hyd Close Nipple |
| P560A015 | 3/8″ Hyd Elbow St. 90 |
| P560A017 | 3/4″ NPT Hyd Elbow St. 90 |
| P560A022 | 3/8″ Hyd Tee |
| P560A026 | 3/4″ Hyd Tee |
| P561A004 | 3/4″ Hyd Fitting |
| P562A002 | 3/8″ Hyd Fitting |
| P562A003 | 3/4″ Hyd Fitting |
| P562A008 | 3/8″ F JIC Hyd Hose End |
| P563A001 | 3/8″ F JIC Hyd Hose End Elbow 90 |
| P563A004 | 3/4″ Hyd Fitting |
| P563A006 | 3/8″ Hyd Fitting |
| P563A007 | 3/8″ F JIC Hyd Hose End Elbow 45 |
| P563A008 | 3/4″ F JIC Hyd Hose End Elbow 45 |
| P564A001 | 3/8″ Hyd Fitting |
| P564A003 | 3/4″ Hyd Fitting |
| P567A005 | 1/4″ ORS-JIC Hyd Fitting |
| P567A006 | 1/2″ ORS-3/8″ JIC Hyd Fitting |
| P567A010 | 3/4″ ORS-JIC Hyd Fitting |
| P567A012 | 1″ ORS-JIC Hyd Fitting |
| P567A016 | 3/8″ ORS-JIC |
| P567A025 | 1/4″ JIC M-F-M Hyd Tee |
| P570A001 | Female Conn. 5/8″ x 3/4″ |
| P751A003 | 1/4″ Hose x 1/2″ NPT Hose Adapter, Brass |
| P751A006 | 5/8″ Hose x 3/8″ NPT Hose Adapter, Brass |
| P1023A006 | #20 Hose Clamps, SS |
| P602A003 | Seat |
| 2″ Hose Sub Assembly | |
| Spray Wand | |
| Spray Bar Kit | |
| P449A004 | 3/8″ x 80/70 Spray Nozzle |
| Drag Box |
E1120 TR-575 Pro-Air
| Part Number | Description | |
|---|---|---|
| P639A001 | 18″ Complete Manhole Cover | |
| P434A003 | 1 1/2″ 4 Bolt Bearing-Flange | |
| P1021A002 | 1/2″ Nut Hex Lock | |
| P50137B002 | 1 1/2″ Seal | |
| P50137B003 | 1 1/2″ 4 Bolt Bearing Plate | |
| P397A002 | 2″ Ball Valve | |
| P1000A033 | 2″ Nipple-Close | |
| P1000B001 | 3/4″ x 3″ Nipple-Toe | |
| P1000B003 | 1 1/4″ x 3″ Nipple-Toe | |
| P1000B004 | 2″ x 3″ Nipple-Toe | |
| P1013A002 | 2″ Union | |
| P511A013 | Brake Axkle 6000 lb. HF 63″ x 46″ | |
| P512A006 | Hanger Kit | |
| P513A018 | Attaching Parts Kit | |
| P514A022 | Tire Assy | |
| P531A004 | Chain w/ Clevis-Slip Hook | |
| P551A001 | Jack w/ Mount-5000 lb. | |
| P551A002 | Receiver Tube-Female Weld-on | |
| P553A012 | 5/8″ x 4 1/2″ Bolt, Hitch | |
| P553A013 | 5/8″ Nut, Hitch | |
| P646A003 | Lunette Eye | |
| P651A001 | 1/2″ Romex Connector | |
| P651A002 | 1/2″ Romex Emt. | |
| P941A012 | 2″ x 4″ Electrical Box | |
| P941A026 | Cover Plate-Electrical Box | |
| P1034A022 | 5/32″ x 2 1/2″ Hairpin | |
| P1014A057 | 1/4″ x 3/4″ Hex bolt | |
| P1017A001 | 1/4″ Flat Washer | |
| P1021A006 | 1/4″ Locknut | |
| P472A016 | M-12 Hyd Control Valve | |
| P474A004 | Hyd Motor | |
| P498A008 | 1 1/2″ x 1″ Weldment Coupling | |
| P397A001 | 3/4″ Ball Valve | |
| P397A002 | 2″ Ball Valve | |
| P909A002 | 3/4″ Ports Filter Head-Small | |
| P1003A002 | 3/4″ Elbow 90 | |
| P1003A006 | 1 1/4″ Elbow 90 | |
| P1007A003 | 3/4″ Elbow St. 90 | |
| P1010006 | 3/4″-3/8″ Bushing Reducer | |
| P1010A009 | 1″-3/4″ Bushing Reducer | |
| P1012A003 | 3/4″ Hose Adapter | |
| P1012A005 | 1 1/4″ Hose Adapter | |
| P560A009 | 3/4″ NPT Hyd Close Nipple | |
| P560A017 | 3/4″ NPT Hyd Elbow St. 90 | |
| P560A042 | 3/4″ x 1/2″ NPT Hyd Elbow Red St. 90 | |
| P565A004 | 1/2″ Hyd Elbow 90 | |
| P567A013 | M 1/2″ NPT-3/8″ JIC Hyd Fitting | |
| P459A013 | 1/2″ x 5″ x 30″ Neoprene | |
| P482A006 | 1 7/8″ x 13″ Suction Hose | |
| P1023A009 | #28 Hose Clamp | |
| P1032B005 | 1/2″ x 1/2″ x 2″ Keystock | |
| P72000B012A | Backing Strips | |
| P72000D014 | Wand Lock | |
| P909A002 | Filter Head | |
| P1000A010 | Nipple-Close | |
| P1012A003 | 3/4″ Hose Adapter | |
| P560A017 | 3/4″ Hyd Elbow St. 90 | |
| P458A044 | Compressor | |
| P458A023 | Engine, Honda 13 HP | |
| P601A041 | Hyd Pump | |
| P631A005 | Hytrel Insert | |
| P630A032 | 1″ x 1/4″ Jaw Coupling | |
| P630A045 | 1/2″ x 1/8″ Jaw Coupling | |
| P29908B | Pump Mount | |
| P560A016 | 1/2″ NPT Hyd Elbow St. 90 | |
| P569A005 | M 1/4″ ORS-3/8″ JIC Hyd Elbow 90 | |
| P570A008 | 3/8″ ORS-12″ F NPT | |
| P751A003 | 3/4″ Hose x 1/2″ NPT | |
| P1032B006 | 1/4″ x 1″ Keystock | |
| P640A061 | 1 1/2″ Pump-ARO | |
| P397A001 | 3/4″ Ball Valve | |
| P397A002 | 2″ Ball Valve | |
| P397A012 | 1 1/4″ Ball Valve | |
| P1000A010 | 3/4″ Nipple-Close | |
| P1000A022 | 1 1/4″ Nipple-Close | |
| P1000A028 | 1 1/2″ Nipple-Close | |
| P1000A031 | 1 1/2″ x 4″ Nipple | |
| P1000A033 | 2″ Nipple-Close | |
| P1000B010 | 1 1/2″ x 3″ Nipple-Toe | |
| P1005A009 | 1 1/2″ Tee | |
| P1007A003 | 3/4″ Elbow St. 90 | |
| P1007A005 | 1 1/4″ Elbow St. 90 | |
| P1007A006 | 1 1/2″ Elbow St. 90 | |
| P1008A009 | 1 1/2″ Plug | |
| P1009A023 | 2″ x 1 1/4″ x 1″ Tee | |
| P1010A009 | 1″ x 3/4″ Bushing Reducer | |
| P1010A014 | 2″ x 1 1/2″ Bushing Reducer | |
| P1012A005 | 1 1/4″ Hose Adapter | |
| P1052A001 | 2″ Cross | |
| P30003C | Med. Surge Tank | |
| P397A001 | 3/4″ Ball Valve, Brass | |
| P398A003 | 3/4″ Check Valve | |
| P1000A010 | 3/4″ Close Nipple | |
| P443A001 | Toggle Switch | |
| P443A004 | Toggle Boot | |
| P461A001 | Fuse Holder 10 Amp Fuse | |
| P593A013 | Electric Water Pump-12 Volt | |
| P593A028 | Strainer In-Line | |
| P593A029 | Quad Portx Hose Adapter | |
| P593A032 | Plastic Cap | |
| P595A001 | 10 Amp Fuse | |
| P596A002 | 51.81 Gal Water Tank | |
| P1007A003 | 3/4″ Elbow St. 90 | |
| P1008A012 | 1 1/2″ PVC Plug | |
| P1009A009 | 3/4″ x 3/4″ x 1/2″ Tee | |
| P1012A002 | 1/2″ Hose Adapter | |
| P50330A001 | 64 3/4″ x 1 1/2″ x 1/8″ Straps | |
| P712C000 | 1/2″ Low Pressure Hose – 18″ | |
| P713A000 | 3/4″ Low Pressure Hose – 10 ft. | |
| P1023A002 | #3 SS Hose Clamp | |
| P1023A004 | #12 SS Hose Clamp | |
| P556A005 | #14 GA. Auto Wire – 8 ft. | |
| P72000A001 | Air Compressor/Pump Sub Assy | |
| P464A002 | Gas Cap | |
| P466A001 | Battery | |
| P475B005 | 38″ Battery Cables | |
| P477A001 | 2″ Male QD X Male Npt | |
| P735A047 | Filter/Regulator | |
| P908A003 | Oil Filter | |
| 42″ Battery Cable | ||
| P516A016 | Left Light | |
| P516A017 | Right Light | |
| P516A018 | License Plate Bracket | |
| P518A004 | Break Away Kit | |
| P519A007 | RV Plug | |
| P562A005 | Hose End | |
| P563A005 | Hose End | |
| P563A003 | Hose End | |
| P564A002 | Hyd Hose End | |
| P701A000 | 3/8″ x 16″ F to 90 Hyd Hose, High Press | |
| P701A000 | 3/8″ x 17″ F to F Hyd Hose, High Press | |
| P701A000 | 3/8″ x 29″ F to 45 Hyd Hose, High Press | |
| P713A000 | 3/4″ x 17″ Hose, Low Press, Red | |
| P713A000 | 3/4″ x 22″ Hose, Suction | |
| P713A000 | 3/4″ x 102″ Hose, Low Press, Red | |
| P715A000 | 1″ x 30″ Hose, Low Press, Red | |
| P712B000 | 1/2″ x 29″ Heater Hose, Red | |
| P754B026 | 3/4″ x 75′ Spray Hose | |
| P437A005 | Insulated Clamp | |
| P1023A004 | #12 Hose Clamp | |
| P1023A006 | #20 Hose Clamp | |
| P459B021 | Rubber Mounts | |
| P5017B003 | Bearing Plate | |
| P50273B | 5 ft. Spray Wand | |
| P747A001 | 3/8″ Polyloom Split – 8 ft. | |
| P747A003 | 3/8″ x 3/8″ x 3/8″ Polyloom Tee | |
| P556A005 | Yellow/Brown Wire – 14 ft. | |
| P556A006 | Green/Brown Wire – 18 ft. | |
| P556A004 | Electrical Wire- 14 GA.-6 GA. – 6 ft. | |
| P419A001 | Yellow Wire Nuts | |
| P938A009 | Hydraulic Oil – 8 gal. | |
| Decals | ||
| 3280 | 13 1/2″ x 38″ SM Tank Decal | |
| A2515 | 4″ x 18″ SM Decal | |
| P3175A000 | Warning Do Not Remove…Under Pressure | |
| P3160B002 | Warning Moving Parts | |
| P3162A009 | 4″ x 6″ TR-550 | |
| P3170A001 | Caution…Hyd Valves…Neutral Position | |
| P3165A002 | Hyd Oil Fill Decal | |
| P3165A003 | Water Fill Decal | |
| P3165A013 | Battery Decal | |
| P3164B000 | Rev-Agitator-Fwd | |
| P3164A004 | On-Decal | |
| P3164A003 | Off-Decal | |
| P3170A003 | Water Pump Decal | |
| P3165A001 | Decal-Gasoline Fill | |
| Part Number | Description |
|---|---|
| P434A004 | 2″ 4-Hole Flange Bearing |
| P639A001 | Complete 18″ Manhole and Cover |
| P50137B007 | 2″ 4 Hole Seal |
| P50137B006 | 2″ 4 Hole Bearing Plate |
| P397A002 | 2″ Ball Valve, Brass |
| P1000B001 | 3/4″ x 3″ Toe Nipple |
| P1000B003 | 1 1/4″ x 3″ Nipple |
| P1000B004 | 2″ x 3″ Toe Nipple |
| P1000A033 | 2″ Close Nipple |
| P1012A002 | 2″ Union |
| P511A013 | Brake Axel 6000 lb. HF-63″ x 46″ SC |
| P512A006 | Hanger Kit |
| P514A018 | Tire Assy |
| P551A001 | Jack w/ Mount – 5000 lb. |
| P551A002 | Receiver Tube – Female Weld-On |
| P553A012 | Hitch Bolt – 5/8″ x 4 1/2″ Hex Hd Capscrew-Grd.8 |
| P553A013 | Hitch Nut – 5/8″ Stake Lock |
| P646A003 | Lunette Eye |
| P651A001 | 1/2″ Romex Connector Wire Clamp |
| P651A002 | 1/2″ Romex Emt Conduit Clamp |
| P941A012 | 2″ x 4″ Electrical Box |
| P941A026 | Cover Plate-Electrical Box |
| P1054A008 | 5/8″ x 3″ All Thread Tap Bolt |
| P1021A014 | 5/8″ Nylock |
| P428A001 | 1 1/4″ x 5/16″ Sprocket |
| P428A003 | 2″ x 1/2″ Sprocket |
| P472A016 | Hyd Valve |
| P474A017 | 1 1/4″ x 5/16″ Key Hyd Motor |
| P397A013 | 1″ Ball Valve |
| P397A002 | 2″ Ball Valve |
| P909A008 | 1″ Ports Filter Head-Small |
| P1003A002 | 3/4″ Elbow 90 |
| P1003A006 | 1 1/4″ Elbow 90 |
| P1007A003 | 3/4″ Elbow St. 90 |
| P1008A003 | 3/4″ Plug |
| P1012A003 | 3/4″ Hose Adaptor |
| P1012A004 | 1″ Hose Adaptor |
| P1012A005 | 1 1/4″ Hose Adaptor |
| P560A017 | 3/4″ Hyd St. Elbow |
| P560A042 | Hyd Fitting |
| P560A052 | 1″ NPT Hyd Elbow St. 90 |
| P560A056 | 1/2″ F NPT-M JIC Hyd Fitting |
| P565A004 | 1/2″ M NPT-3/8″ JIC Hyd Elbow 90 |
| Compressor | |
| P601A014 | Pump |
| P735A047 | Filter/Regulator |
| P908A003 | Hyd Oil Filter |
| P464A002 | Gas Cap |
| P466A001 | Battery |
| P475B006 | 42″ Battery Cable |
| P475B007 | 53″ Battery Cable |
| P1023A004 | Hose Clamp |
| P1023A005 | Hose Clamp |
| P1023A006 | Hose Clamp |
| P518A004 | Break Away Kit |
| P516A016 | Left Turn |
| P516A017 | Right Turn |
| P516A018 | License Plate |
| P477A001 | 2″ Male/Male NPT Hose Coupler |
| 1/2″ x 50″ 90 to F Hyd Hose | |
| 1/2″ x 52″ F to F Hyd Hose | |
| 1/2″ x 36″ 45 to F | |
| 3/4″ x 33″ Low Press Hose | |
| 1″ x 32″ Suction Hose | |
| 1 1/4″ x 44″ Low Press Hose |
E1140 TR-1000 Pro-Air
| Part Number | Description |
|---|---|
| P434A004 | 2″ 4-Hole Flange Bearing |
| P639A001 | 18″ Complete Manhole Cover |
| P50137B006 | 2″ Plate-Bearing |
| P50137B007 | 2″ Seal-Bearing |
| P1054A008 | 5/8″ x 3″ Tap Bolt – All Thread |
| P1021A014 | 5/8″ Lock Nut-Nylock |
| P428A003 | 60B60 – 2″ x 1/2″ Sprocket |
| P397A002 | 2″ Ball Valve, Brass |
| P1000A033 | 2″ Nipple-Close |
| P1000B001 | 3/4″ x 3″ Nipple-Toe |
| P1000B003 | 1 1/4″ x 3″ Nipple-Toe |
| P1000B004 | 2″ x 3″ Nipple-Toe |
| P1003A002 | 3/4″ Elbow 90 |
| P1007A003 | 3/4″ Elbow St. 90 |
| P1013A002 | 2″ Union Coupler |
| P511A013 | HF-63″ x 46″ SC Brake Axel 6000 lb. |
| P512A006 | H202 Hanger Kit |
| P514A018 | Tire Assy |
| P531A004 | Chain with Clevis-Slip Hook |
| P551A001 | 5000 lb. Jack w/ Mount |
| P551A002 | Receiver Tube-Female Weld-On |
| P553A012 | 5/8″ x 4 1/2″ Hitch Bolt |
| P553A013 | 5/8″ Hitch Nut |
| P646A003 | 3″ Lunette Eye |
| P651A001 | 1/2″ Romex Connector Wire Clamp |
| P651A002 | 1/2″ Romex Emt. Conduit Clamp |
| P941A012 | Electrical Box, Ext. Duplex |
| P941A026 | Lid, Electrical Box |
| P472A004 | Hyd Valve |
| P474A017 | Hyd Motor |
| P428A001 | Sprocket |
| P397A002 | 2″ Ball Valve |
| P397A013 | 1″ Ball Valve |
| P909A008 | 1″ Ports Small Filter Head |
| P1003A002 | 3/4″ Elbow 90 |
| P1003A006 | 1 1/4″ Elbow 90 |
| P1007A003 | 3/4″ St. Elbow 90 |
| P1008A003 | 3/4″ Plug |
| P1012A003 | 3/4″ Hose Adaptor |
| P1012A004 | 1″ Hose Adaptor |
| P1012A005 | 1 1/4″ Hose Adaptor |
| P560A017 | 3/4″ NPT Hyd Elbow St. 90 |
| P560A042 | 3/4″ M NPT – 1/2″ F NPT Hyd Elbow Red St. 90 |
| P560A050 | 1″ NPT Hyd Close Nipple |
| P560A052 | 1″ NPT Hyd Elbow St. 90 |
| P565A004 | 1/2″ M NPT 3/8 JIC Hyd Elbow 90 |
| P1014A035 | 1/2″ x 2″ Bolt |
| P1017A005 | 1/2″ Washer |
| P1021A002 | 1/2″ Lock Nut |
| P640A061 | Pump-Aro 1 1/2 |
| P397A001 | 3/4″ Ball Valve |
| P397A002 | 2″ Ball Valve |
| P397A012 | 1 1/4″ Ball Valve |
| P1000A003 | 2″ Nipple-Close |
| P1000A010 | 3/4″ Nipple-Close |
| P1000A022 | 1 1/4″ Nipple-Close |
| P1000A028 | 1 1/2″ Nipple-Close |
| P1000A030 | 1 1/2″ x 3″ Nipple |
| P1005A009 | 1 1/2″ Tee |
| P1007A005 | 1 1/4″ Elbow St. 90 |
| P1007A006 | 1 1/2″ Elbow St. 90 |
| P1008A009 | 1 1/2″ Plug |
| P1009A011 | 2″ x 1 1/4″ x 1 1/4″ Tee |
| P1010A014 | 2″ x 1 1/2″ Bushing Reducer |
| P1010A021 | 1 1/4″ x 3/4″ Reducer |
| P1012A005 | 1 1/4″ Hose Adapter |
| P1052A001 | 2″ Cross |
| P30003C | Med. Surge Tank |
| P464A002 | Gas Cap |
| P466A001 | Battery |
| P475B005 | 38″ Cable |
| P735A047 | Filter/Regulator Kit |
| P908A003 | Small Hyd Filter |
| P518A004 | Break Away Kit |
| P562A005 | Hyd Hose End |
| P563A003 | Hyd Hose End |
| P564A002 | Hyd Hose End |
| P567A006 | Hyd Fitting |
| P1023A004 | #12 Hose Clamp |
| P1023A005 | #16 Hose Clamp |
| 3/8″ x 45″ Hyd Hose | |
| 1 1/4″ x 35″ Low Pressure Hose | |
| 3/4″ x 29″ Low Pressure Hose | |
| 1″ x 26″ Suction Hose | |
| 3/8″ x 36″ Hyd Hose |
E1160 TR-300 SandPup
| Part Number | Description |
|---|---|
| P640A060 | 1″ Pump-Aro |
| P735A046 | Filter/Regulator – Short Kit |
| P397A009 | 1/2″ Ball Valve, Brass |
| P397A013 | 1″ Ball Valve, Brass |
| P398A001 | 1/2″ Check Valve, Brass |
| P1000A004 | 1/2″ Close Nipple |
| P1000A011 | 3/4″ x 2″ Nipple |
| P1000A016 | 1″ Close Nipple |
| P1000A018 | 1″ x 3″ Nipple |
| P1003A002 | 3/4″ Elbow 90 |
| P1005A003 | 1″ Tee |
| P1006A003 | 1″ Elbow St. 45 |
| P1007A002 | 1/2″ Elbow St. 90 |
| P1007A004 | 1″ Elbow St. 90 |
| P1008A004 | 1″ Plug |
| P1009A010 | 1″ x 1/2″ x 1″ Reducing Tee |
| P1010A009 | 1″ x 3/4″ Bushing Reducer |
| P560A006 | 1/4″ Hyd Close Nipple |
| P709C000 | 1/2″ x 18″ Air Hose, Black |
| P1012A011 | 5/8″ Hose x 1/2″ NPT Hose Adapter, Brass |
| P30003E | Small Surge Tank |
| P50147B004 | Quart Strainer Basket |
| P71001A004 | 1″ Plate-Sandpup Pump |
| P3165A001 | Decal-Gasoline |
| P3161A015 | Decal-SandPup |
| P3175A000 | Decal-Warning Pressure |
| P474A003 | Hyd Motor |
| P426A006 | 1″ x 1/4″ Sprocket |
| P426A014 | 1 1/4″ x 3/8″ Sprocket |
| P1010A013 | 2″ x 1″ Bush Reducer |
| P432A002 | 1″ – 2 Hole Flange Bearing |
| P1000C001 | 2″ x 18″ Nipple |
| P1003A002 | 3/4″ Elbow 90 |
| P1007A003 | 3/4″ St. Elbow 90 |
| P1038A000 | #40 Roller Chain – 4 ft. |
| P1035A001 | #40 Master Link |
| P50000A001 | 1″ Handle w/ Shaft |
| P50000A005 | Upper Chain Guard-Hand |
| P50000A006A | Lower Chain Guard |
| P72000B069 | Water Tank Stop |
| P432A003 | 1 1/4″ – 2-Hole Flange Bearing |
| P50137B009 | 1 1/4″ 2-Hole Neoprene Seal |
| P399A004 | 2″ Gate Valve |
| P101A013 | 2″ x 1″ Bush Reducer |
| P1000B001 | 3/4″ x 3″ Toe Nipple |
| P1000B004 | 2″ x 3″ Toe Nipple |
| P1001A013 | 2″ x 1″ Reducer Coupling |
| P1012A004 | 1″ Hose Adapter |
| P511A034 | 6000 lb. Torflex Axle |
| P513A029 | Axle Mounting Kit |
| P514A017 | Tire and Wheel Assy. |
| P579A003 | 1/2″ Lug Nut |
| P551A001 | 5000 lb. Jack |
| P551A002 | Tube-Female Weld On |
| P531A004 | 3/8″ Chain w/ Clevis Slip Hook |
| P553A007 | Adjustable Channel Bracket |
| P651A001 | 1/2″ Romex Connector |
| P651A002 | 1/2″ Romex Emt. |
| P941A012 | 2″ x 4″ Std. Electrical Box |
| P941A026 | Cover-Elec. Box |
| P1014A036 | 1/2″ x 2 1/2″ Hex HD Bolt |
| P1021A002 | 1/2″ Locknut |
| P71001B005 | Compressor Clamp |
| P50137B008 | 1 1/4″ Bearing Plate |
| P458A045 | 5.5 HP Honda |
| P596A001 | 16.45 gal. Water Tank |
| P601A025 | Hyd Pump |
| P630A035 | 3/4″ x 3/16″ Key Coupling, Half |
| P630A032 | 1″ x 1/4″ Key Coupling, Half |
| P631A005 | Small Coupling Insert |
| P754B026 | 3/4″ x 75 ft. Spray Hose |
| P901A001 | Hose Reel-Manual |
| P1008A012 | PVC Plug |
| P1010A009 | 1″ x 3/4″ Bushing Reducer |
| P1012A004 | 1″ Hose Adapter |
| P50273B | 5 ft. Spray Wand |
| P518A004 | Break a Way Kit |
| P516A016 | Tail Light-Left |
| P516A017 | Tail Light-Right |
| P516A018 | License Plate Bracket |
| P437A007 | 1″ Insulated Clamp |
| P562A005 | 1/2″ Hyd Hose End Fitting |
| P564A002 | 1/2″ Hyd Hose End Fitting |
| P564A006 | 3/4″ Hyd Hose End Fitting |
| P565A004 | 1/2″ NPT-3 Hyd Fitting, Elbow 90 |
| P1012A011 | 1/2″ x 5/8″ Brass Hose Adapter |
| P482A012 | 1″ x 53″ Long Bellowflex Hose – 53″ |
| P701A000 | 1/2″ Hyd Hose, High Pressure |
| P712A000 | 3/4″ x 99″ Hose, Low Pressure |
| P715C000 | 1″ Hose, Suction |
| P713B000 | 3/4″ Hose, Spray |
| 3/4″ Spring – AR | |
| P1023A003 | #10 SS Hose Clamp |
| P1023A004 | #12 Hose Clamp |
| A2515 | 4″ x 18″ SealMaster Decal |
| A3280 | 13 1/2″ x 38″ SealMaster Decal |
| P3162A017 | Decal-TR-300 |
| P3160B002 | Decal-Moving Parts Warning |
| P475C001 | Tie Wraps – AR |
E1380 SK-300 SandPup Handcrank
| Part Number | Description |
|---|---|
| P397A002 | 2″ Ball Valve |
| P639A001 | 18″ Manhole Cover |
| P1000A003 | 2″ Close Nipple |
| P1000B001 | 3/4″ x 3″ Nipple-Toe |
| P1000B004 | 2″ x 3″ Nipple-Toe |
| P1001A013 | 2″ x 1″ Reducer Coupling |
| P1012A004 | 1″ Hose Adapter |
| P553A007 | Adjustable Channel Bracket |
| P432A003 | 1 1/4″ 2-Hole Flange Bearing |
| P50137B009 | 1 1/4″ 2-Hole Neoprene Seal |
| P50137B008 | 1 1/4″ 2-Hole Bearing Plate |
| P397A002 | 2″ Ball Valve, Brass |
| P1003A002 | 3/4″ Elbow 90 |
| P1007A003 | 3/4″ St. Elbow 90 |
| P432A002 | 1″ 2-Hole Flange Bearing |
| P426A006 | 1″ x 1/4″ Sprocket |
| P426A014 | 1 1/4″ x 3/8″ Sprocket |
| P1035A001 | #40 Master Link |
| P1038A000 | #40 Roller Chain – 4 ft. |
| P50000A001 | 1″ Handle w/ Shaft |
| P50000A005 | Upper Chain Guard |
| P50000A006A | Lower Chain Guard |
| P72000B069 | Water Tank Stop |
| P640A060 | 1″ Pump-Aro |
| P735A046 | Filter/Regulator Short Kit |
| P397A001 | 3/4″ Ball Valve, Brass |
| P397A009 | 1/2″ Ball Valve, Brass |
| P398A001 | 1/2″ Brass Check Valve |
| P1000A004 | 1/2″ Close Nipple |
| P1000A010 | 3/4″ Nipple-Close |
| P1000A011 | 3/4″ x 2″ Nipple |
| P1000A016 | 1″ Nipple-Close |
| P1000A018 | 1″ x 3″ Nipple |
| P1003A002 | 3/4″ – 90 Degree Elbow |
| P1006A003 | 1″ – 45 Degree St. Elbow |
| P1007A002 | 1/2″ – 90 Degree St. Elbow |
| P1007A004 | 1″ St. Elbow 90 |
| P1009A010 | 1″ x 1/2″ x 1″ Reducing Tee |
| P1009A001 | 1″ x 3/4″ x 3/4″ Reducing Tee |
| P1012A004 | 1″ Hose Adapter |
| P560A006 | 1/4″ Hyd Close Nipple |
| P709C000 | 1/2″ x 18″ Black Air Hose |
| P30003E | Small Surge Tank |
| P50147B004 | Quart Strainer Basket |
| P71001A004 | Plate-SandPup 1″ Pump |
| P1012A011 | 1/2″ x 5/8″ Brass Hose Adapter |
| P3165A001 | Decal-Gasoline |
| P3161A005 | Decal-SandPup |
| P3175A000 | Decal-Warning Pressure |
| SandPup Sub Assembly | |
| P596A001 | 16.45 Gal Water Tank |
| P754B026 | 3/4″ x 75 ft. Spray Hose Sub Assy |
| P901A001 | Hose Reel-Manual |
| P1008A012 | PVC Plug |
| P1010A009 | 1″ x 3/4″ Bushing Reducer |
| P1012A004 | 1″ Hose Adapter |
| P50273B | 5 ft. Spray Wand |
| P437A005 | 1/2″ Insulated Clamp |
| P564A005 | 1″ Hyd Hose End Fitting |
| P715A000 | 1″ x 99″ Hose, Low Pressure |
| P715C000 | 1″ Hose, Suction |
| P1023A003 | #10 Hose Clamp |
| P1023A004 | #12 Hose Clamp |
| P71001B005 | Compressor Clamp |
| P410A001 | Owner’s Manual Box |
| A2515 | 4″ x 18″ SealMaster Decal |
| A3280 | 13 1/2″ x 38″ SealMaster Decal |
| P3162A017 | Decal-TR-300 |
| P3160B002 | Decal-Moving Parts Warning |
| Decal-Do Not Remove Until… | |
| T1145 | 40″ Brush Water Box |
| P1014A009 | 5/16″ x 1″ Hex Bolt |
| P1017A001 | 1/4″ Flat Washer |
| P1021A005 | 5/16″ Nut, Nylock |
