Sealcoating Equipment | Sealcoat Spray Tanks | Sealcoat Spray Equipment | Sealcoating Tanks | Sealcoat Spray Systems | Skid Mounted Sealcoating Machines
SealMaster sealcoat tanks set the industry standard for skid mount sealcoat spray applicator tanks. SealMaster skid mounted sealcoat spray units are available in several sizes with many options to choose from. SealMaster sealer spray units are designed to mix and apply pavement sealers with and without sand added. SealMaster sealcoat spray systems have set the sealcoating equipment industry standards for quality, performance and durability for over 40 years.

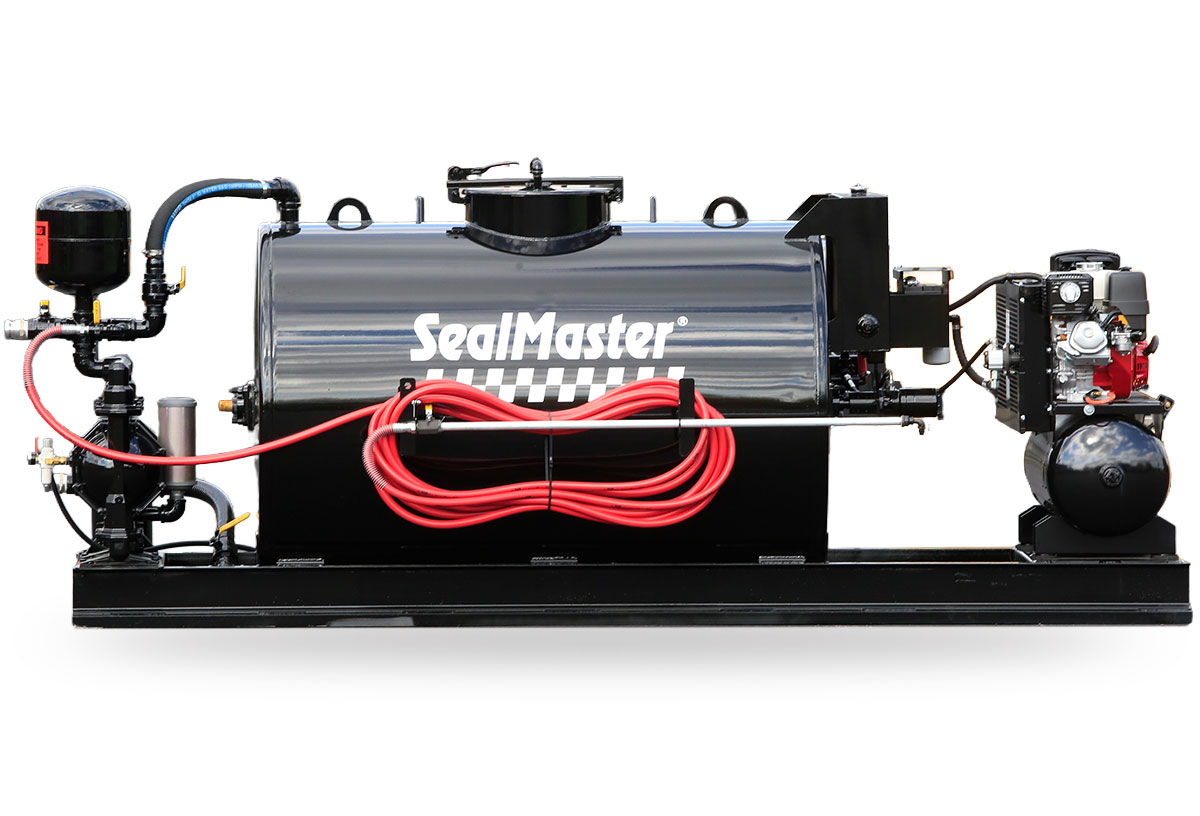

SK 575 SprayMaster with Pro-Air System
A 575 gallon, skid mounted sealcoat spray system applicator
SK 575 SprayMaster Standard Features:
- 75-foot hose and spray wand
- Dependable Low Maintenance Air-driven Dual Diaphragm Material Pump-shifts to neutral automatically when wand or spray bar is shut off. Sprays pavement sealers with sand loadings at 50 GPM.
- Direct-Drive Forward Reverse Full-sweep Agitation with Rubber Wiper Blades
- 13 H.P. Honda Engine
- One Gallon Basket Strainer
SK 575 SprayMaster Optional Features:
- Hand operated hose real
- Electric Hose Reel
- Maxx-Air 2-inch Air Diaphragm Material Pump with 20HP compressor
- 50 gallon water tank
- Water Cooler
- Night Work Lights
- Brush water box
- Manually operated spray bar
- Hydraulically operated spray bar (SandPumper II system only)
- SandPumper II hydraulically driven material pump system
Specifications:
- Engine: 13 H.P. Honda
- Material Pump:
– Type: Dual Diaphragm
– Inlet/Outlet: 1 1/2″ - Air Compresser:
– Engine: 13 H.P. Honda
– SCFM: 30 - Height: 60″
- Width: 48″
- Empty Weight: 2,240 lbs.
- Length: 12 feet
SK 750 SprayMaster with Pro-Air System
A 750 gallon, skid mounted sealcoat spray system applicator
SK 750 SprayMaster Standard Features:
- 75-foot hose and spray wand
- Dependable Low Maintenance Air-driven Dual Diaphragm Material Pump-shifts to neutral automatically when wand or spray bar is shut off. Sprays pavement sealers with sand loadings at 50 GPM.
- Direct-Drive Forward Reverse Full-sweep Agitation with Rubber Wiper Blades
- 13 H.P. Honda Engine
- One Gallon Basket Strainer
TR 750 SprayMaster Optional Features:
- Hand operated hose real
- Electric Hose Reel
- Maxx-Air 2-inch Air Diaphragm Material Pump with 20HP compressor
- 50 gallon water tank
- Water Cooler
- Night Work Lights
- Brush water box
- Manually operated spray bar
- Hydraulically operated spray bar (SandPumper II system only)
- SandPumper II hydraulically driven material pump system
Specifications:
- Engine: 13 H.P. Honda
- Material Pump:
– Type: Dual Diaphragm
– Inlet/Outlet: 1 1/2″ - Air Compresser:
– Engine: 13 H.P. Honda
– SCFM: 30 - Height: 68″
- Width: 56″
- Empty Weight: 2,350 lbs.
- Length: 12 feet

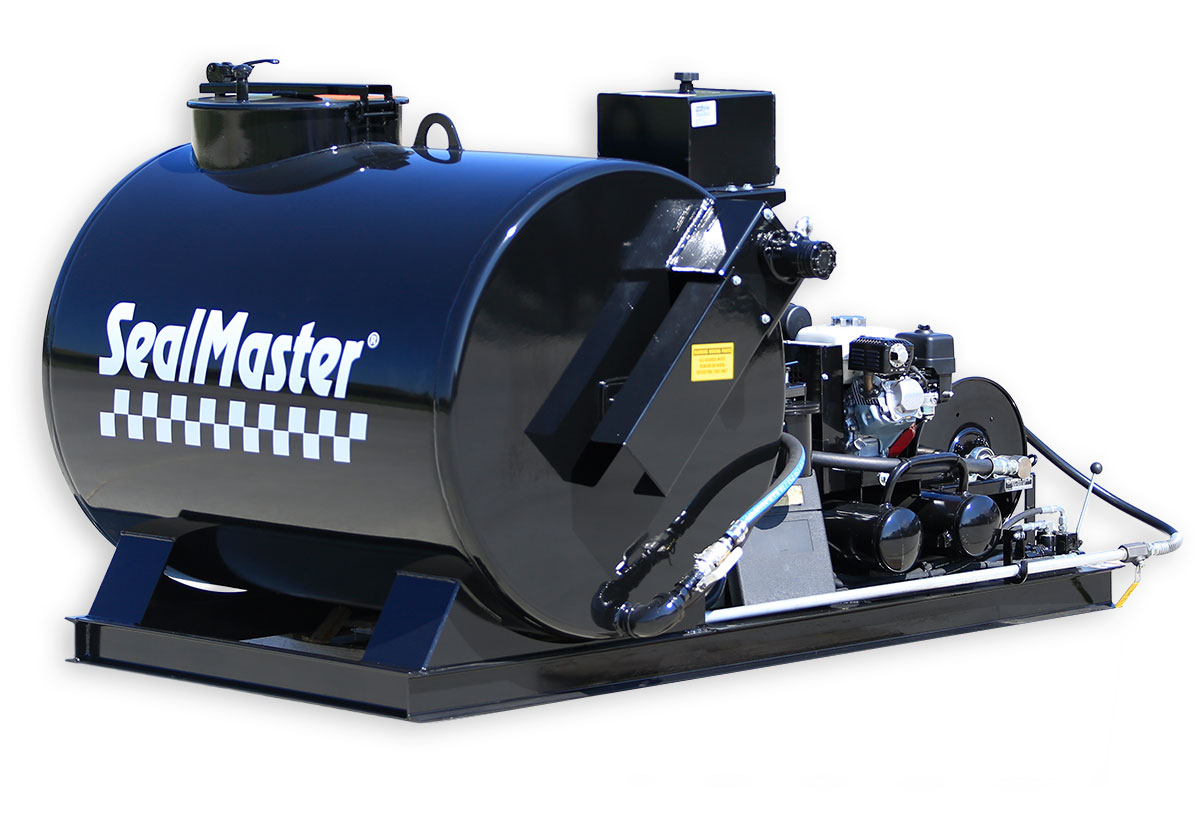

SK 300 SandPup Skid Unit
The Economical Way to Transport and Apply Pavement Sealers with Sand
SK 300 SandPup Skid Unit Standard Features:
- Air-Driven Dual Diaphragm Material Pump with Basket Strainer
- 75-foot Hose with Spray Wand Mounted (Includes Hose Reel)
- Gear-reduction hand Agitator with Full-Sweep Agitation
- Designed for 8-foot truck bed
Specifications:
- Height: 52”
- Width: 57”
- Length: 85”
- Weight: 1,400 lbs.
SK 1000 SprayMaster with Pro-Air System
A 1,000 gallon, skid mounted sealcoat spray system applicator
(Shown mounted to truck chassis with Custom Truck Mount Option)
SK 1000 SprayMaster Standard Features:
- 75-foot hose and spray wand
- Dependable Low Maintenance Air-driven Dual Diaphragm Material Pump-shifts to neutral automatically when wand or spray bar is shut off. Sprays pavement sealers • with sand loadings at 50 GPM.
- Direct-Drive Forward Reverse Full-sweep Agitation with Rubber Wiper Blades
- 13 H.P. Honda Engine
- One Gallon Basket Strainer
SK 1000 SprayMaster Optional Features:
- Hand operated hose real
- Electric Hose Reel
- Maxx-Air 2-inch Air Diaphragm Material Pump with 20 HP air compressor
- 50 gallon water tank
- Water Cooler
- Night Work Lights
- Brush water box
- Manually operated spray bar
- Hydraulically operated spray bar (SandPumper II system only)
- SandPumper II hydraulically driven material pump system
Specifications:
- Engine: 13 H.P. Honda
- Material Pump:
– Type: Dual Diaphragm
– Inlet/Outlet: 1 1/2″ - Air Compresser:
– Engine: 13 H.P. Honda
– SCFM: 30 - Height: 76″
- Width: 64″
- Empty Weight: 3,200 lbs.
- Length: 12 feet
– SCFM………………………. 14.6
– Engine…………………….. 5.5 HP
– PSIG………………………… 125
SK 1500 SprayMaster with Pro-Air System
A 1,500 gallon, skid mounted sealcoat spray system applicator
(Shown here mounted to truck chassis with Custom Truck Mount option)
SK 1500 SprayMaster Standard Features:
- 75-foot hose and spray wand
- Dependable Low Maintenance Air-driven Dual Diaphragm Material Pump-shifts to neutral automatically when wand or spray bar is shut off. Sprays pavement sealers with sand loadings at 50 GPM.
- Direct-Drive Forward Reverse Full-sweep Agitation with Rubber Wiper Blades
- 13 H.P. Honda Engine
- One Gallon Basket Strainer
SK 1500 SprayMaster Optional Features:
- Hand operated hose real
- Electric Hose Reel
- Maxx-Air 2-inch Air Diaphragm Material Pump with 20 HP air compressor
- 50 gallon water tank
- Water Cooler
- Night Work Lights
- Brush water box
- Manually operated spray bar
- Hydraulically operated spray bar (SandPumper II system only)
- SandPumper II hydraulically driven material pump system
Specifications:
- Engine: 13 H.P. Honda
- Material Pump:
– Type: Dual Diaphragm
– Inlet/Outlet: 1 1/2″ - Air Compresser:
– Engine: 13 H.P. Honda
– SCFM: 30 - Height: 76″
- Width: 64″
- Empty Weight: 3,700 lbs.
- Length: 14.5 feet
SK 2000 SprayMaster with Pro-Air System
A 2,000 gallon, skid mounted sealcoat spray system applicator
(Shown here mounted to truck chassis with Custom Truck Mount option)
SK 2000 SprayMaster Standard Features:
- 75-foot hose and spray wand
- Dependable Low Maintenance Air-driven Dual Diaphragm Material Pump-shifts to neutral automatically when wand or spray bar is shut off. Sprays pavement sealers with sand loadings at 50 GPM.
- Direct-Drive Forward Reverse Full-sweep Agitation with Rubber Wiper Blades
- 13 H.P. Honda Engine
- One Gallon Basket Strainer
SK 2000 SprayMaster Optional Features:
- Hand operated hose real
- Electric Hose Reel
- Maxx-Air 2-inch Air Diaphragm Material Pump with 20 HP air compressor
- 50 gallon water tank
- Water Cooler
- Night Work Lights
- Brush water box
- Manually operated spray bar
- Hydraulically operated spray bar (SandPumper II system only)
- SandPumper II hydraulically driven material pump system
Specifications:
- Engine: 13 H.P. Honda
- Material Pump:
– Type: Dual Diaphragm
– Inlet/Outlet: 1 1/2″ - Air Compresser:
– Engine: 13 H.P. Honda
– SCFM: 30 - Height: 76″
- Width: 64″
- Empty Weight: 4,200 lbs.
- Length: 17 feet
