Features
Standard features on the TR 575

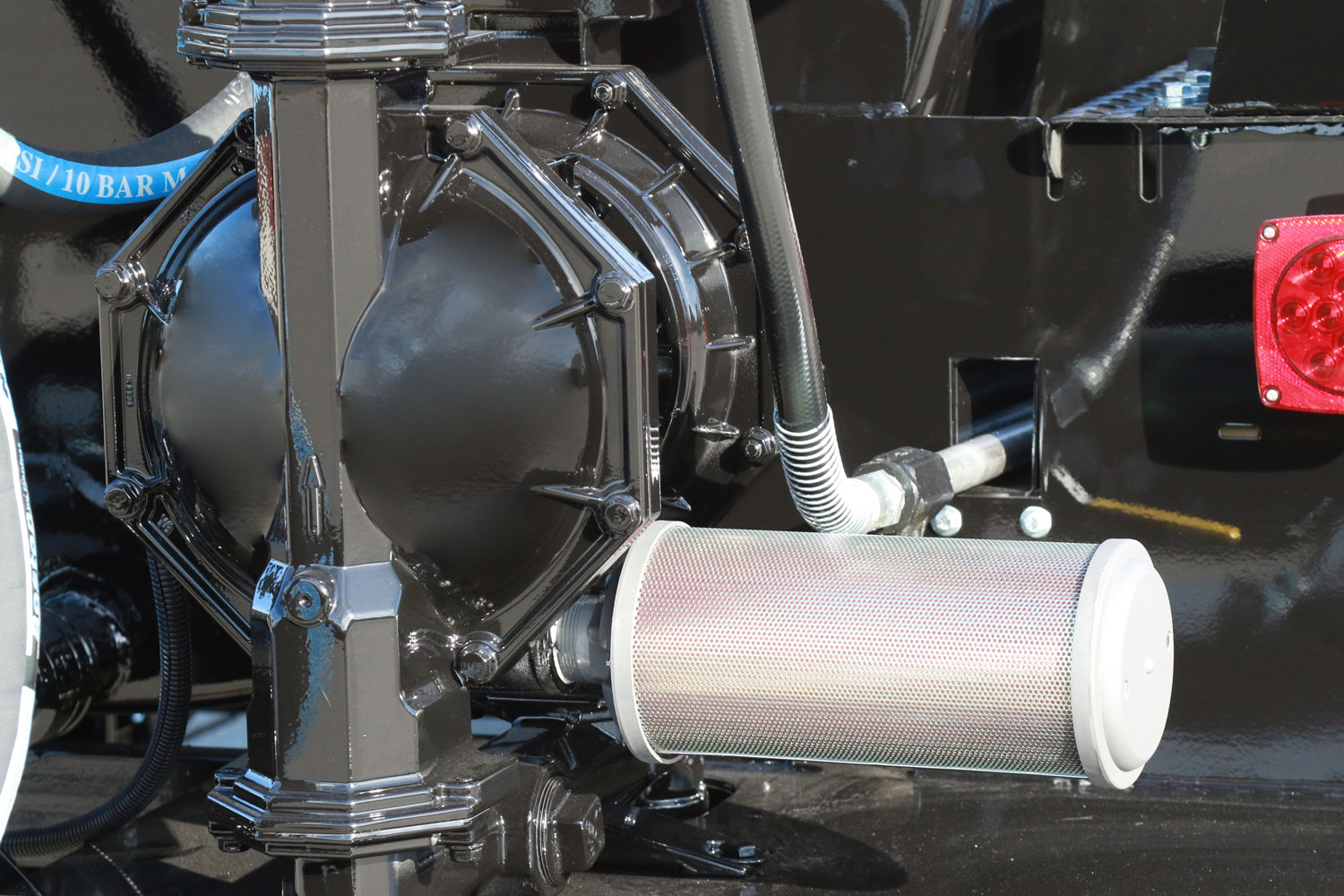

Reliable, Air-Driven Diaphragm Pump
- The low-maintenance, 2” dual diaphragm pump is built to handle heavy sand loads without clogging.
- It delivers the output needed to keep material moving, maximizing application speed on the job.

Automatic Neutral Safety Function
- When the wand or spray bar is turned off, the system seamlessly shifts to neutral.
Versatile Material Application
- The TR 575 is designed to mix and apply pavement sealers with and without sand.
- The added flexibility allows you to take on a wider range of jobs without needing multiple pieces of equipment.

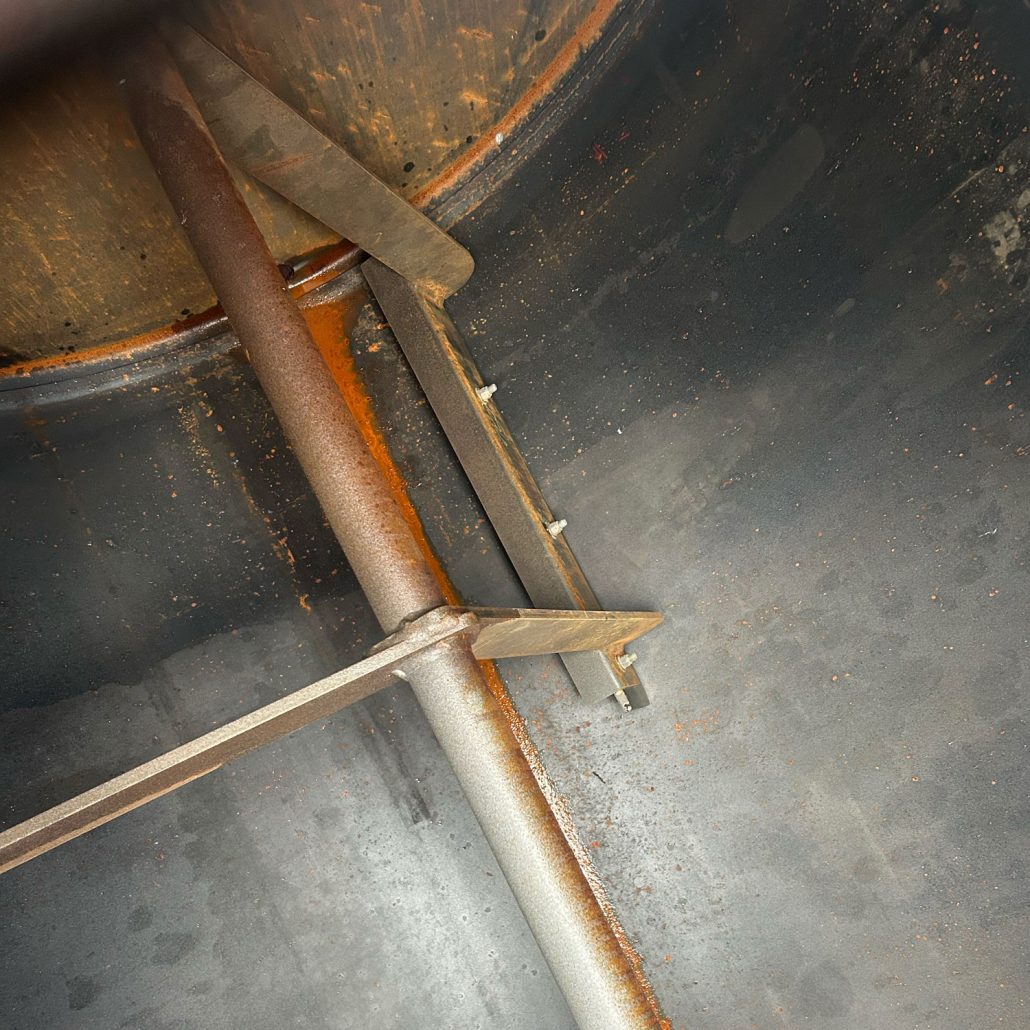

575-Gallon Tank with Full-Sweep Agitation
- The large tank features hydraulically controlled, full-sweep agitation to keep material properly mixed to prevent separation.
- The state-of-the-art design includes rubber wiper blades that prevent material buildup on the tank walls.
- The 575-gallon tank offers the ability to handle a range of job sizes while reducing refills and downtime.

Extended Reach Spray System
- The 75-foot hose provides the reach needed to cover larger areas without the hassle of frequent repositioning.

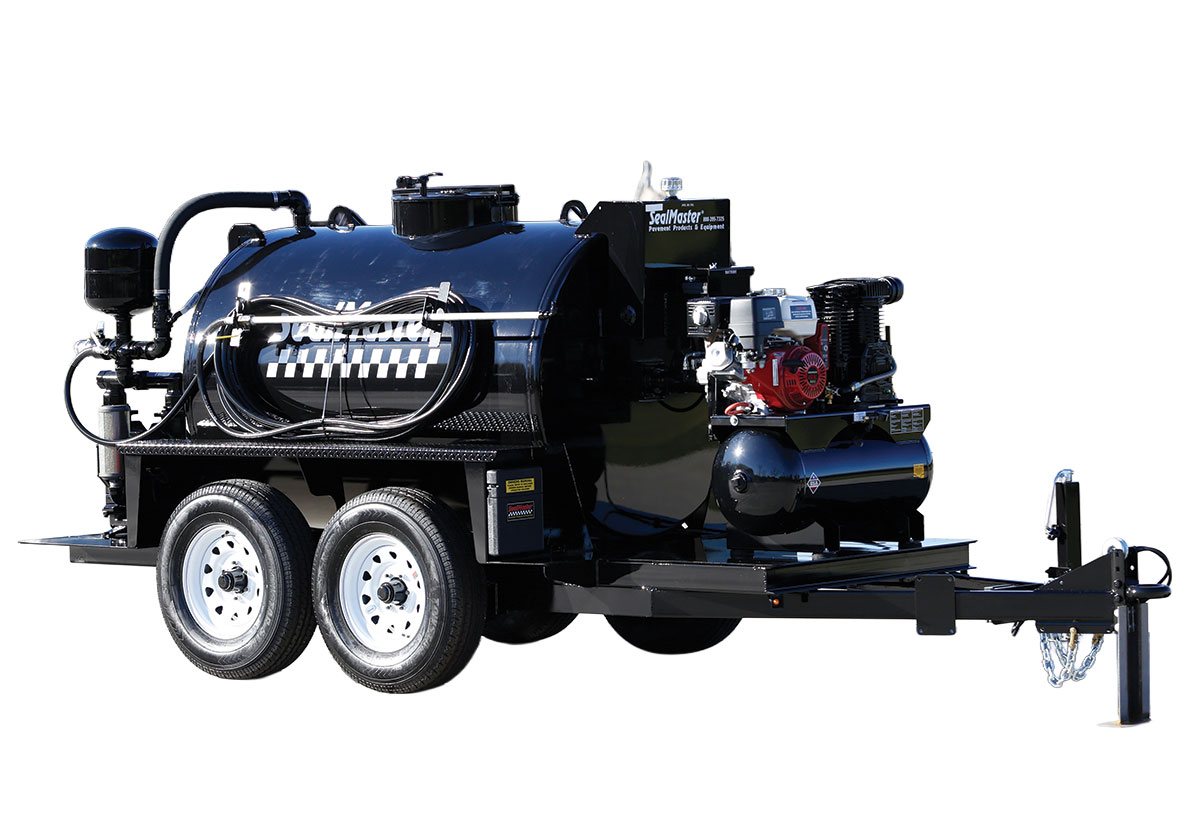

Superior Trailer Design
- This trailer is designed for stability and durability, featuring dual 6,000 lb. axles.
- Built to withstand the weight and demands of daily use, it provides reliable stability both on the road and at the jobsite.

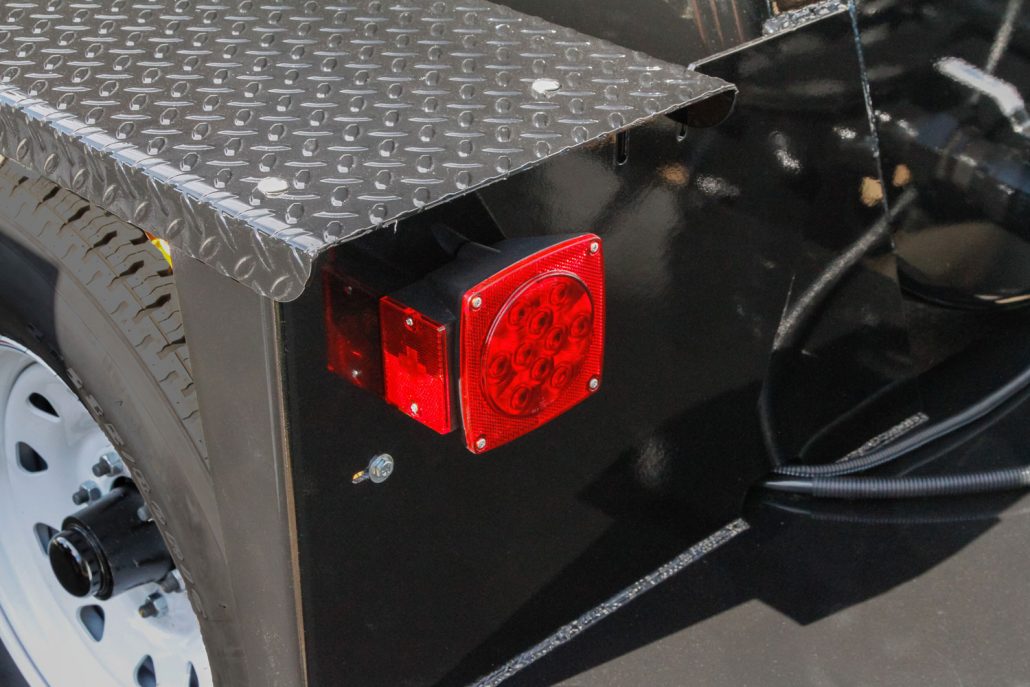

Built-In Safety and Lighting
- The TR 575 features advanced running lights, brake lights and a reliable break-away system for safe transport.

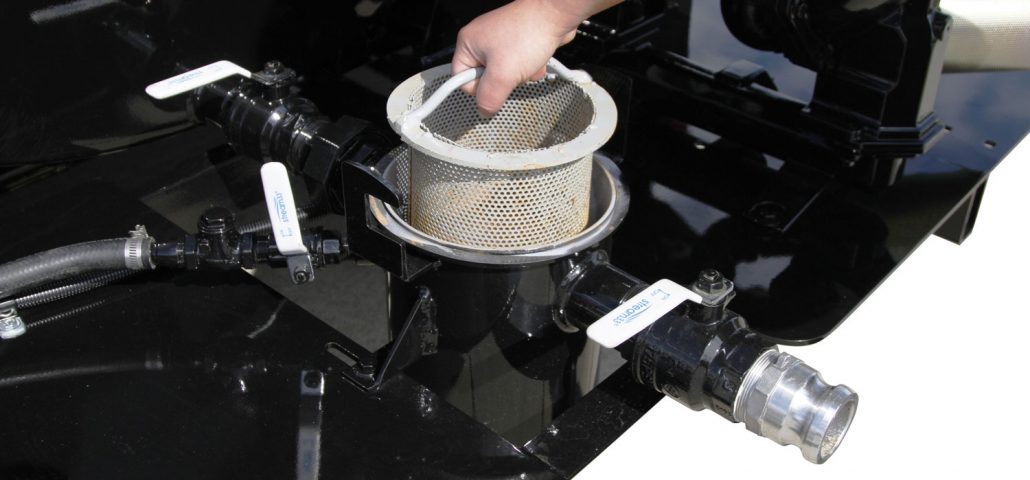

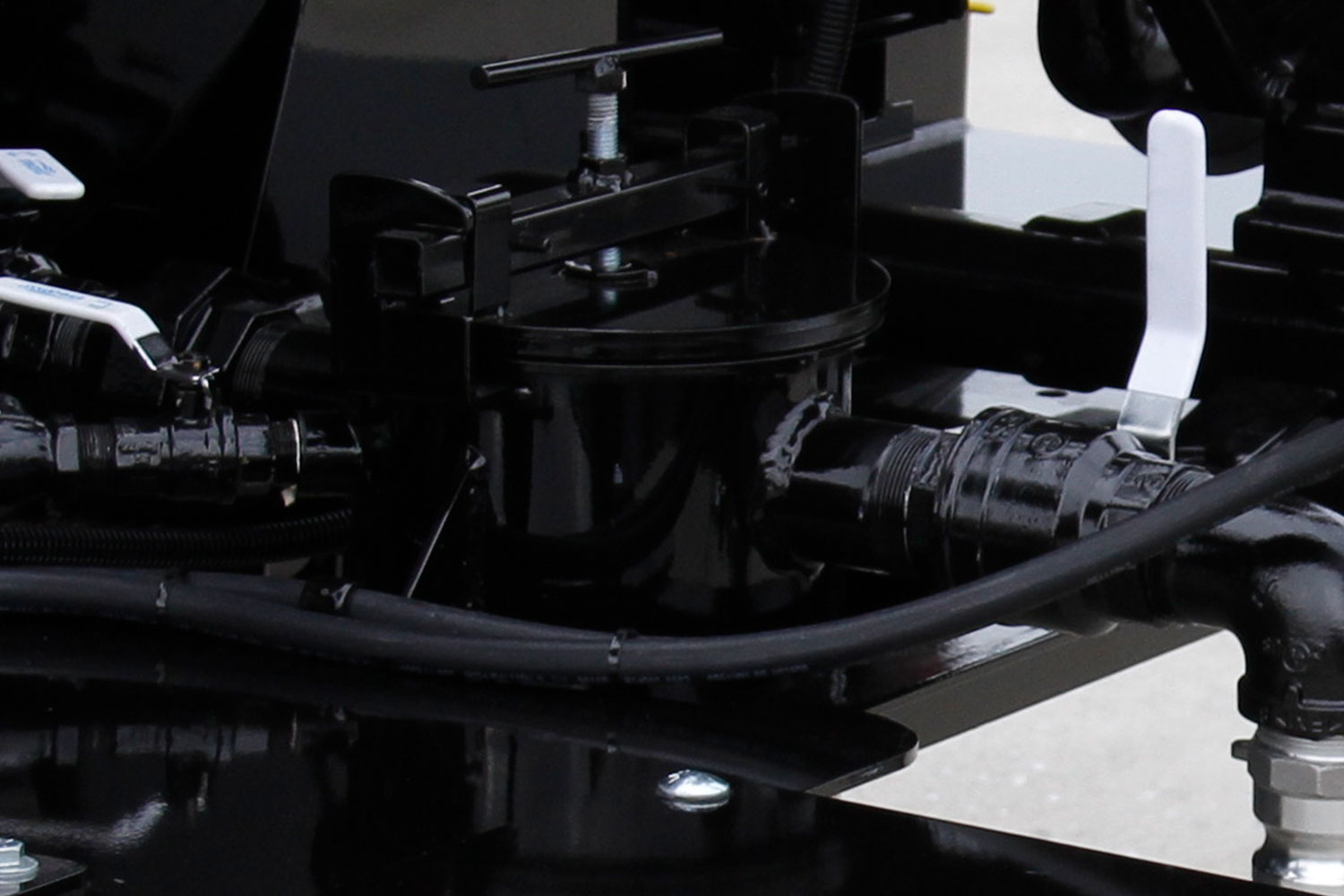

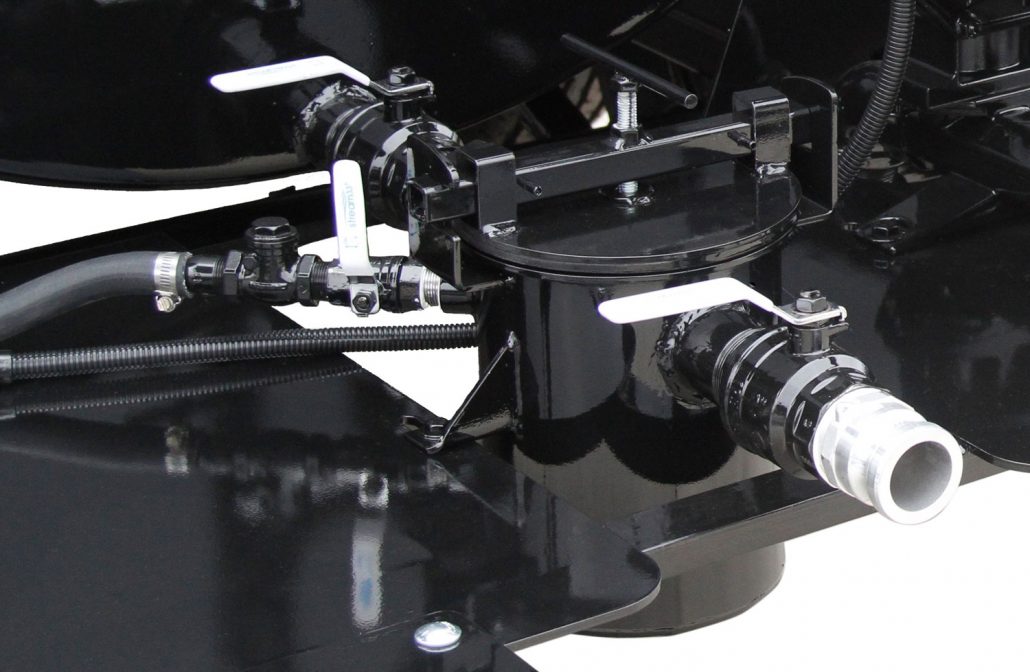

Efficient Filtration System
- The advanced filtration system features a one-gallon basket strainer designed to keep debris and contaminants out of your system.
- Reduces the risk of clogs and protects key components, helping you avoid unnecessary downtime.

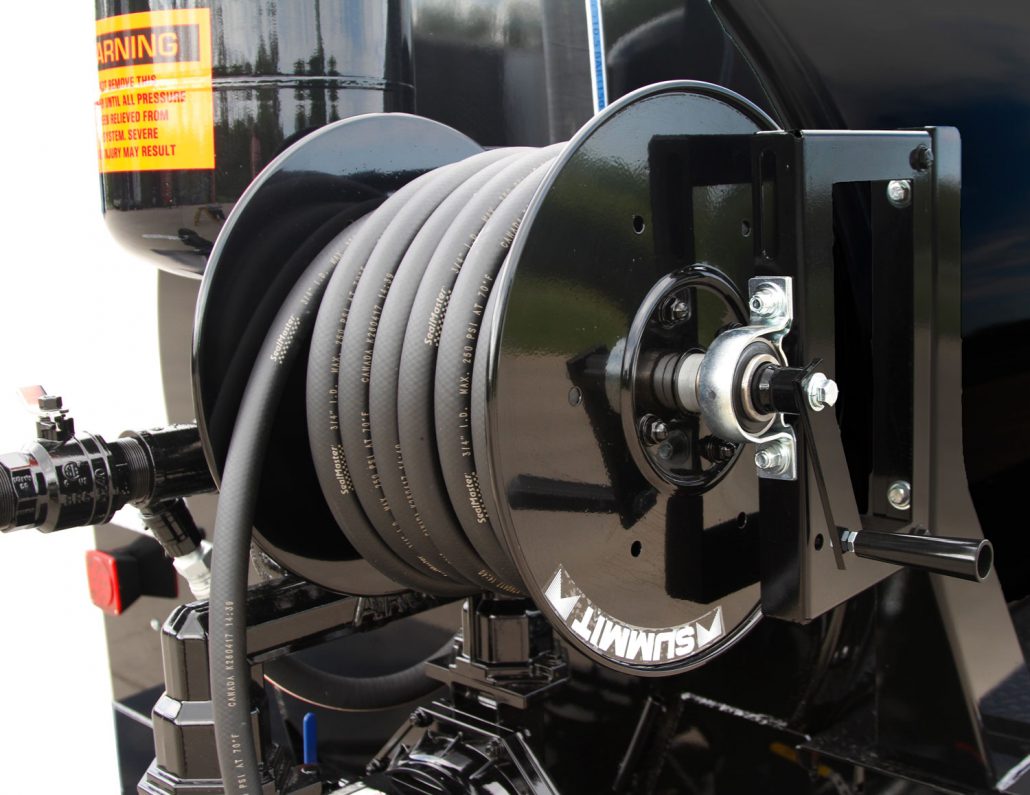

Manual Hose Reel Control
- The hand-operated hose reel makes it easy to pull out and rewind your hose during and after use.
- Keeping the hose controlled helps prevent tangling and damage, while speeding up cleanup between jobs.

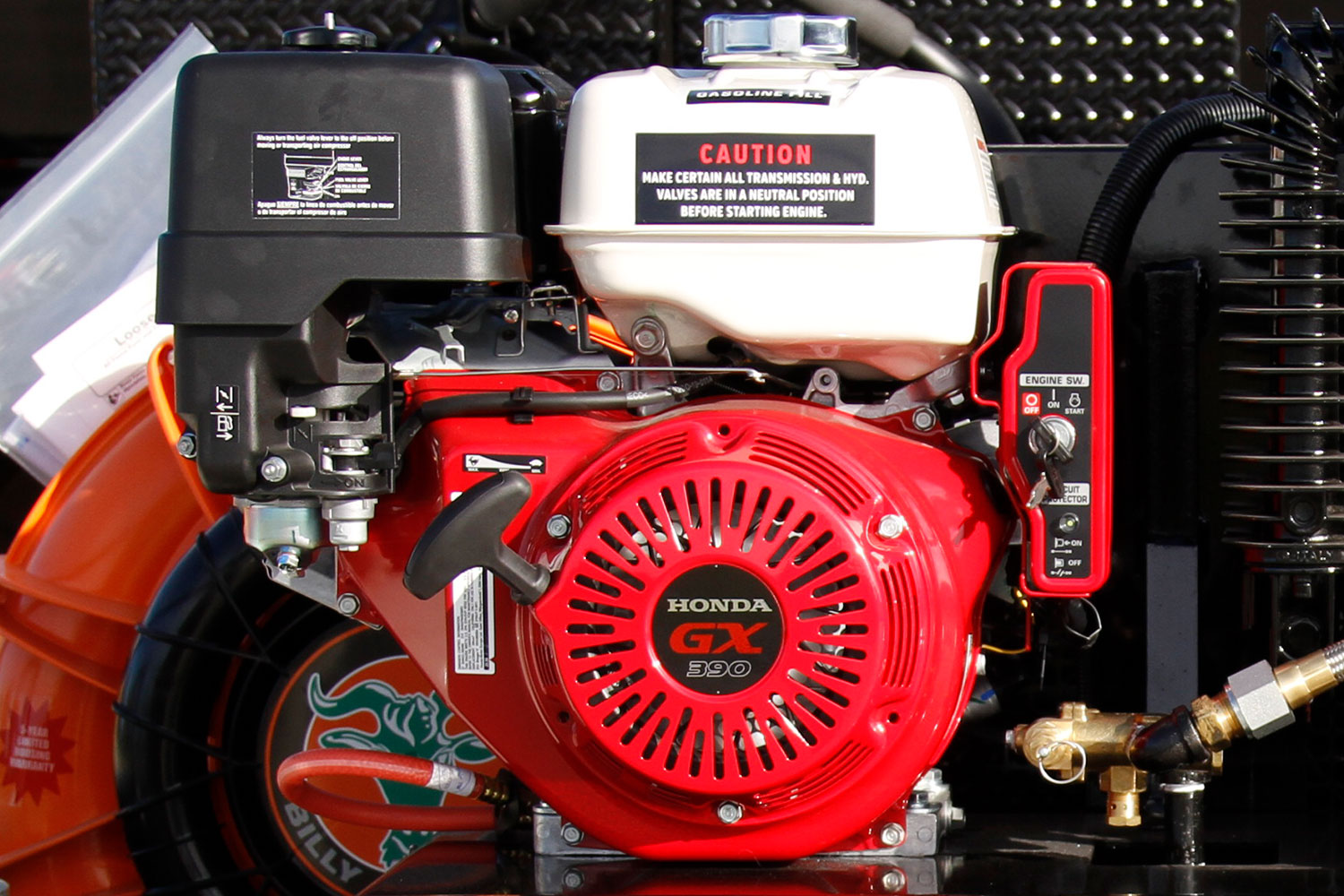

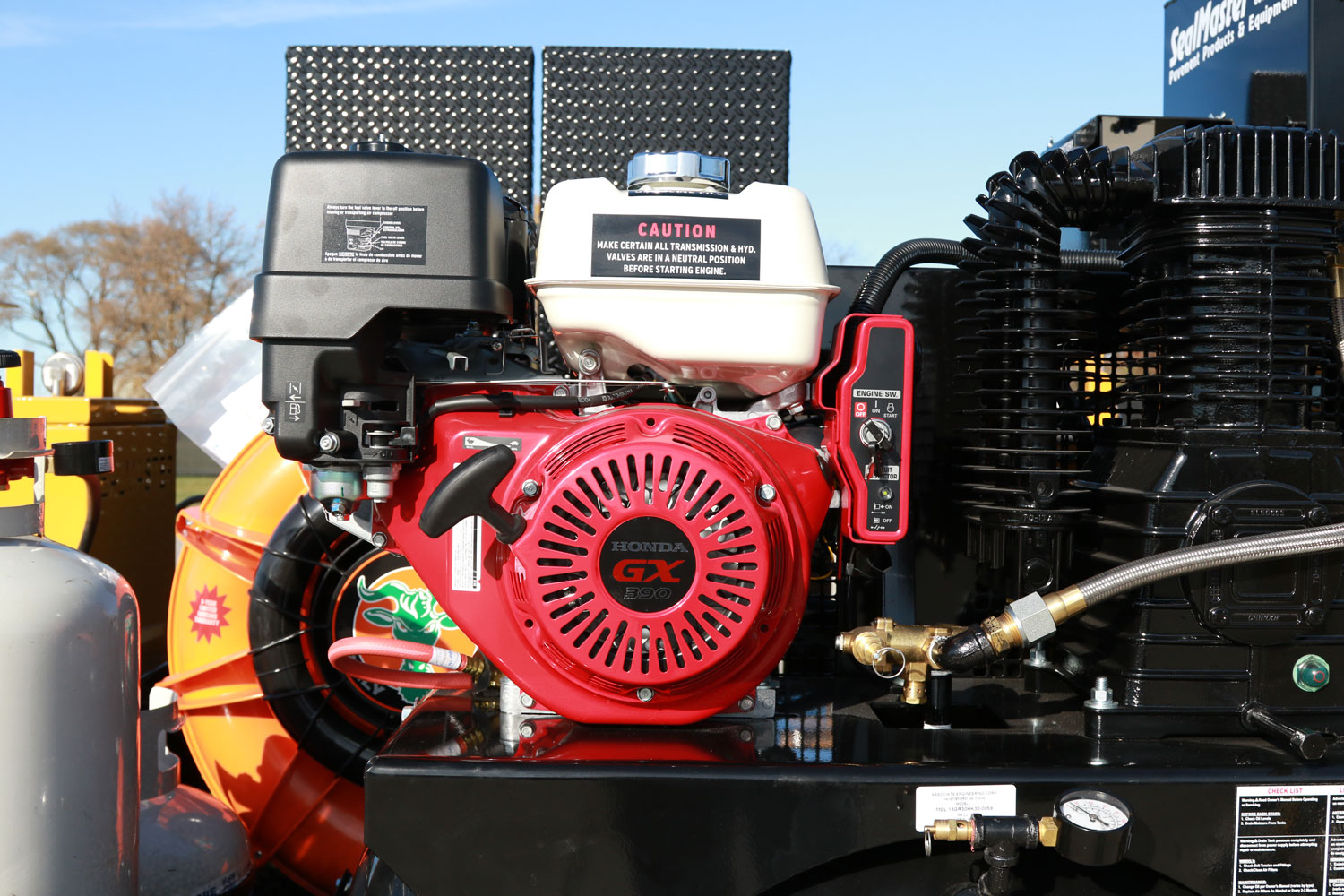

Honda GX390 Engine

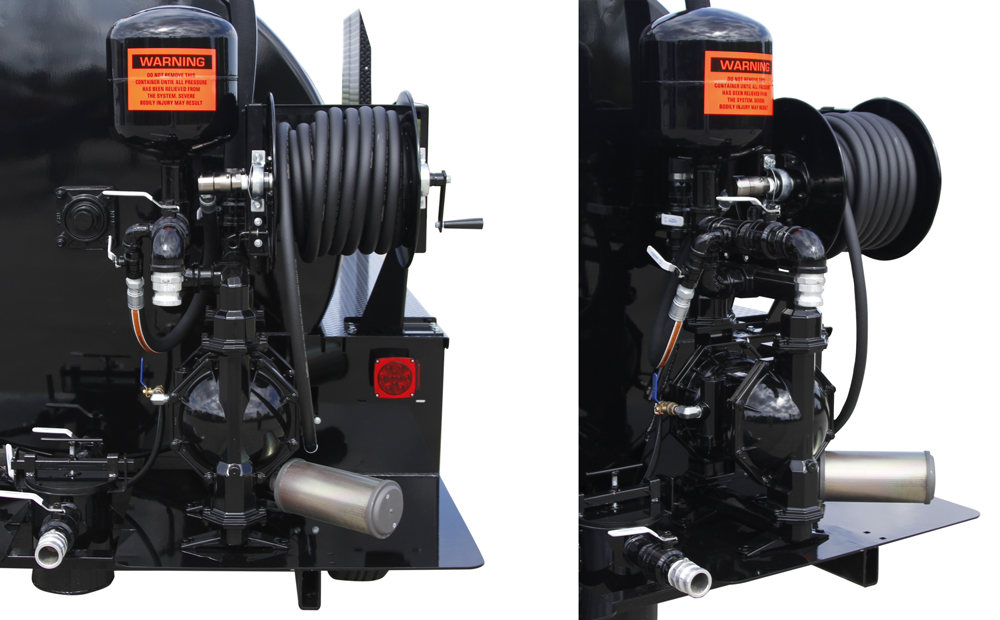

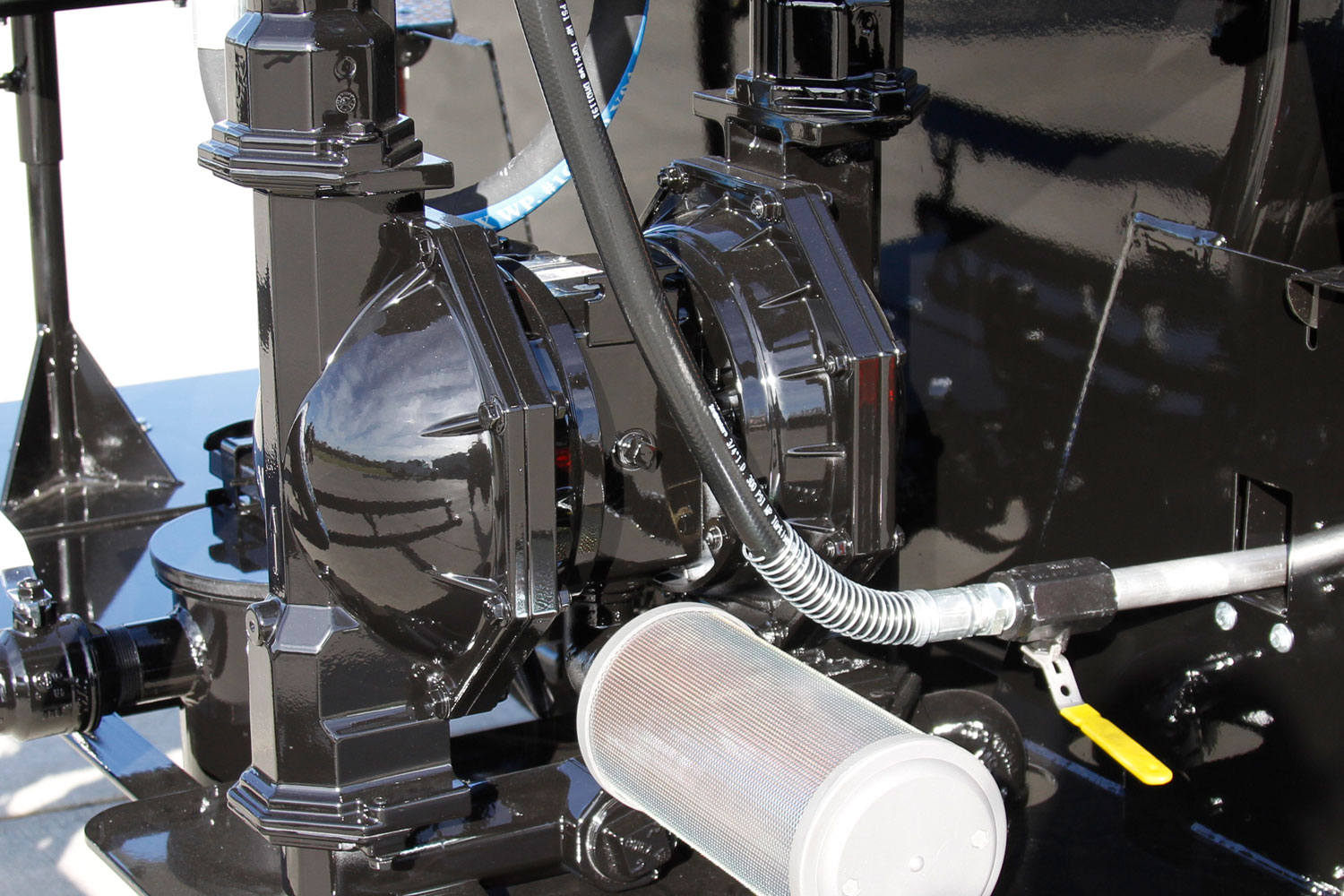

Dual Diaphragm Material Pump

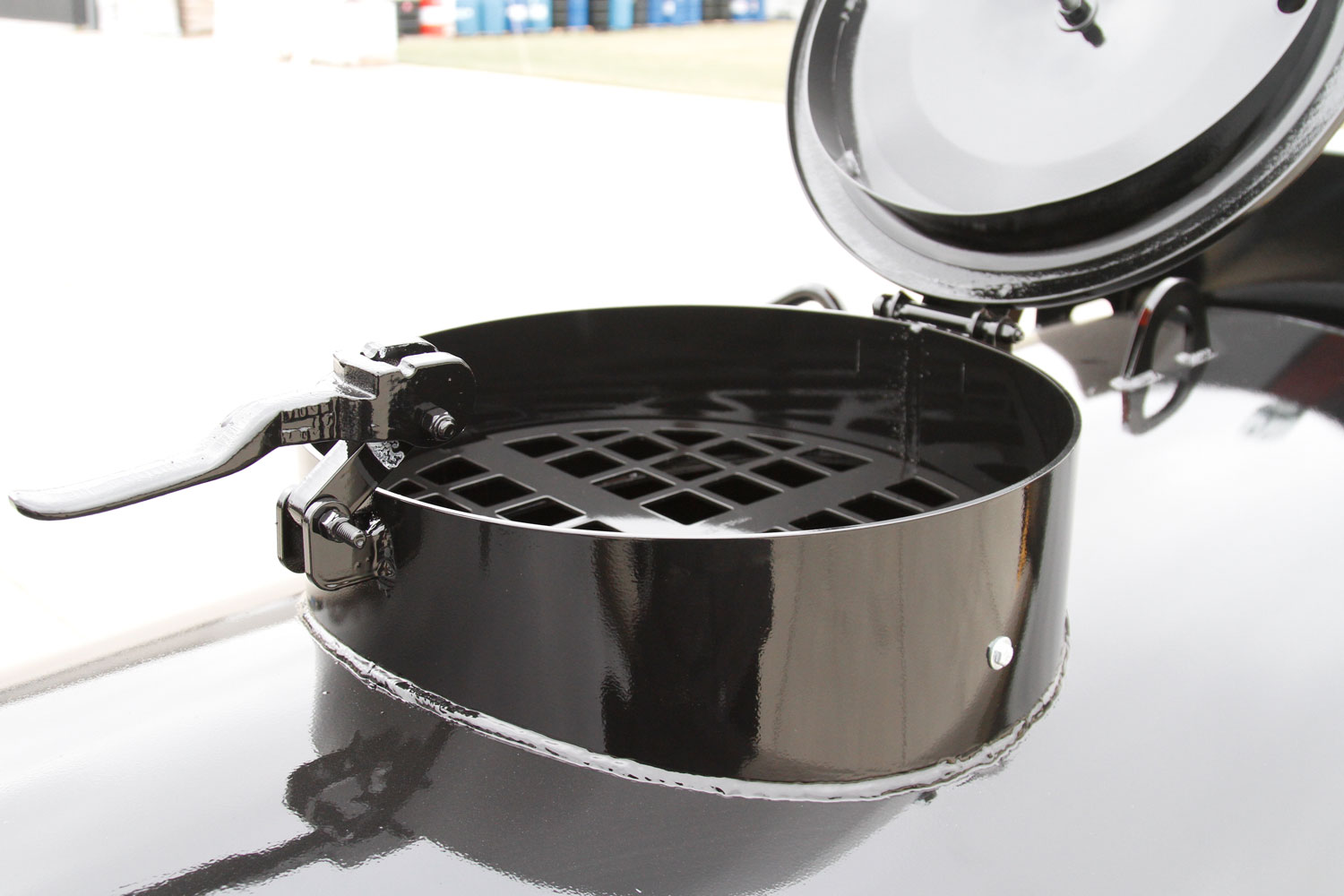

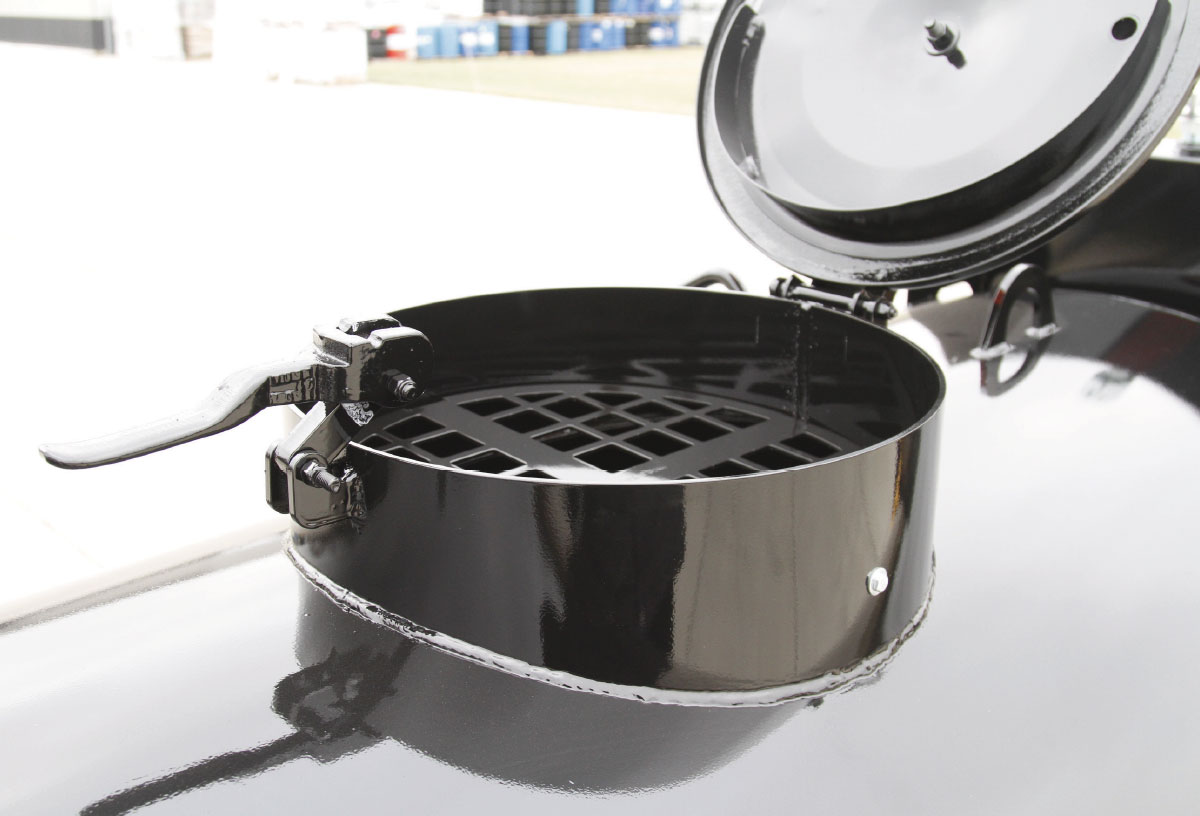

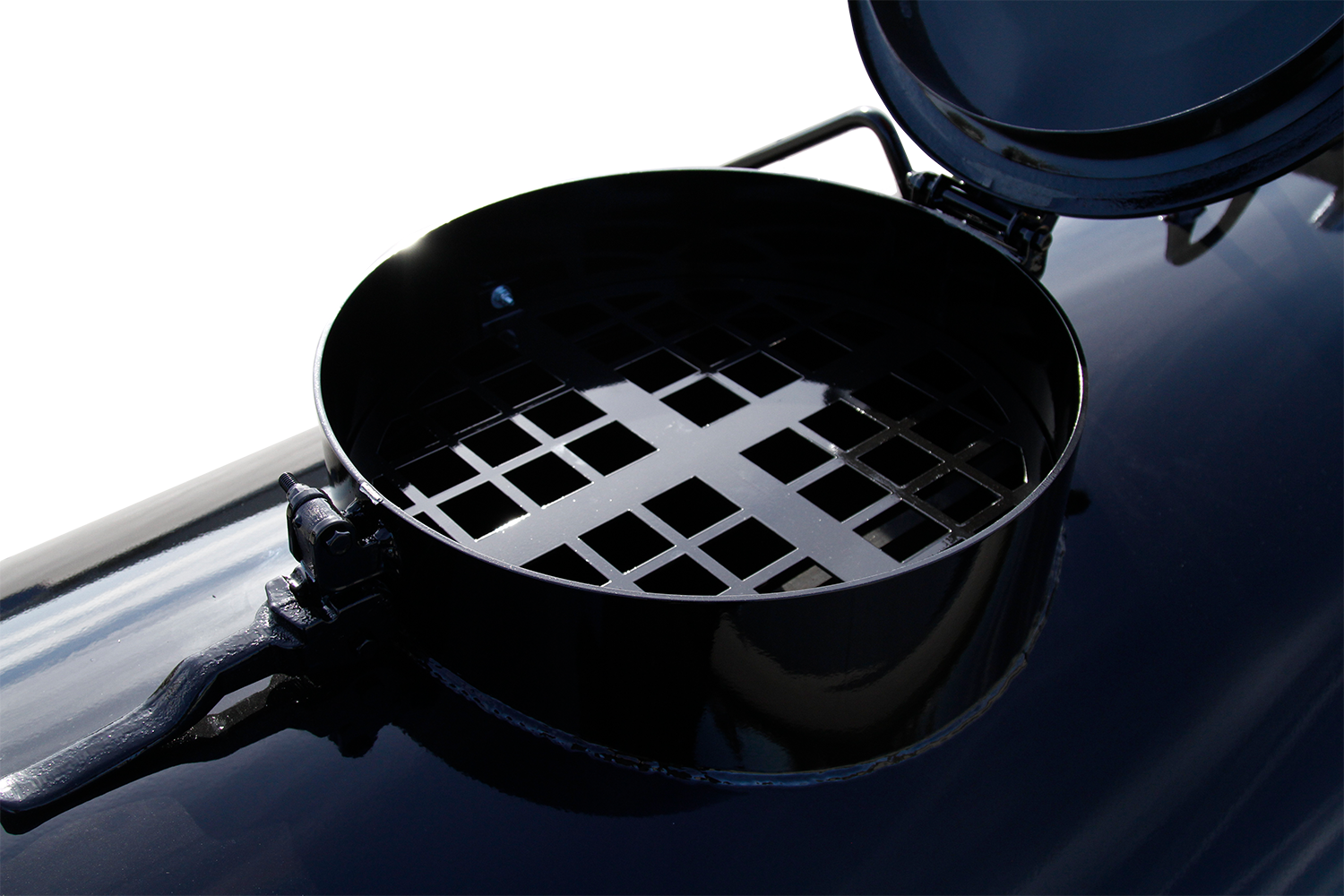

Manhole with Safety Grate

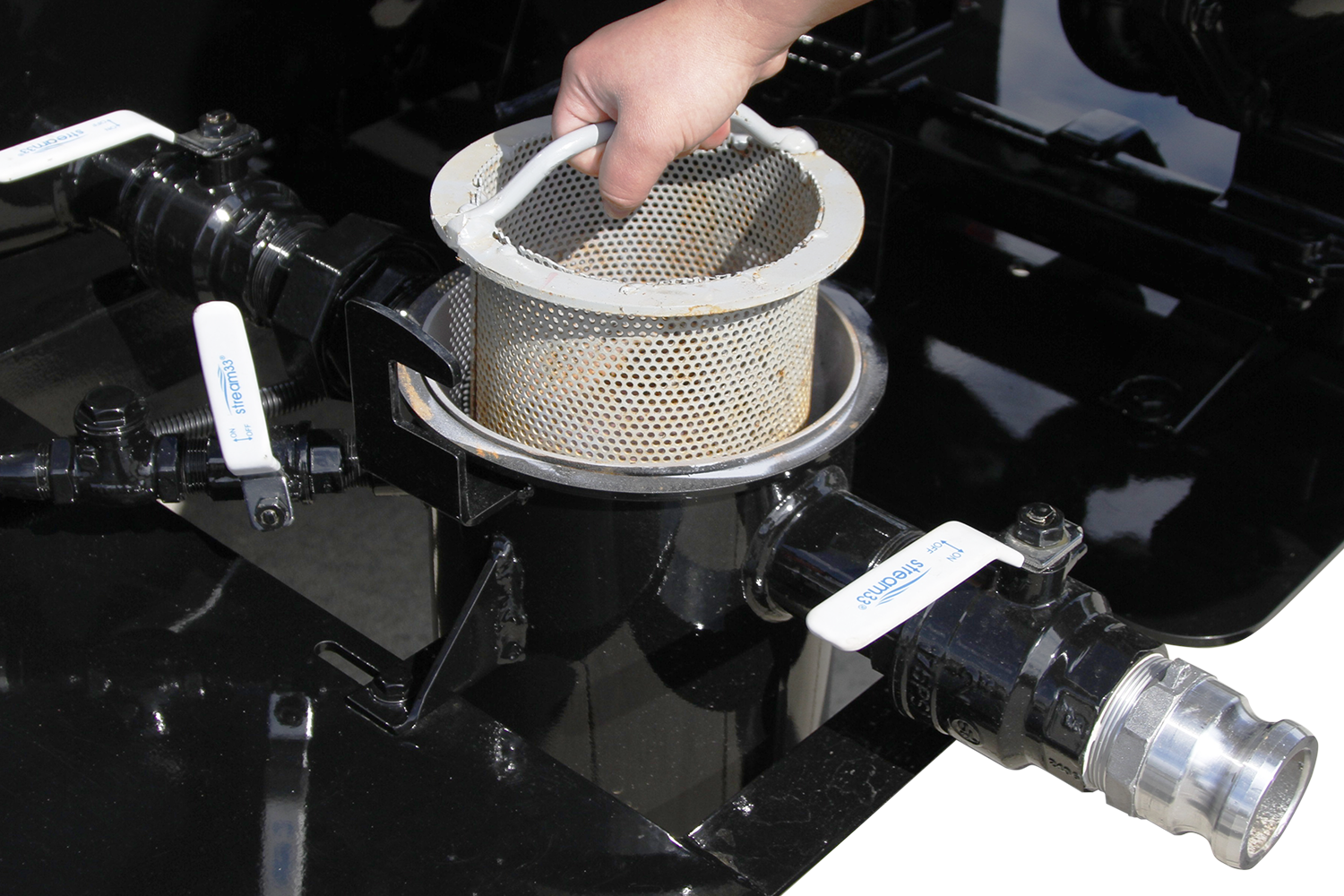

One-Gallon Basket Strainer

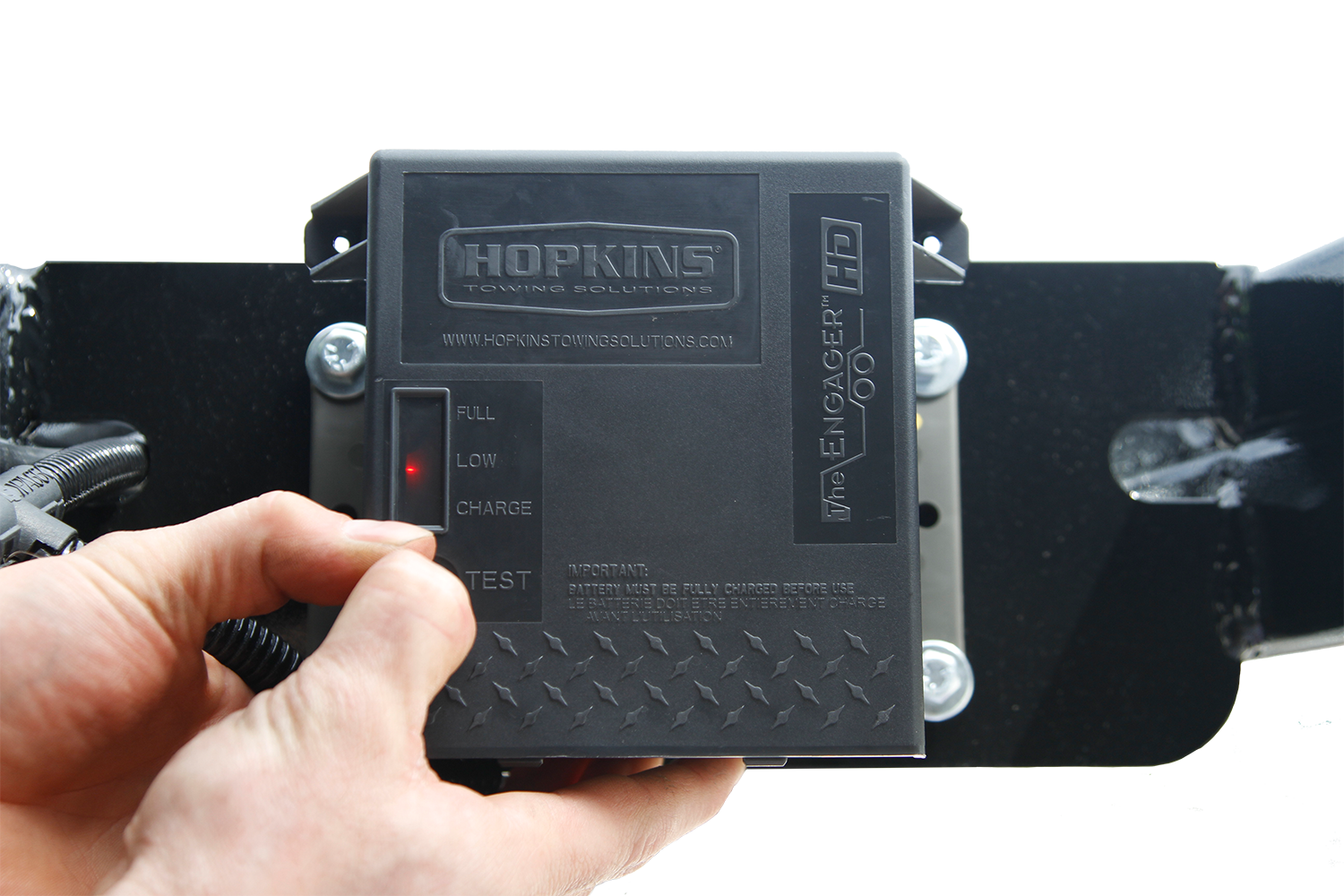

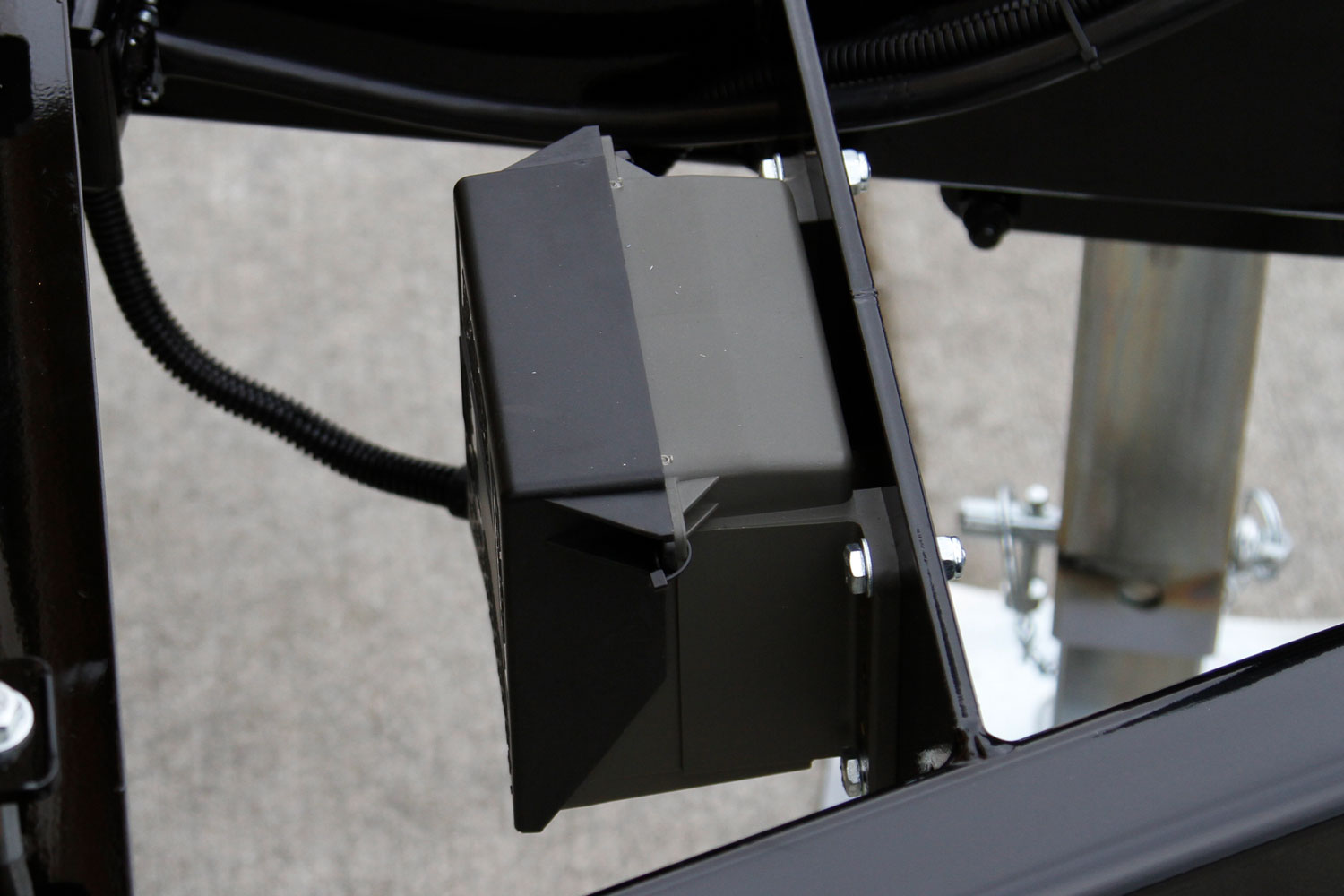

Safety Break-Away Braking System

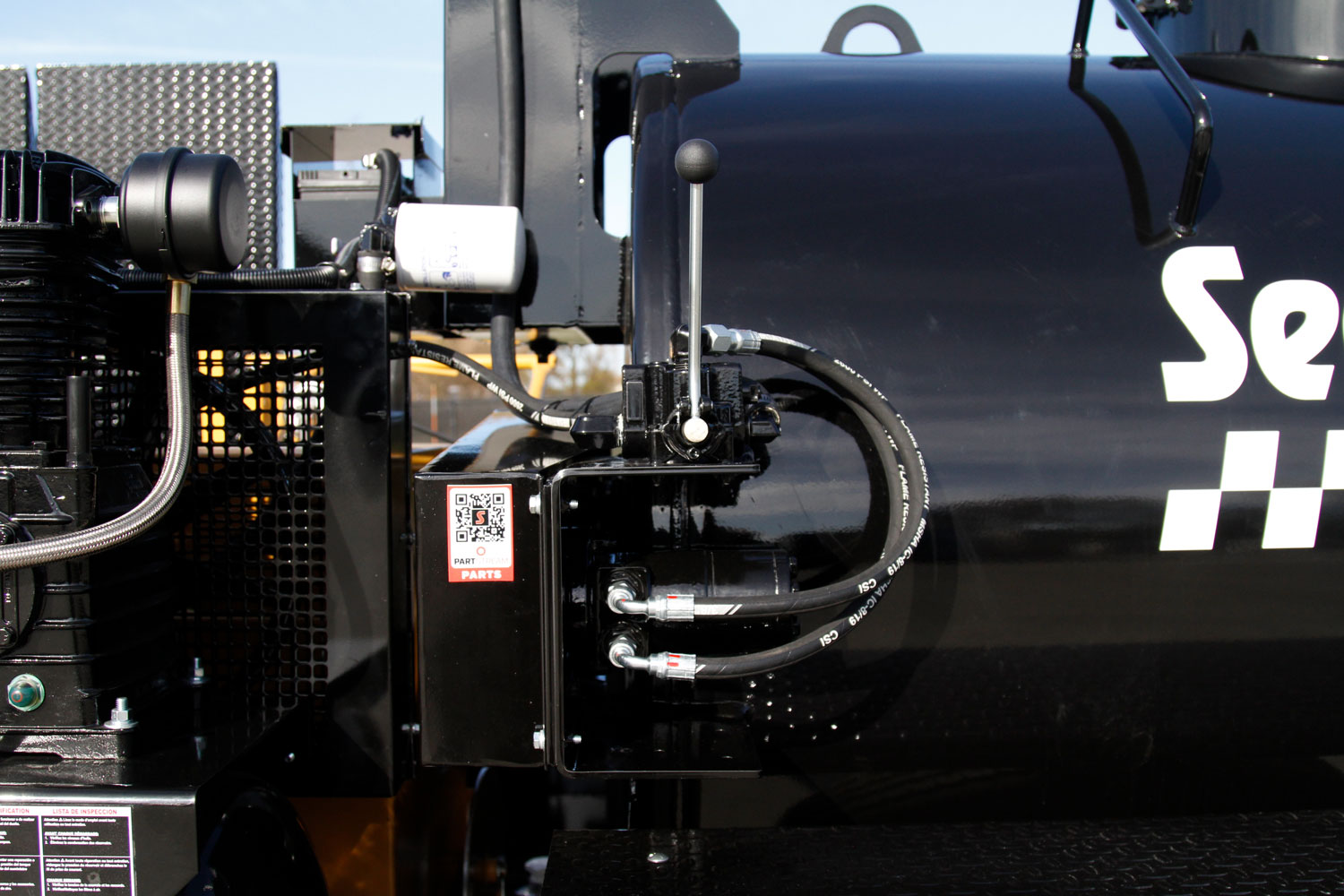

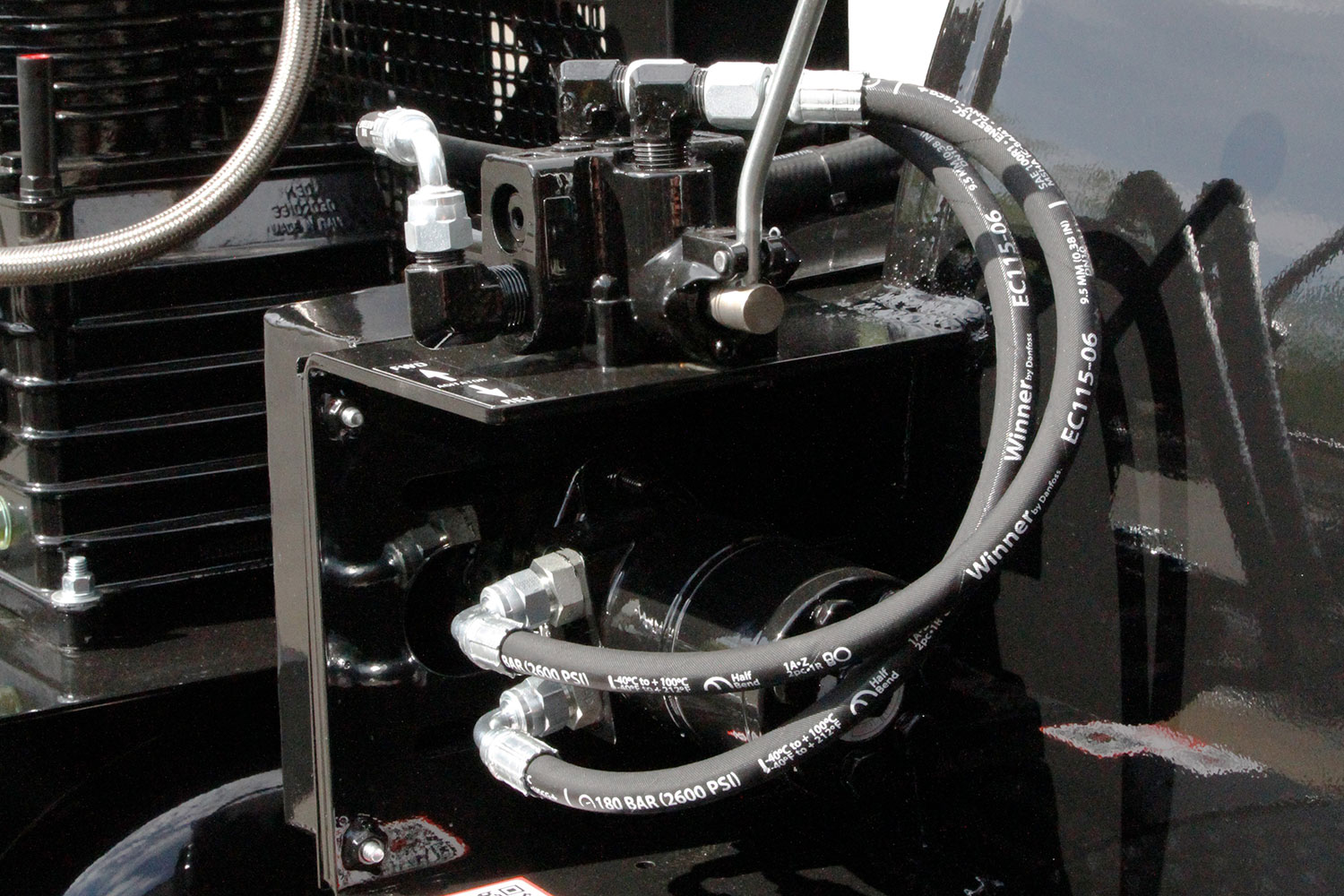

Forward/Reverse Agitation Control
Optional features
Custom Built to Fit Your Needs

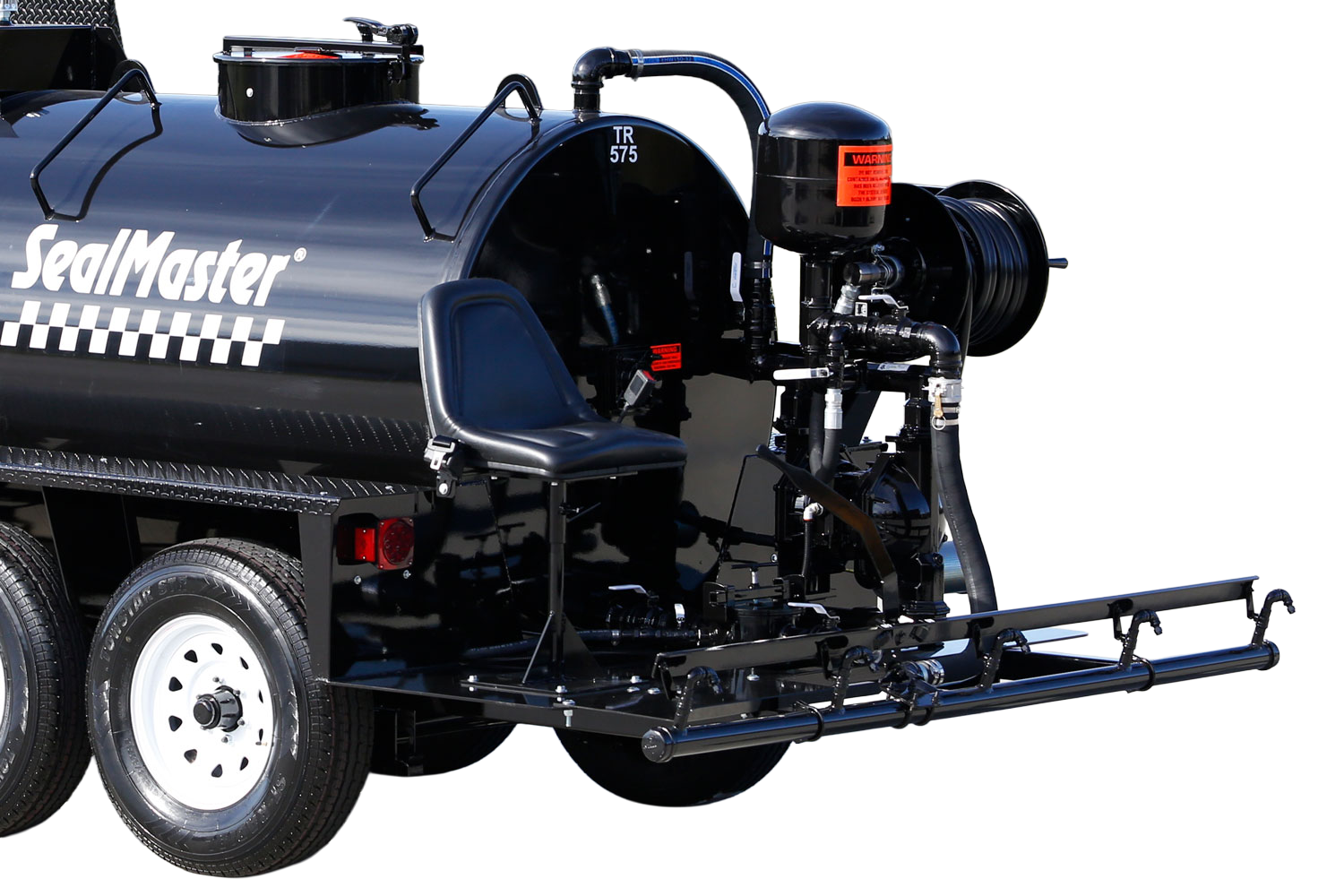

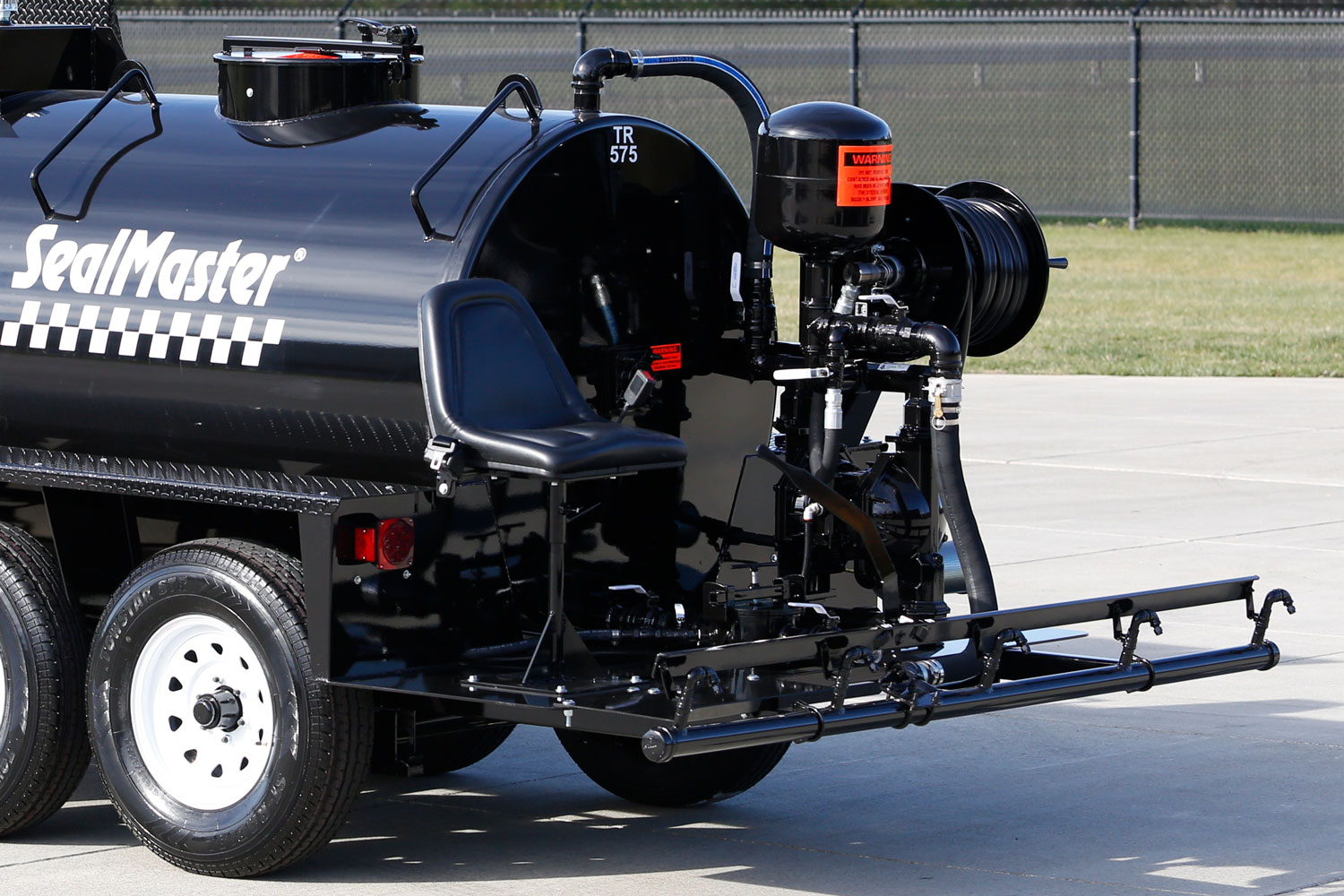

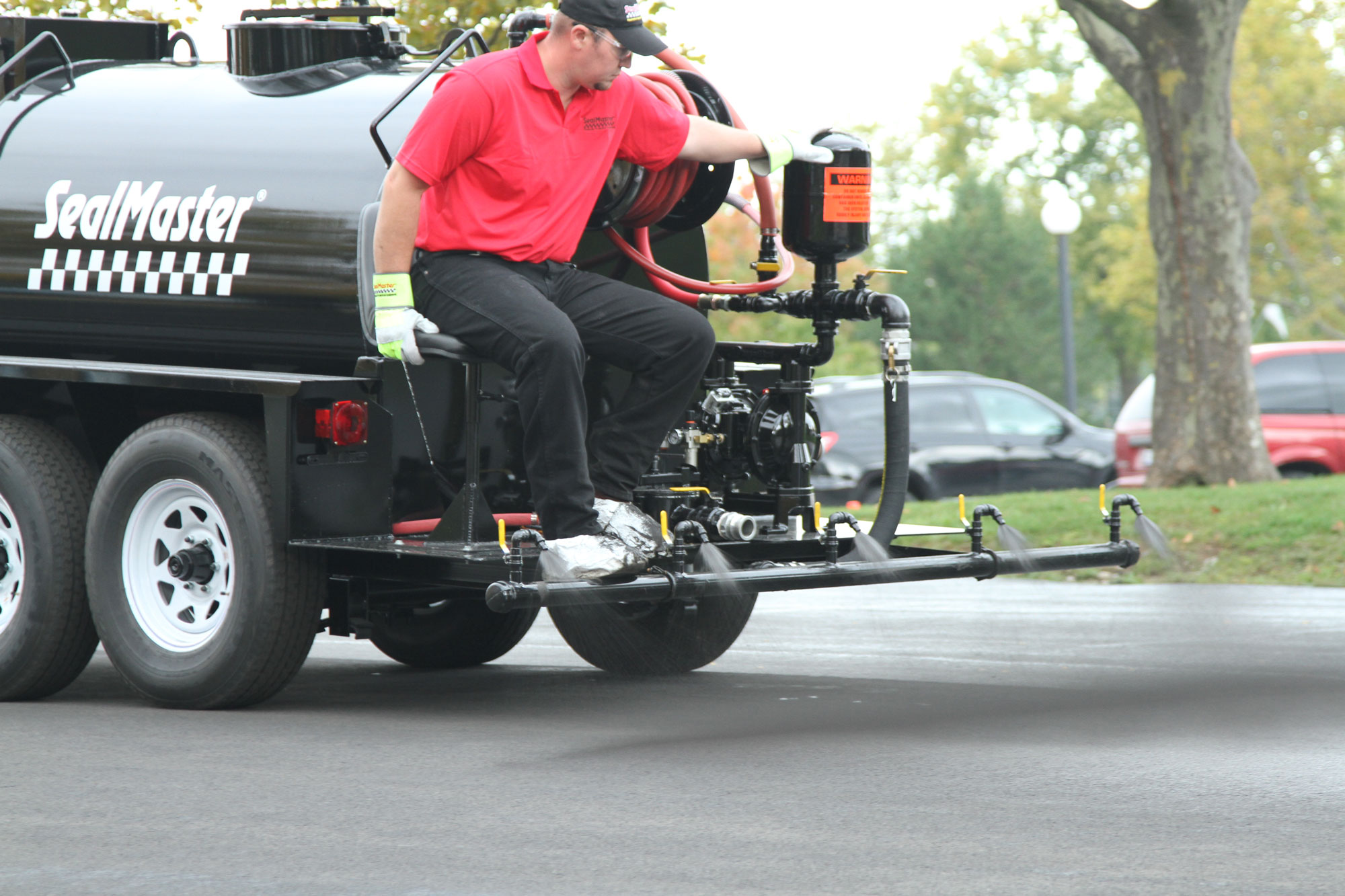

Lever Spray Bar and Seat
Improve spray application control and operator comfort with an integrated spray bar system and seating configuration.

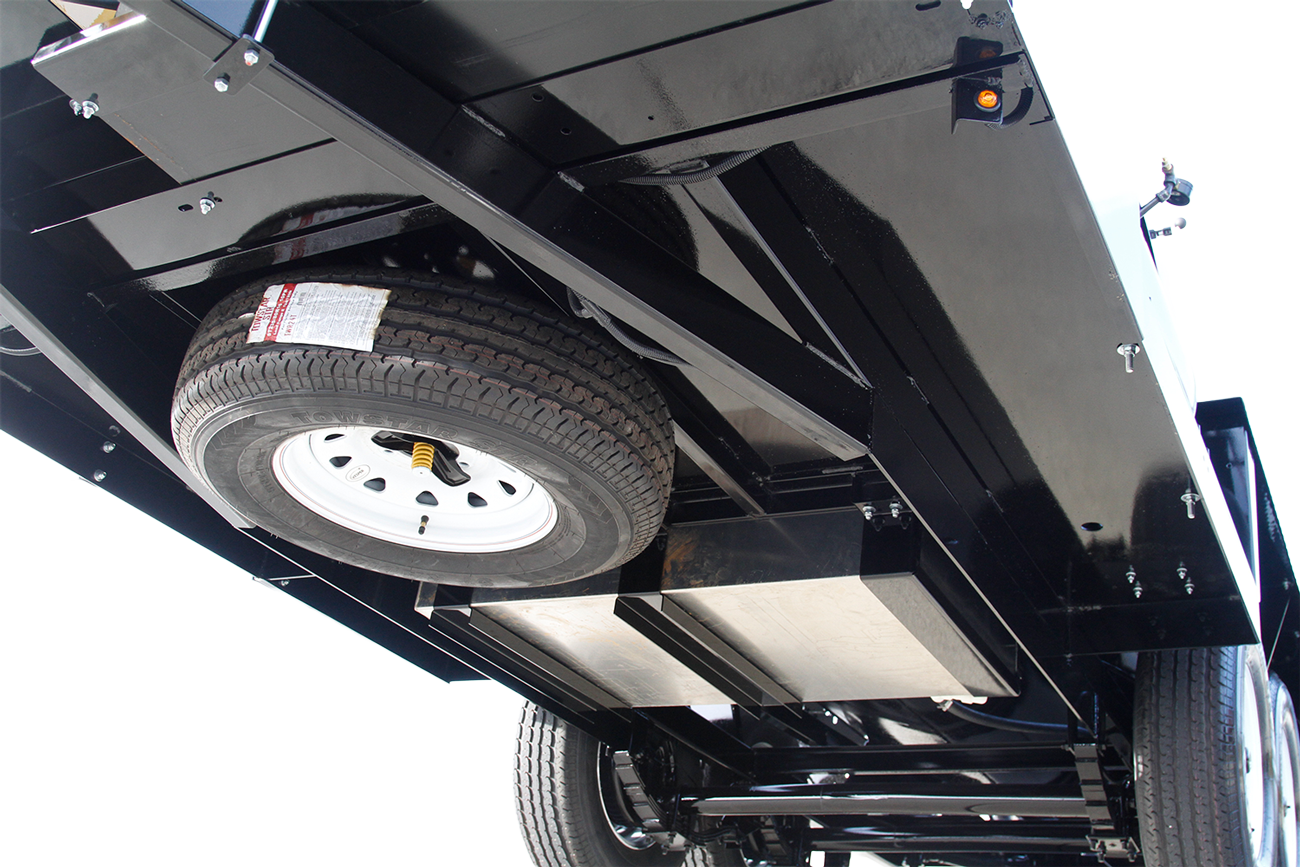

Mounted Spare Tire
Mounted beneath the undercarriage for convenient access, the spare tire helps keep your crew on the road.

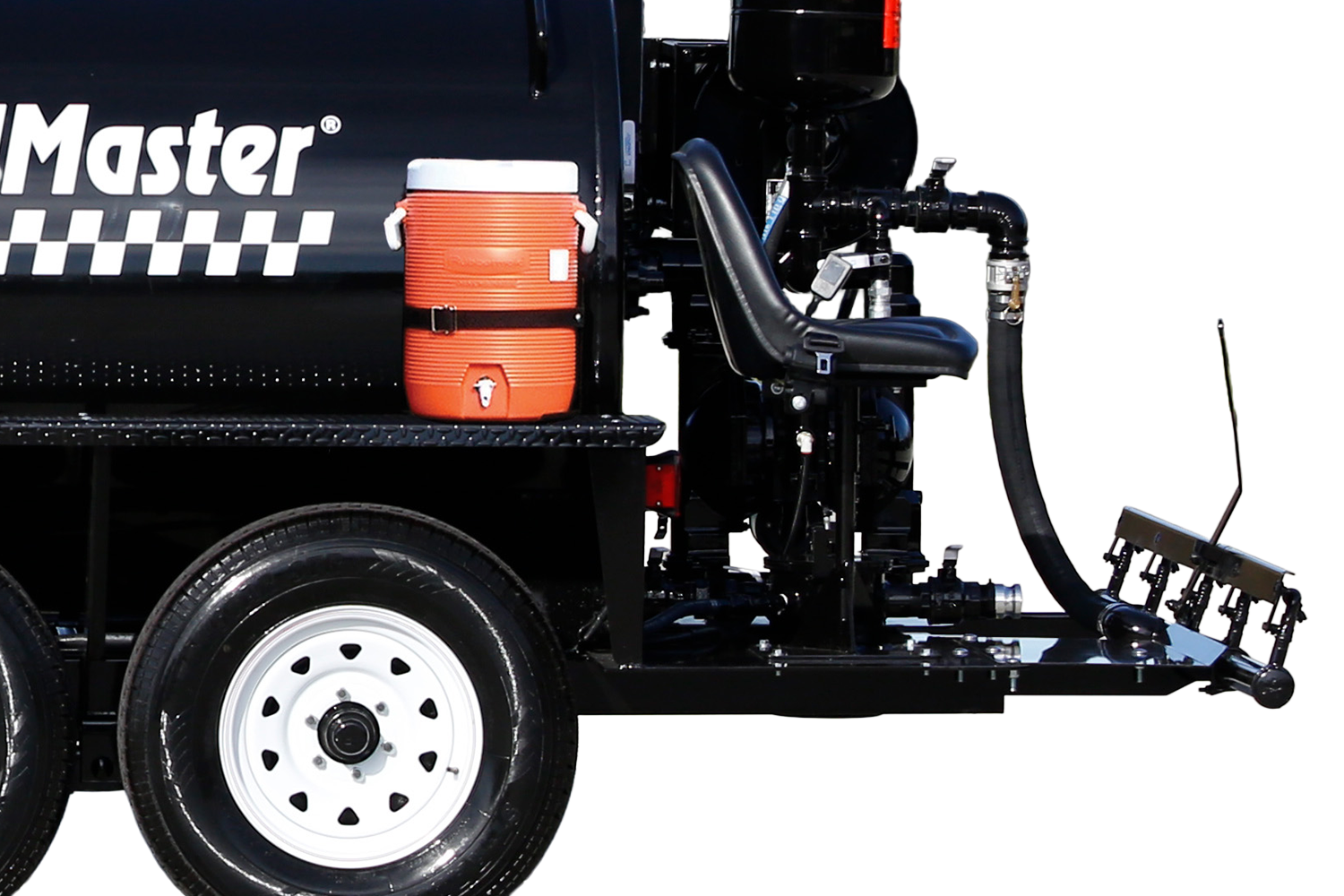

Water Cooler
Water Tank, Mounting Kit and Pump
Ensure convenient access to water on the jobsite with a mounted 50-gallon water tank and pump system, ideal for storing water for diluting sealers and cleaning up.
Brush Water Box 40”
Save money and extend the life of your brushes and squeegees by soaking them in the brush water box to prevent sealers from drying on your tools.

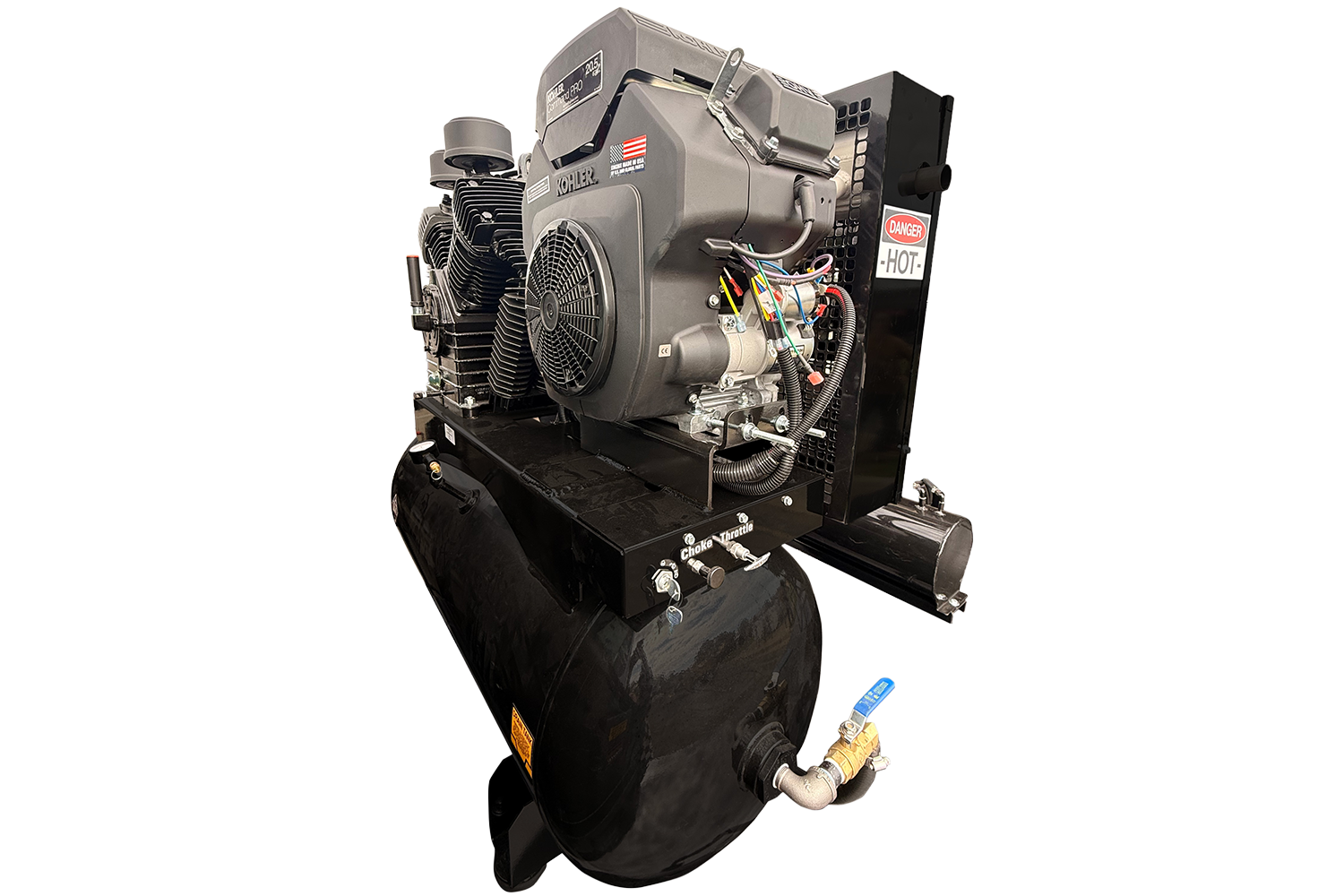

Maxx-Air 20 HP Compressor
Night Work Lights

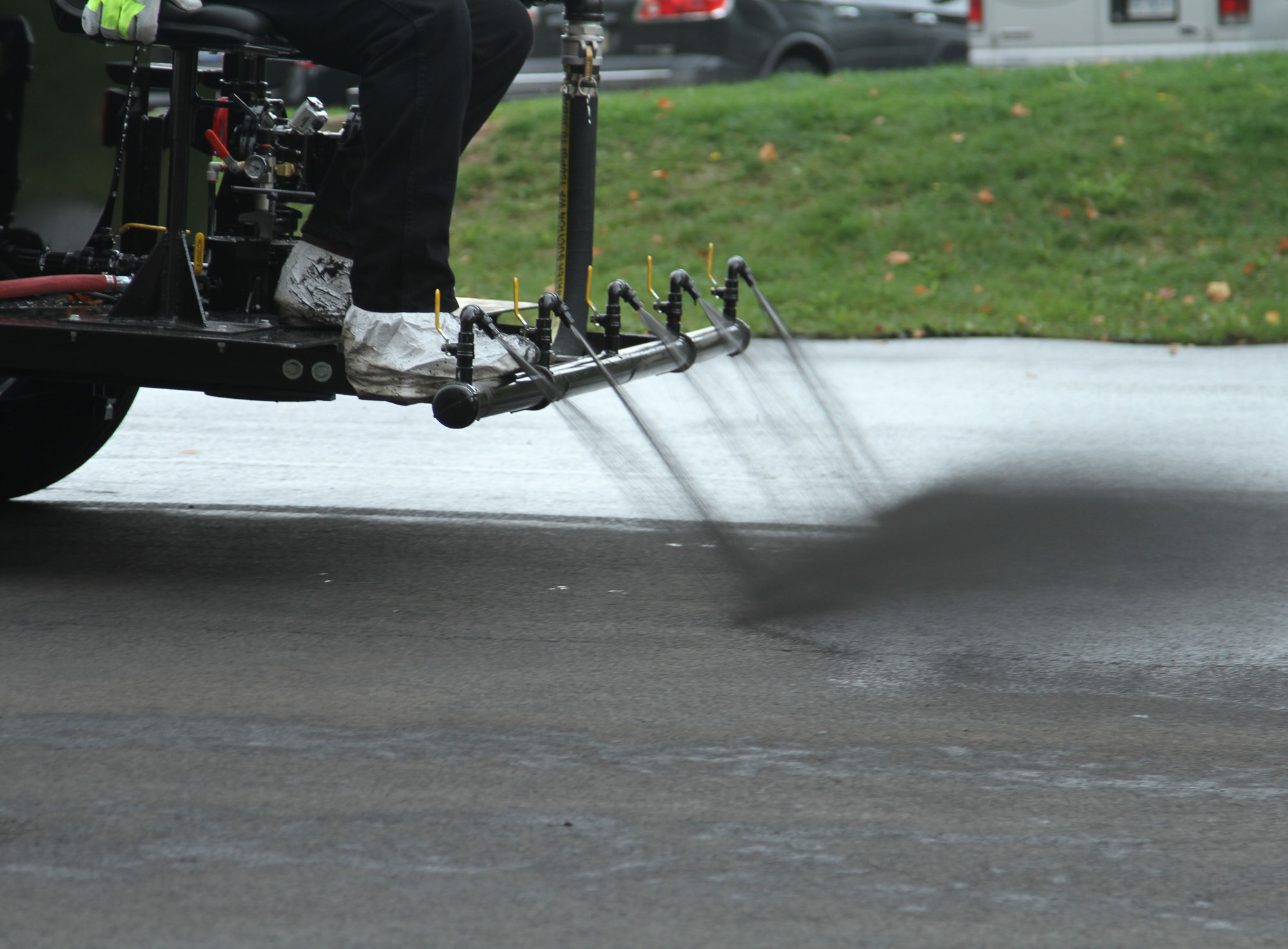

Air-Operated Spray Bar
Enhance spray coverage with an air-operated spray bar for smooth, consistent application over larger areas.
Specifications
SealMaster

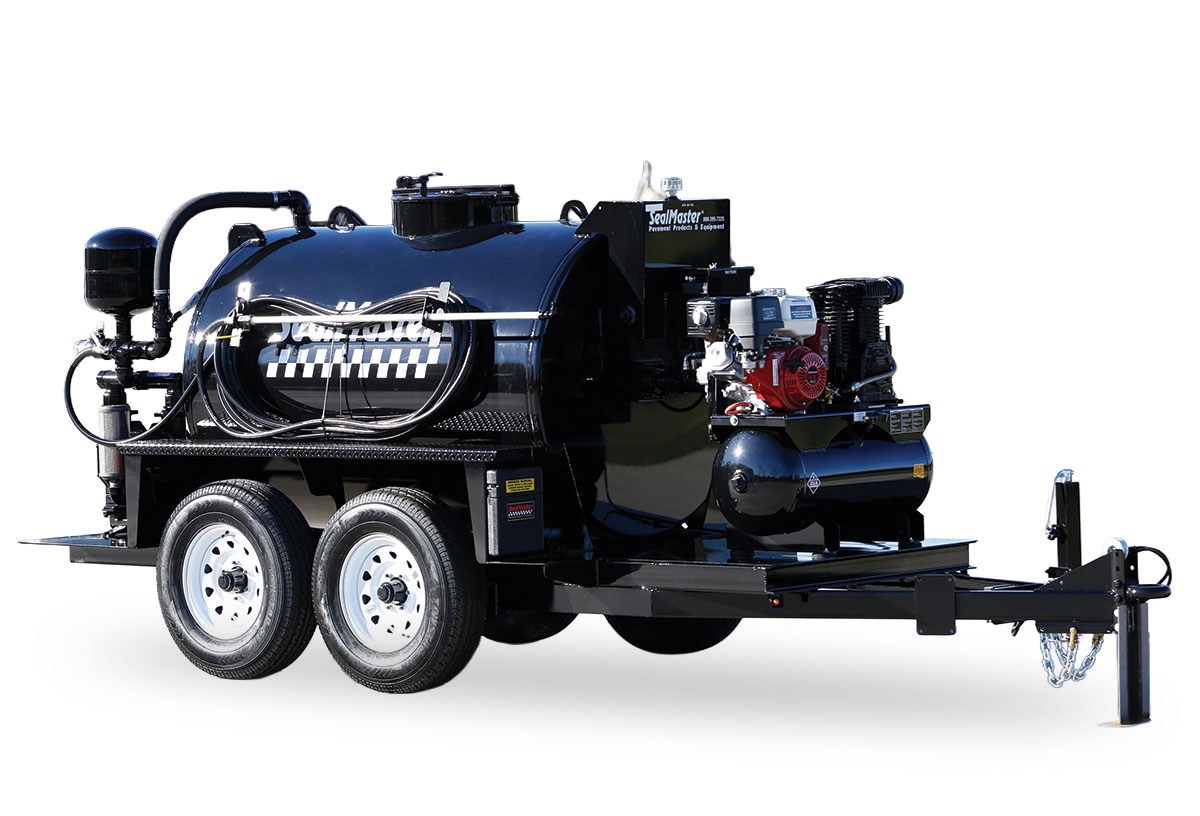

TR 575
SprayMaster with Pro-Air System
Dimensions
| Height | 73″ |
|---|---|
| Width | 75″ |
| Length (with spray bar) | 216″ |
| Spray Bar Width | 88″ |
Tank & Agitation
| Tank Capacity | 575 gallons |
|---|---|
| Agitation System | Hydraulically controlled full-sweep agitation with rubber wiper blades |
Trailer & Chassis
| Axles | 2- 6,000 lbs. |
|---|---|
| Tongue Weight (empty) | 380 lbs. |
Engine & Air Compressor
| Engine | Honda GX390 |
|---|---|
| Air Compressor Output | 30.0 SCFM |
Material Pump
| Type | Dual Diaphragm |
|---|



Flexible Buying Options
Equipment Rentals
Try the TR 575 before you buy. Ask about available rental options to experience the performance of the TR 575 SprayMaster.
Financing Options
Get the equipment you need without the upfront burden. Attractive financing options are available to help you continue growing your business.
Trusted by Contractors, Municipalities and DOTS Nationwide
Unlike others in the industry, SealMaster has the largest dedicated dealer network providing local expertise, service and parts availability when you need it. From startup contractors to established crews, SealMaster is built to support your operations at every stage.
