Features
Standard features on the SP 300 Dual
True Full-Sweep Agitation
- The round tank design features true full-sweep agitation with rubber wiper blades to prevent material from becoming trapped in corners and settling.

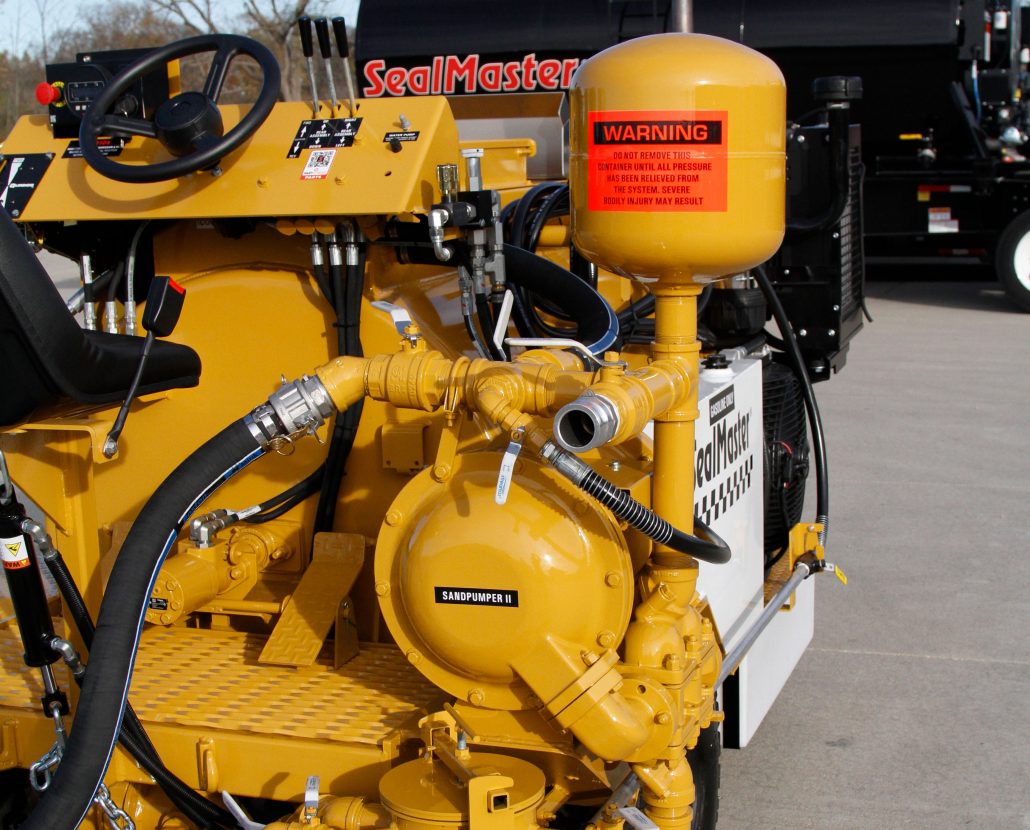

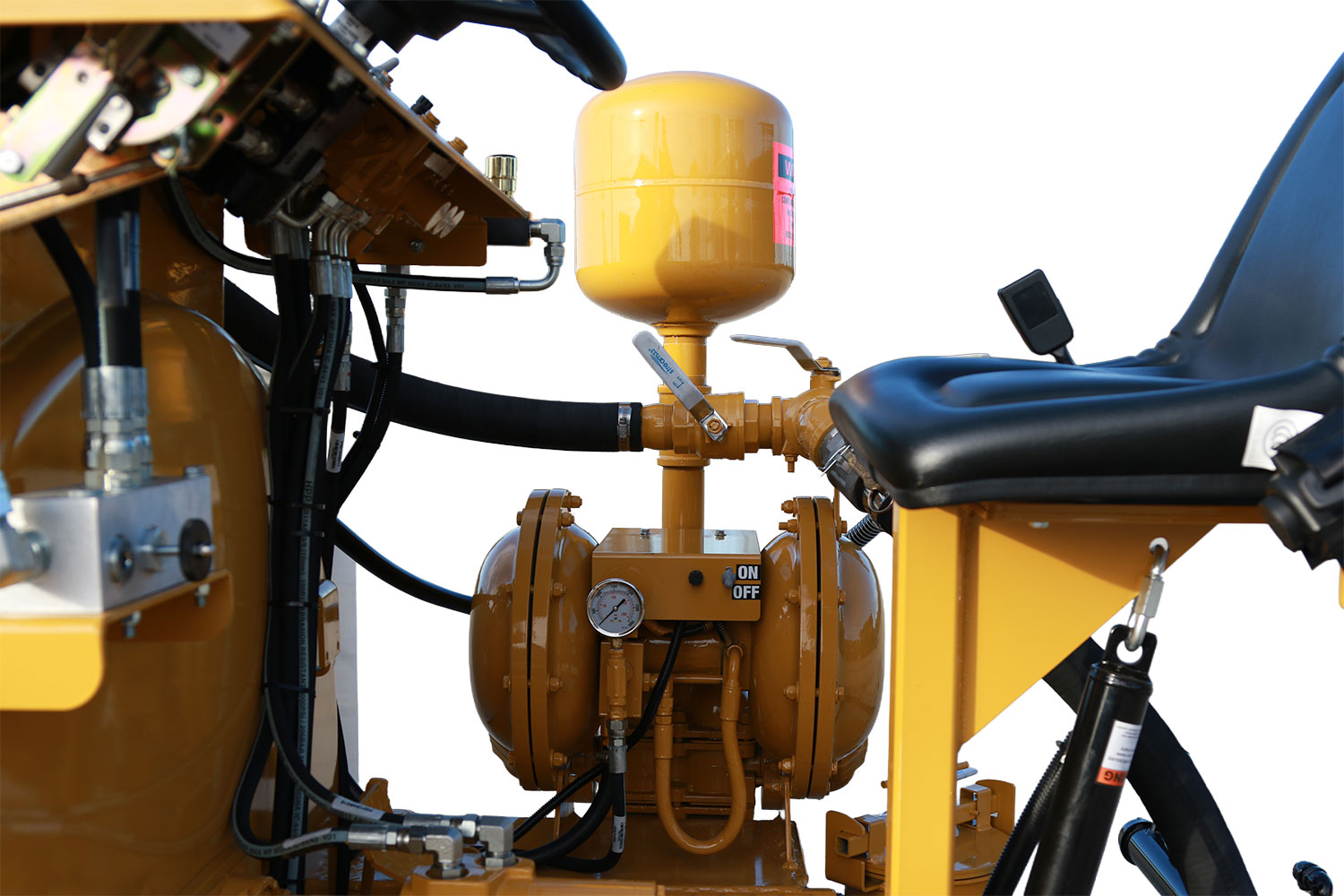

SandPumper II Material Pump
- The SandPumper II System features a hydraulically driven dual diaphragm material pump designed to maintain consistent material flow, even with heavy sand loadings.
- Built to mix and apply sealers with or without sand, the system delivers dependable performance across a wide range of pavement maintenance applications.

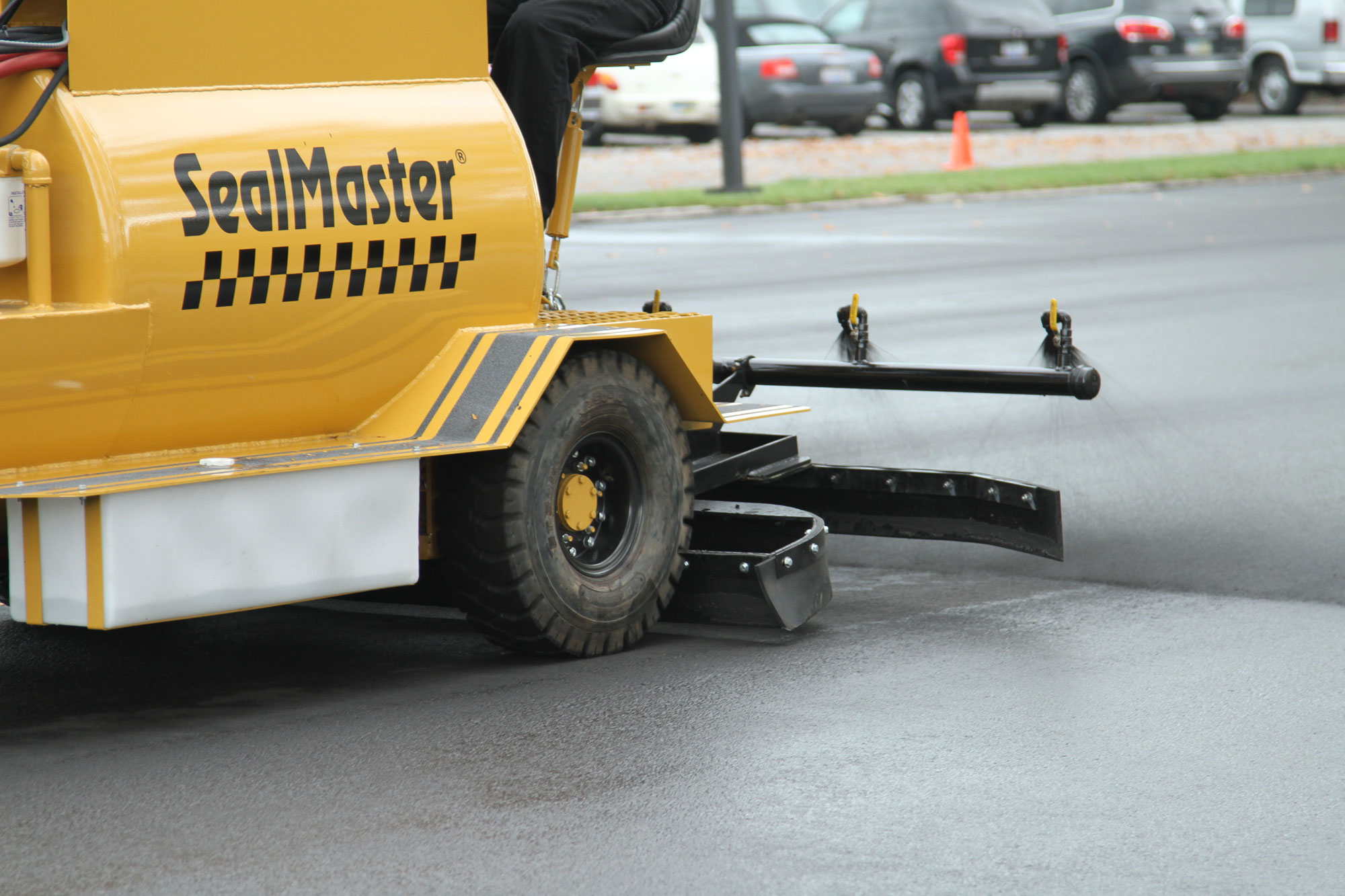

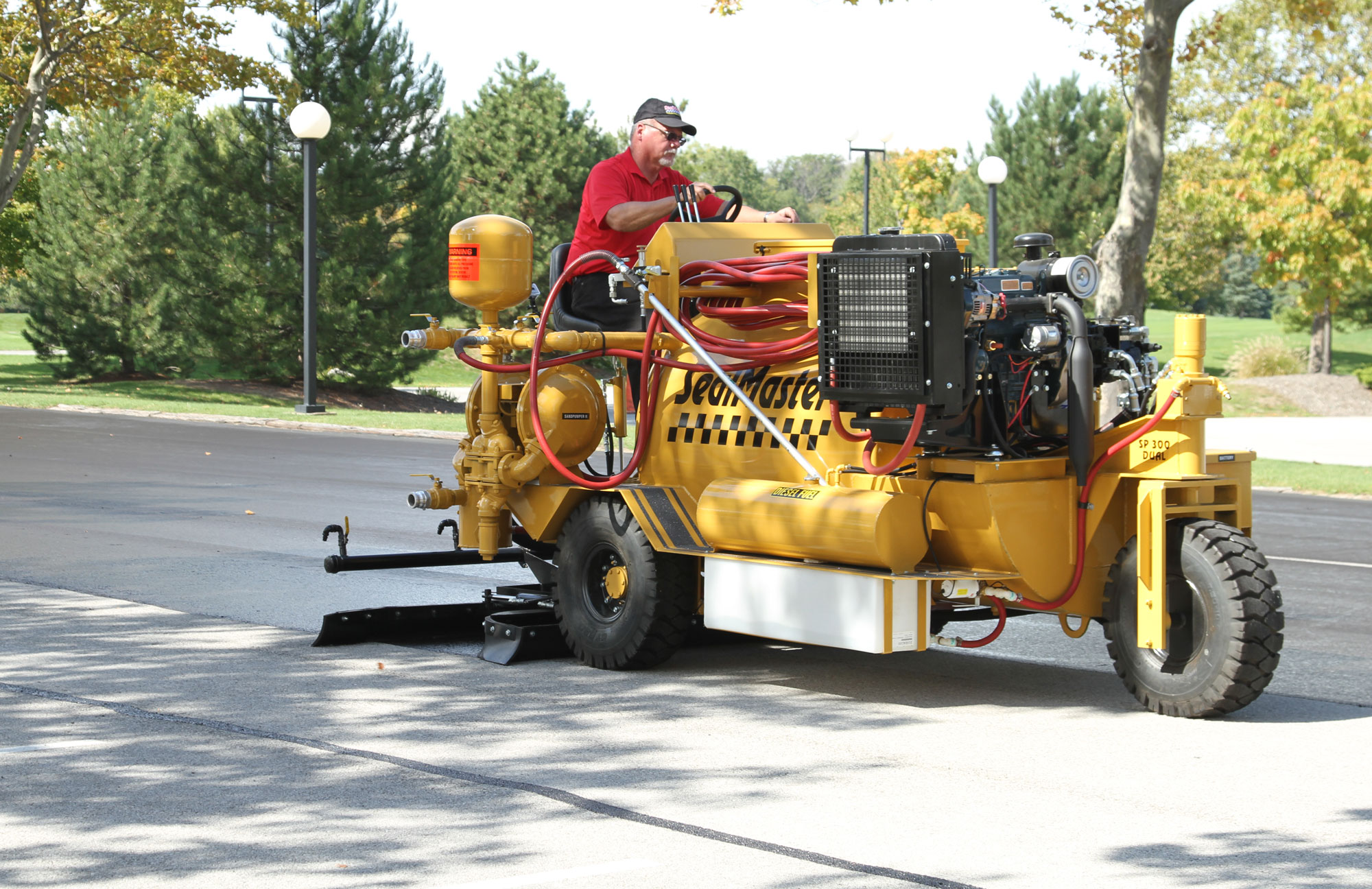

Ride-On Spray / Squeegee Machine
- The ride-on design provides operators with greater comfort and control during large sealcoating applications.

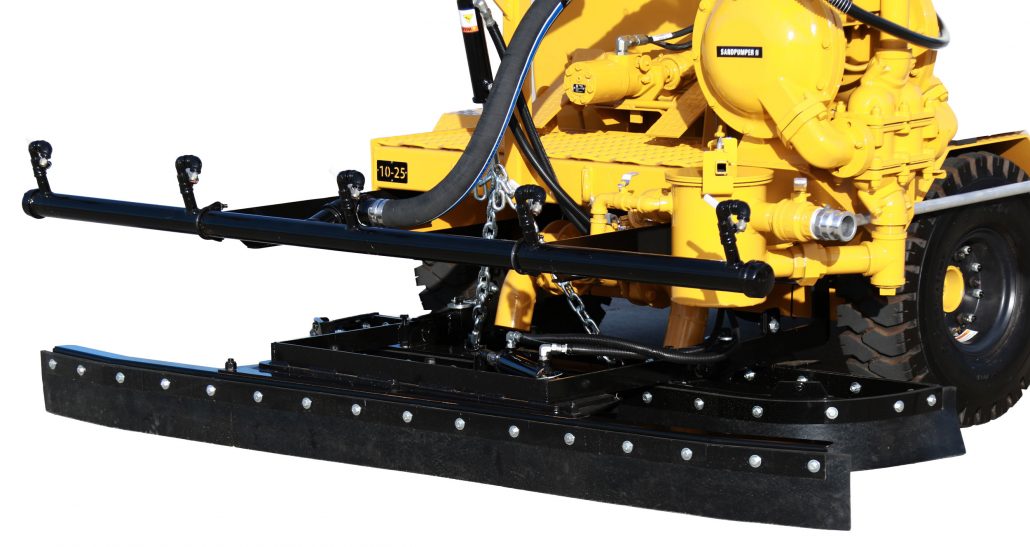

Spray, Squeegee or Combination Method
- The SP 300 Dual allows contractors to spray, squeegee or utilize a combination of both application methods depending on pavement conditions and project requirements.
- Many contractors consider the spray-and-squeegee method the gold standard for sealcoating, using a squeegee coat to work material deeper into the pavement pores, followed by a spray coat to provide a smooth, uniform finish.

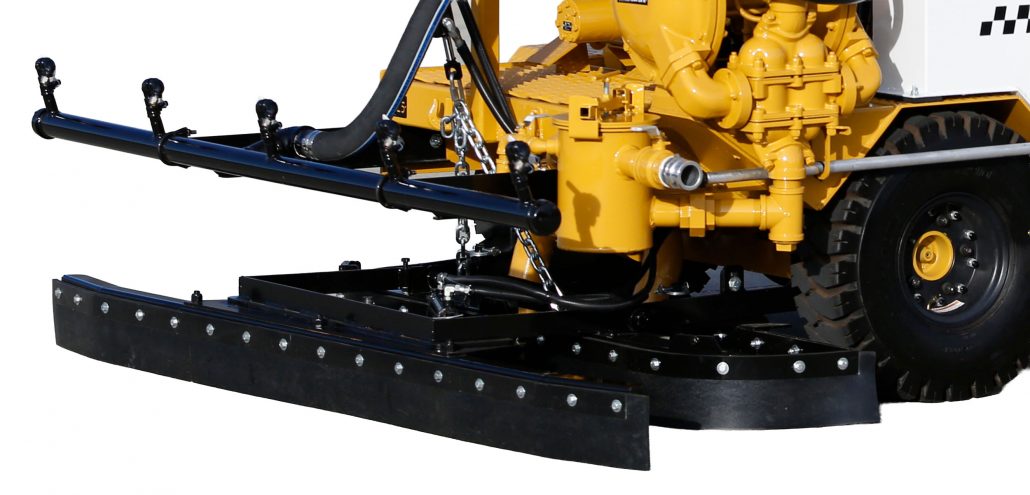

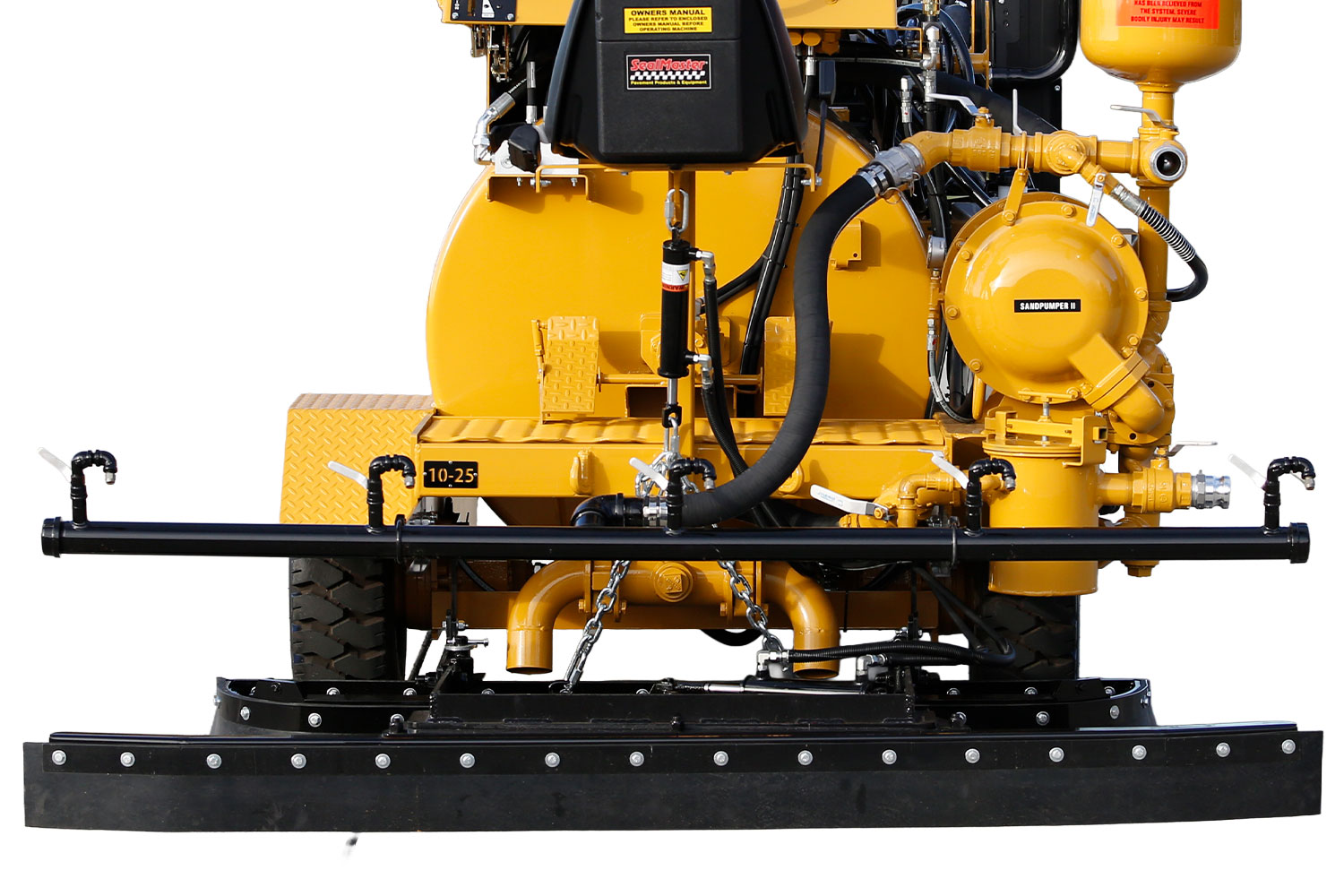

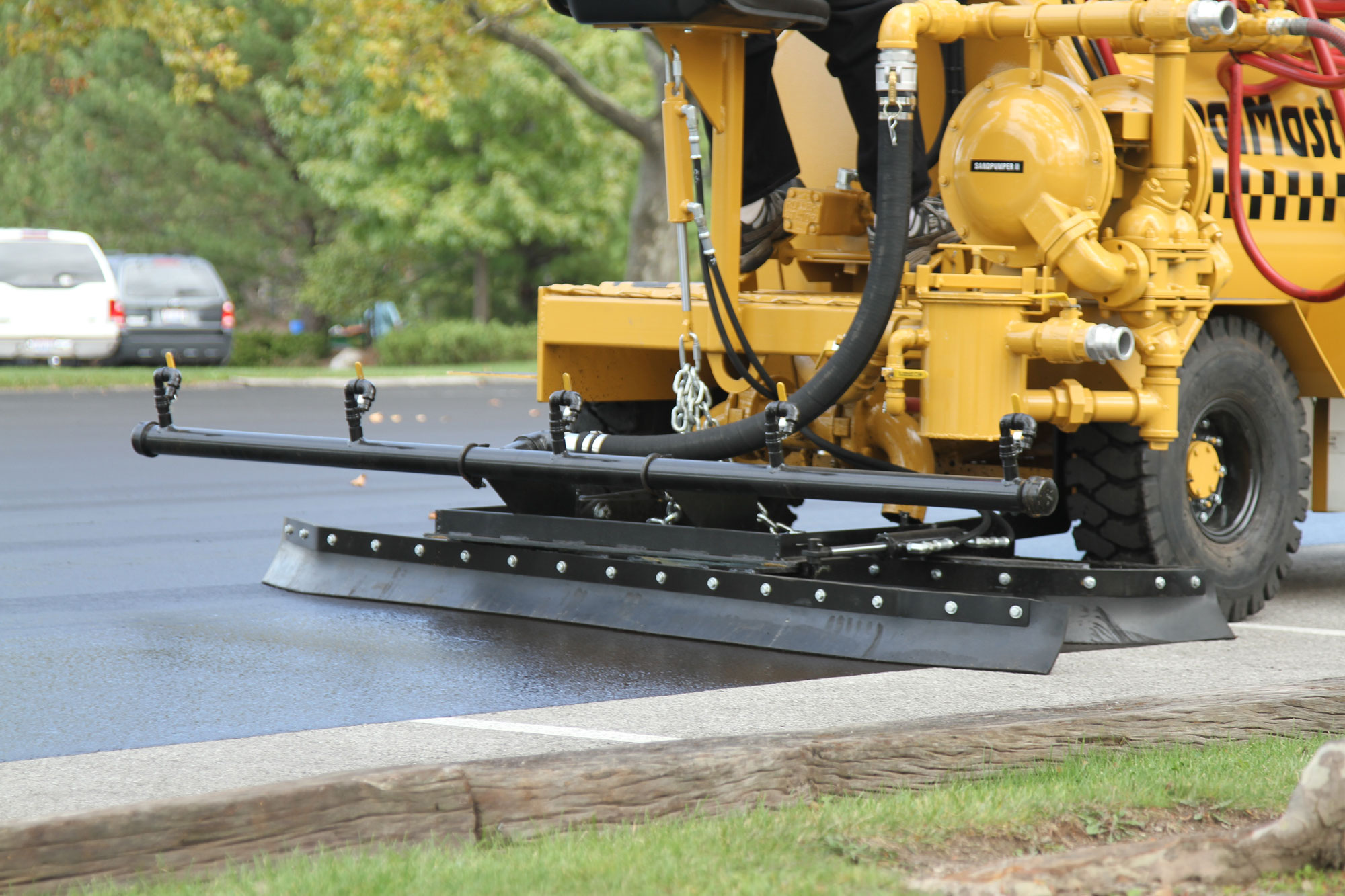

Quick-Change Floating Squeegee Assembly
- The assembly features a front box squeegee and rear-angling squeegee with windrow capability.
- The front box squeegee helps control material width to reduce waste and maintain consistent coverage.
- The rear-angling squeegee leaves a wet edge that helps reduce overlap marks on long pulls.
Automatic Neutral Safety Function
- When the spray wand or spray bar is shut off, the system automatically shifts to neutral.

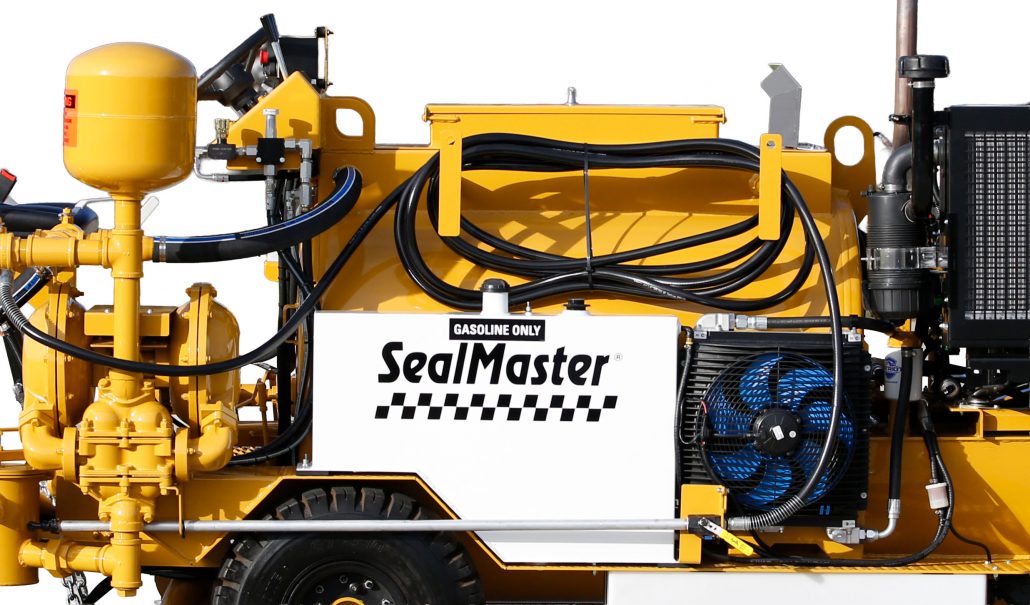

75-Foot Hose and Spray Wand
- The 75-foot hose and spray wand provide the reach needed to apply material in areas where machine access may be limited.

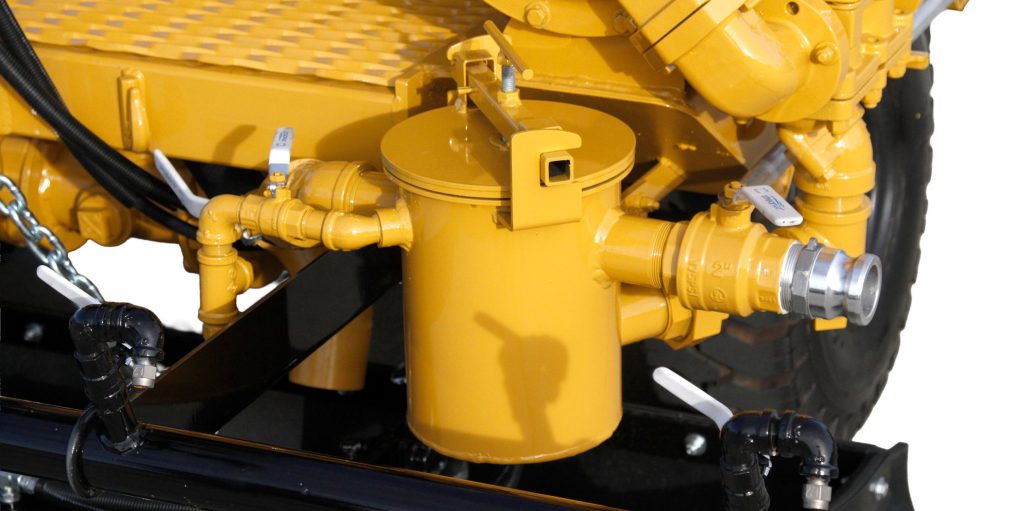

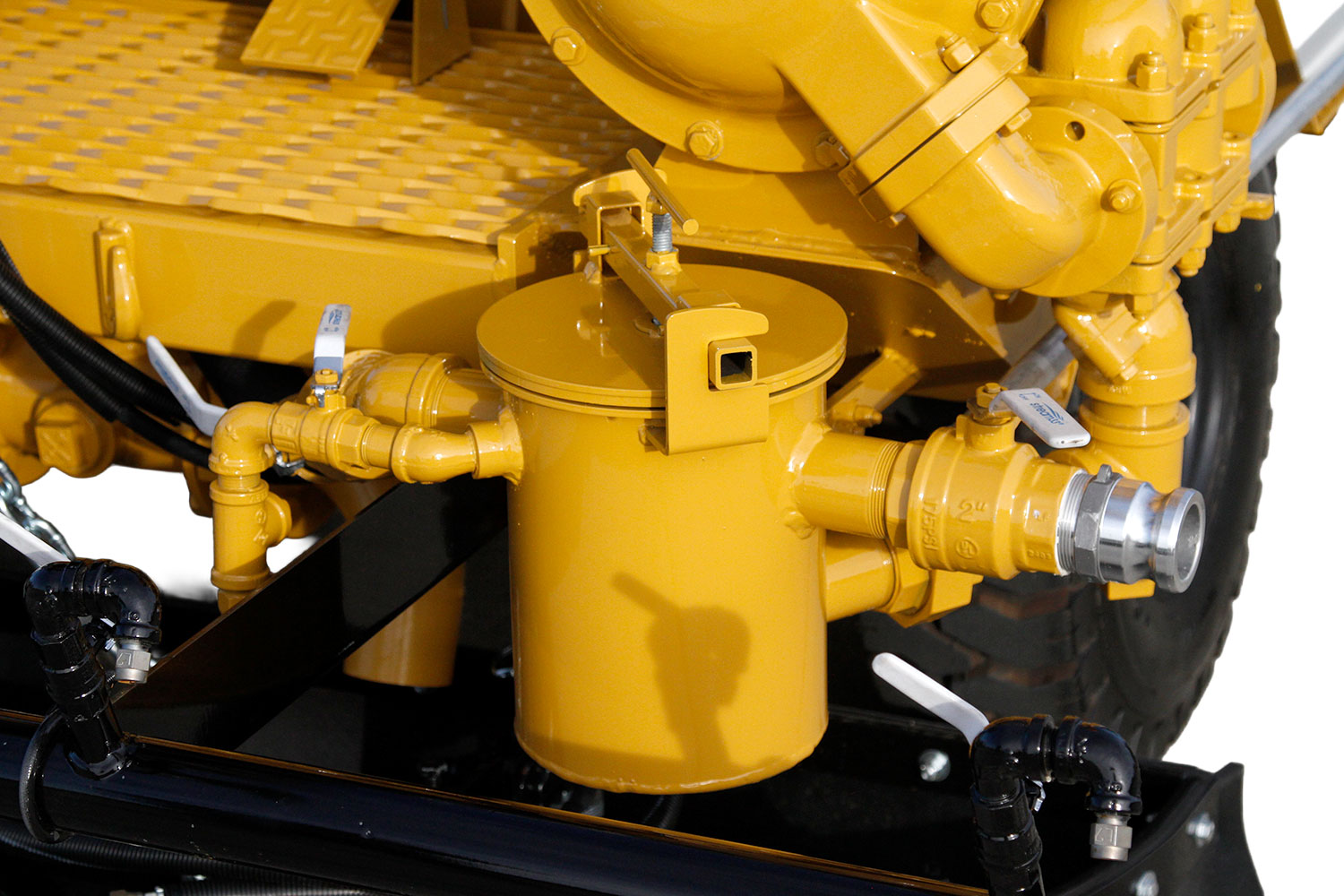

One-Gallon Basket Strainer
- The filtration system features a one-gallon basket strainer designed to keep debris and contaminants out of your system.
- The filtration system also reduces the risk of tip clogging, maintaining consistent material flow throughout the application process.
Rear-Wheel Drive Performance
- Rear-wheel drive provides excellent traction and makes loading and unloading the machine onto a transport trailer quick and easy.

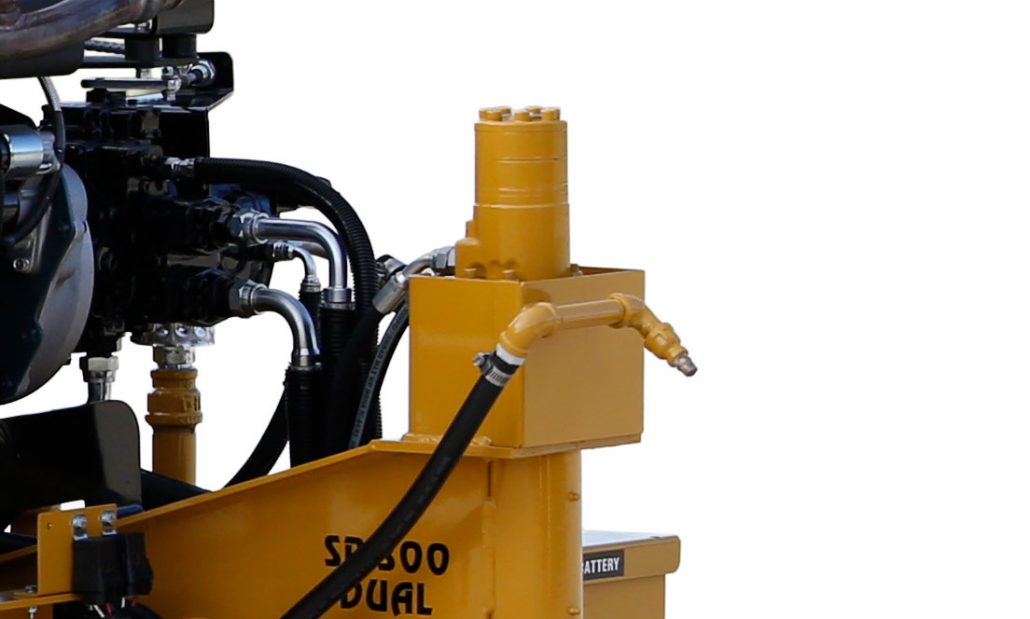

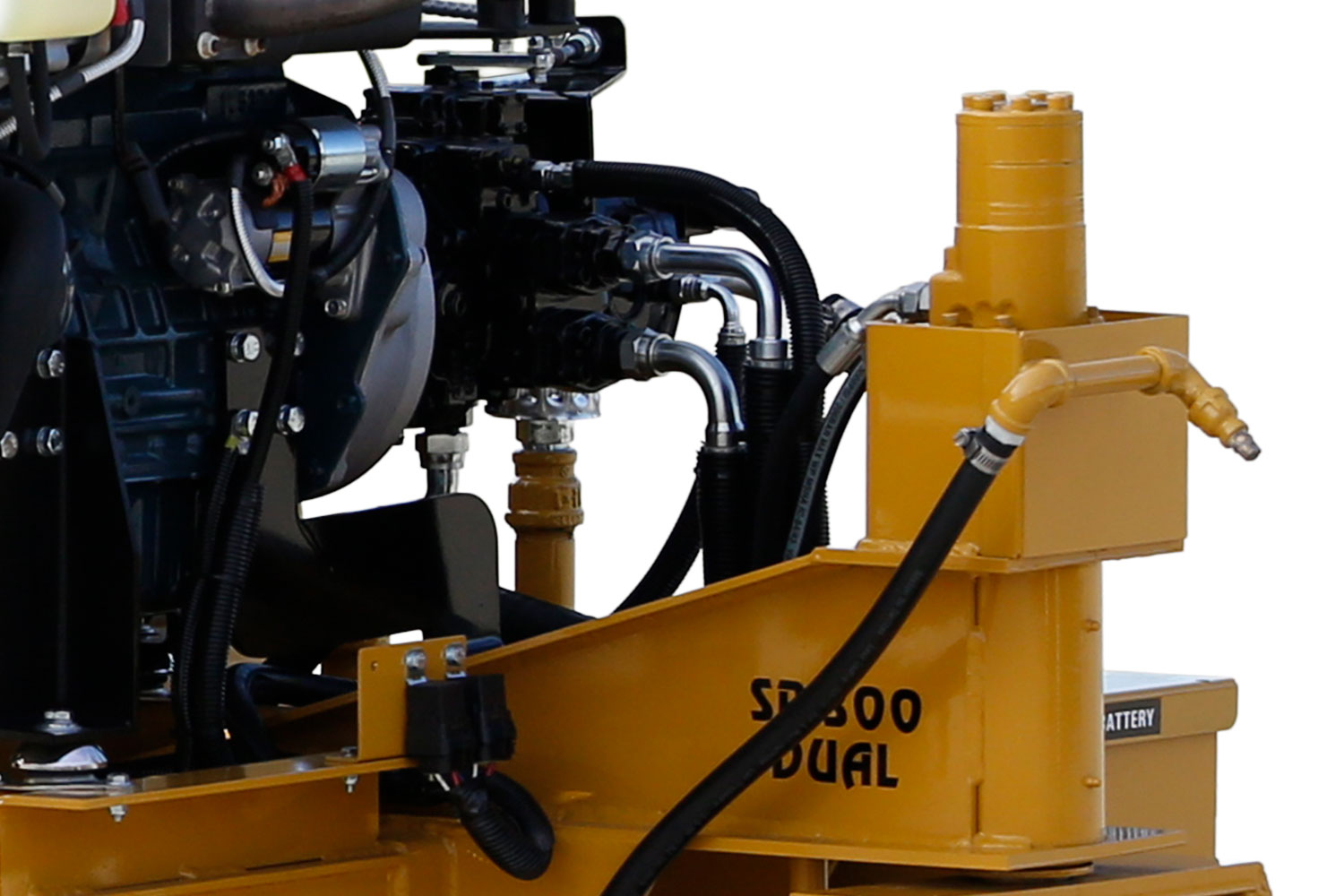

Power Steering
- Equipped with hydraulic power steering, the SP 300 Dual is designed for exceptional maneuverability around curves and other tight areas.

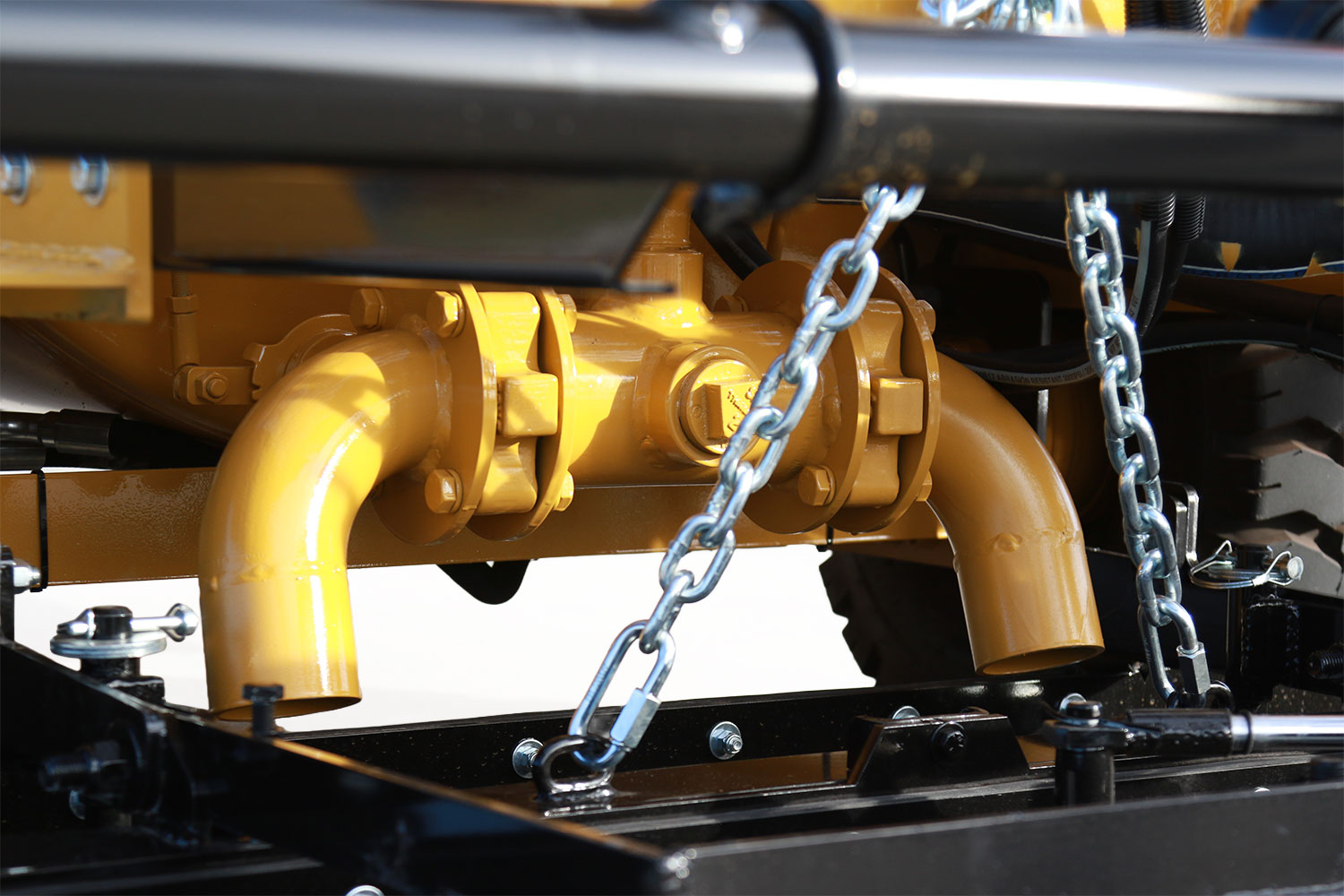

Easy-Open Butterfly Valves
- Operators can quickly start and stop material flow at the end of a pass and manually direct material to either side of the machine.
- When handling heavy sand loadings, the valves help prevent sand and thick material from becoming trapped and restricting flow.

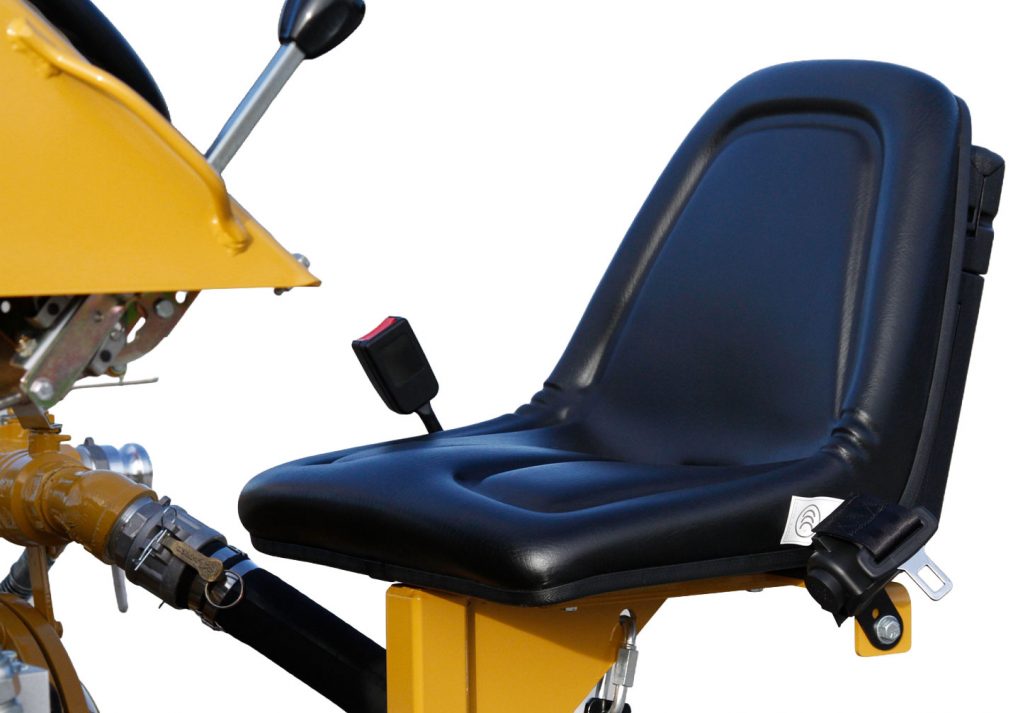

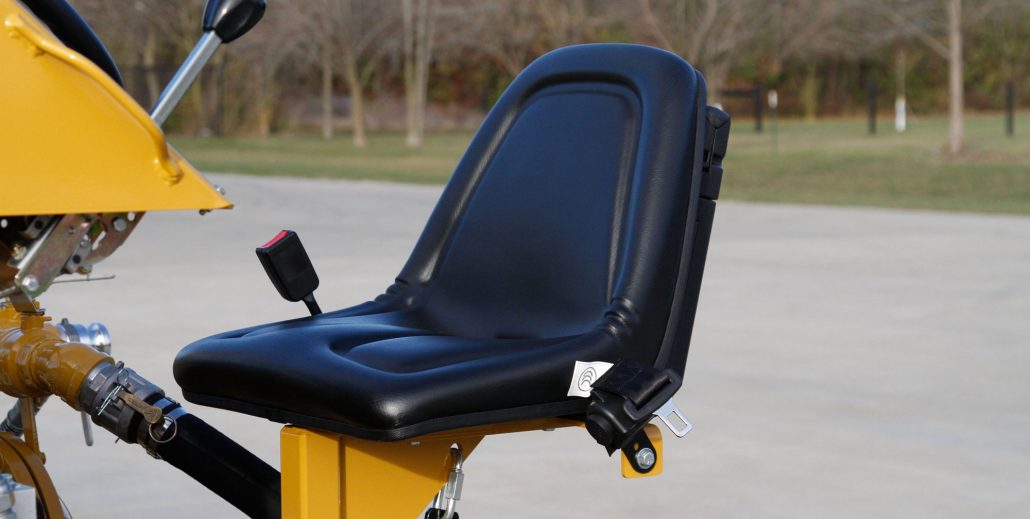

Built-In Safety Features
- The SP 300 comes equipped with an emergency brake and a seatbelt to support safe operation.

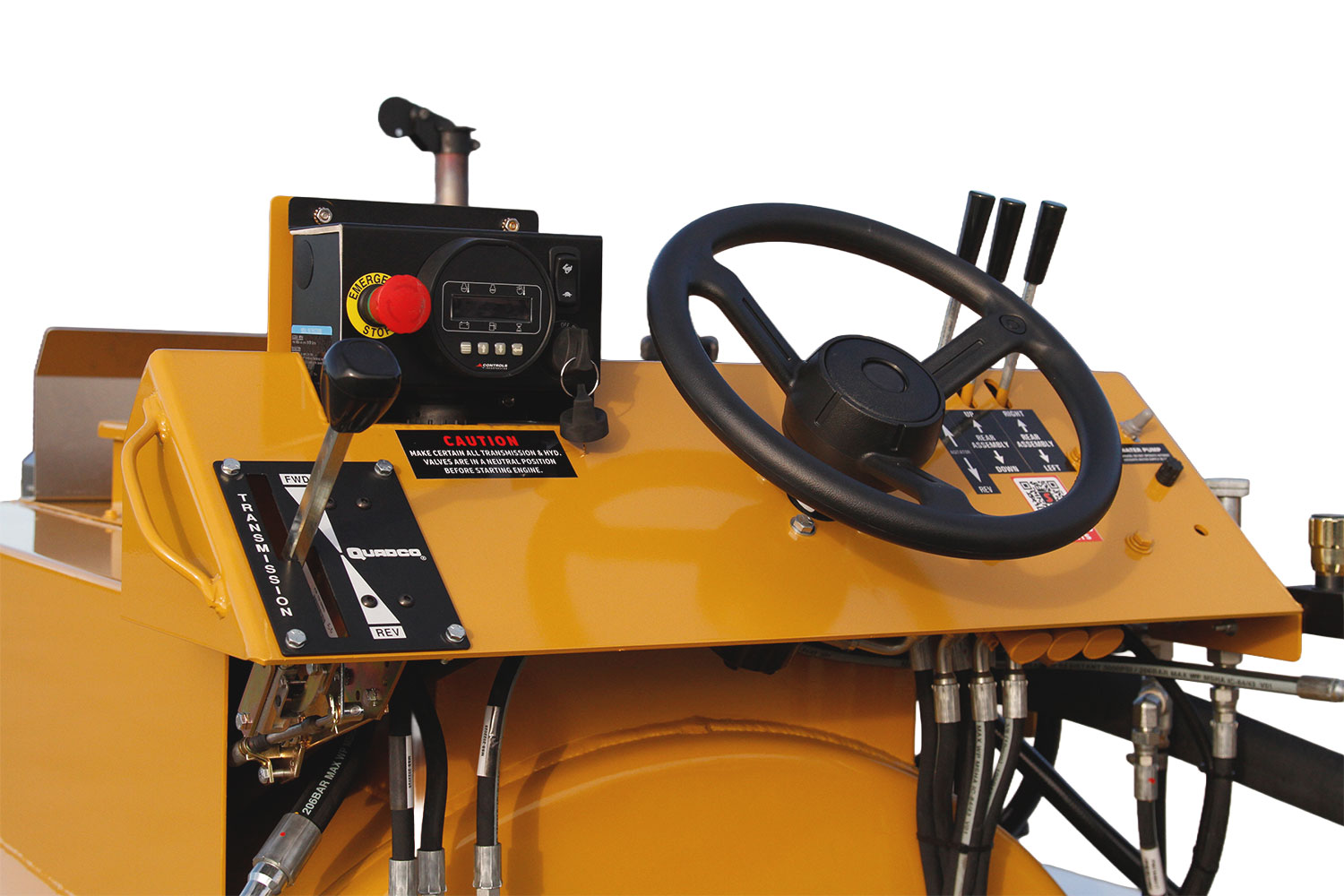

User-Friendly Control Panel

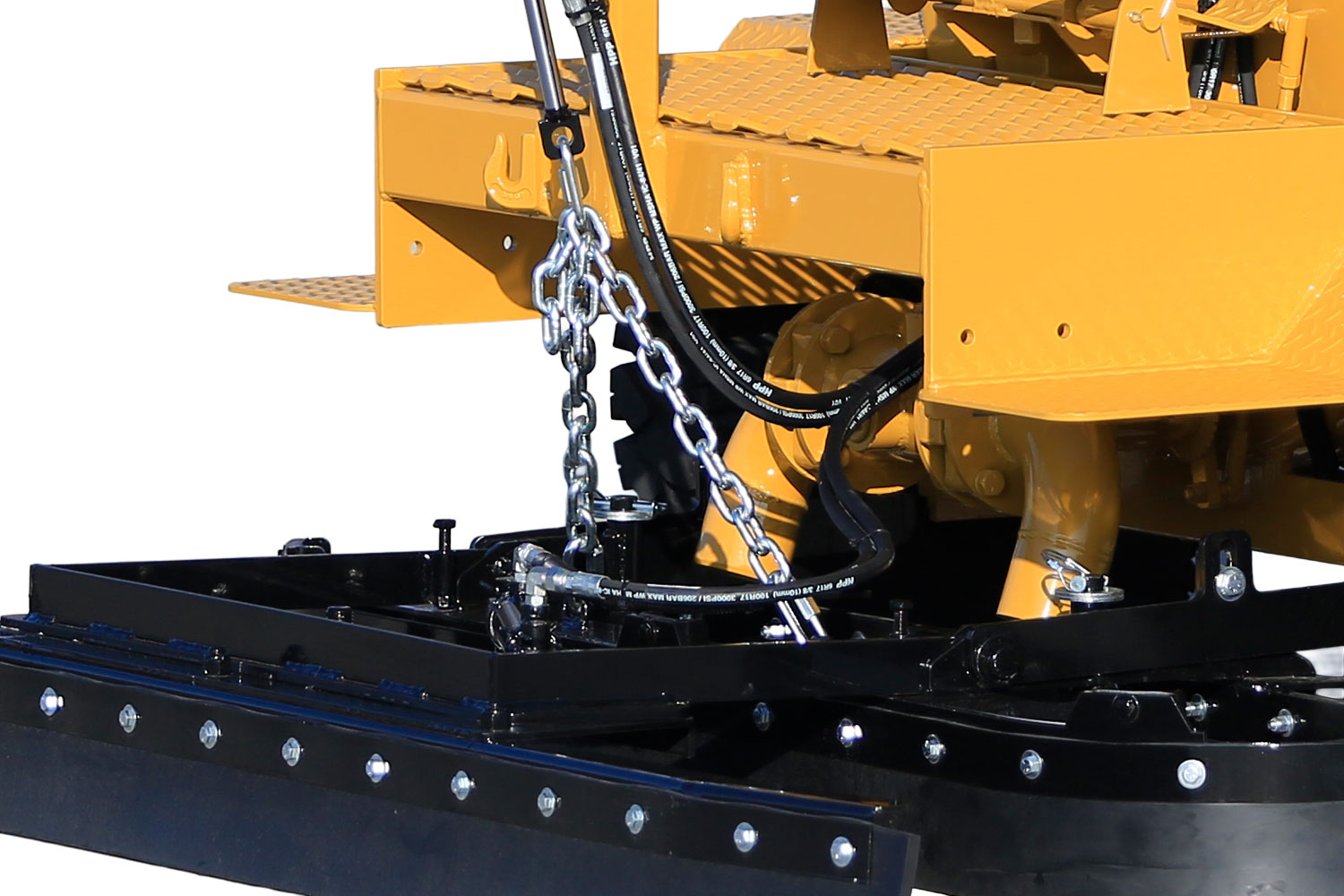

Hydraulic Shift for Angling the Squeegee
Power Steering
Dual Easy-Open Butterfly Valves

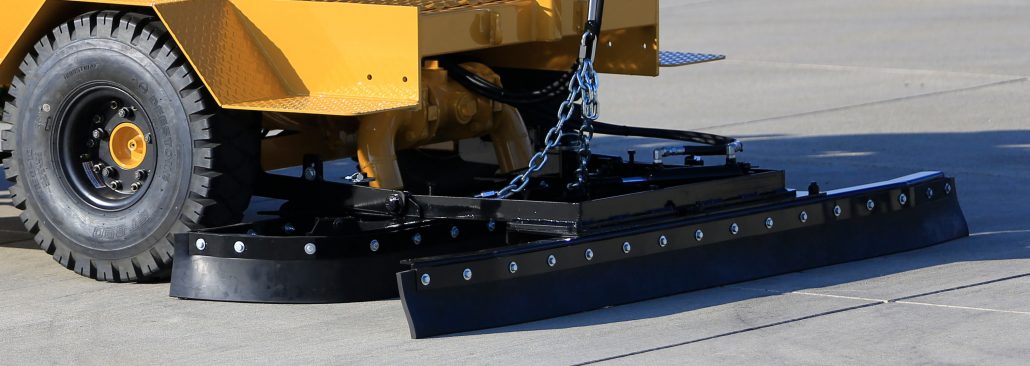

Floating Squeegee Assembly

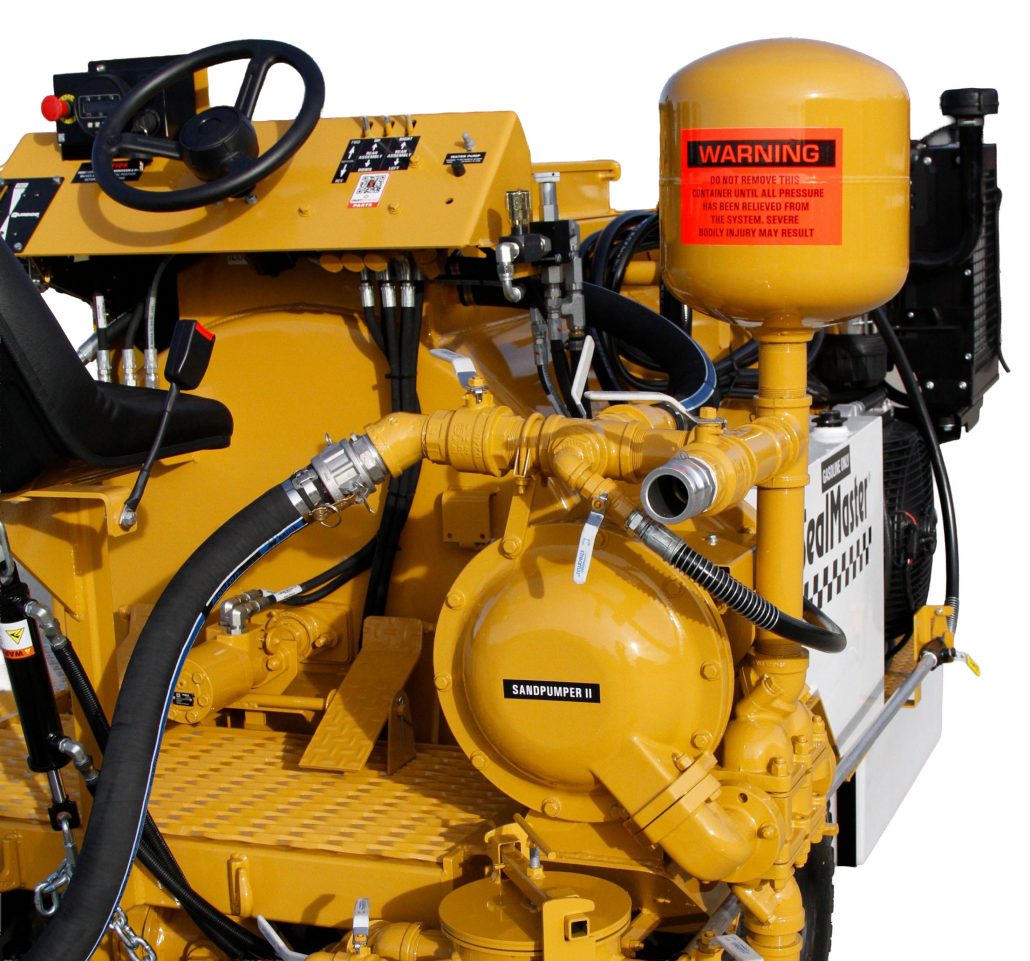

SandPumper II
1-Gallon Basket Strainer

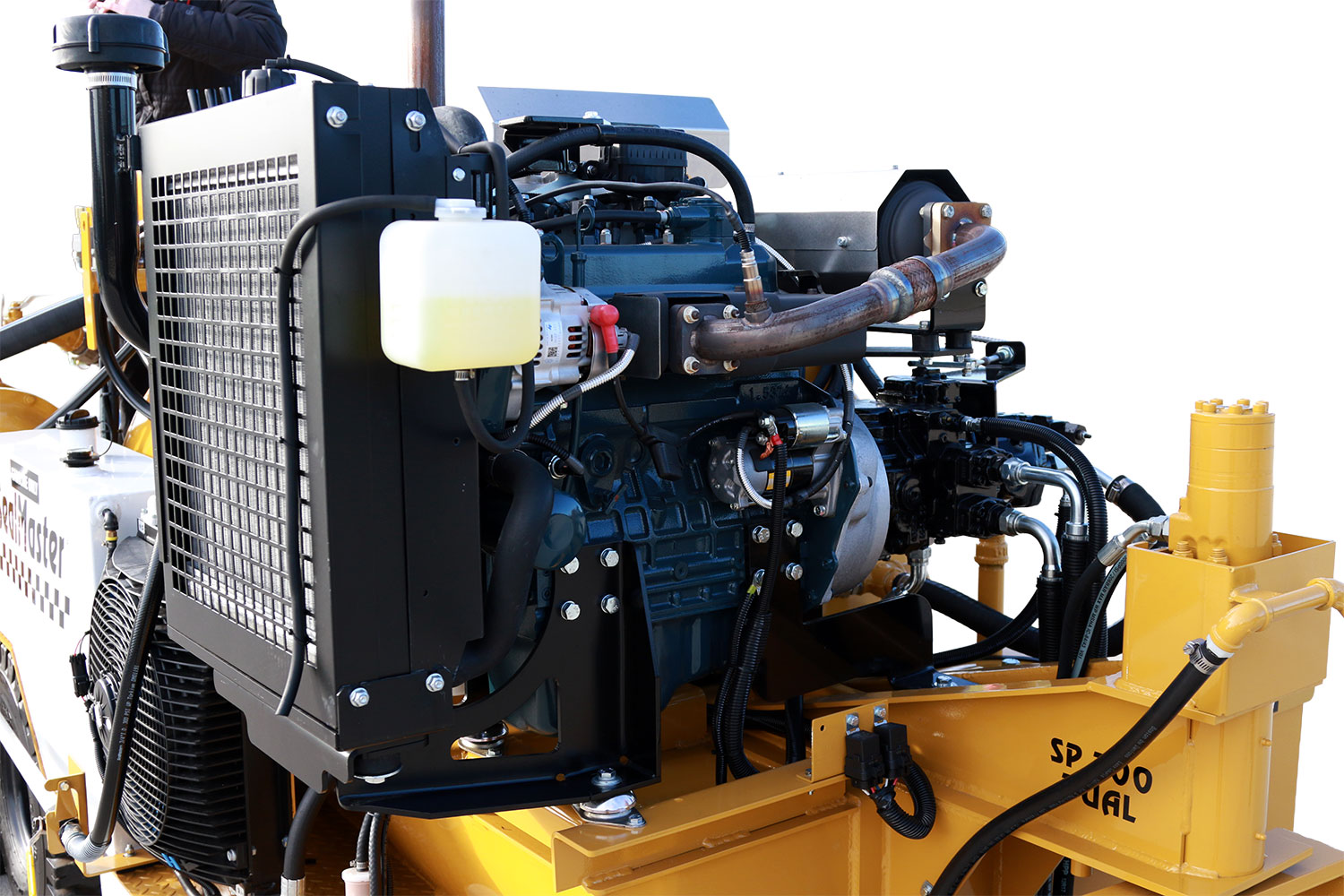

49 HP Kubota Gasoline Engine
Optional features
Custom Built to Fit Your Needs

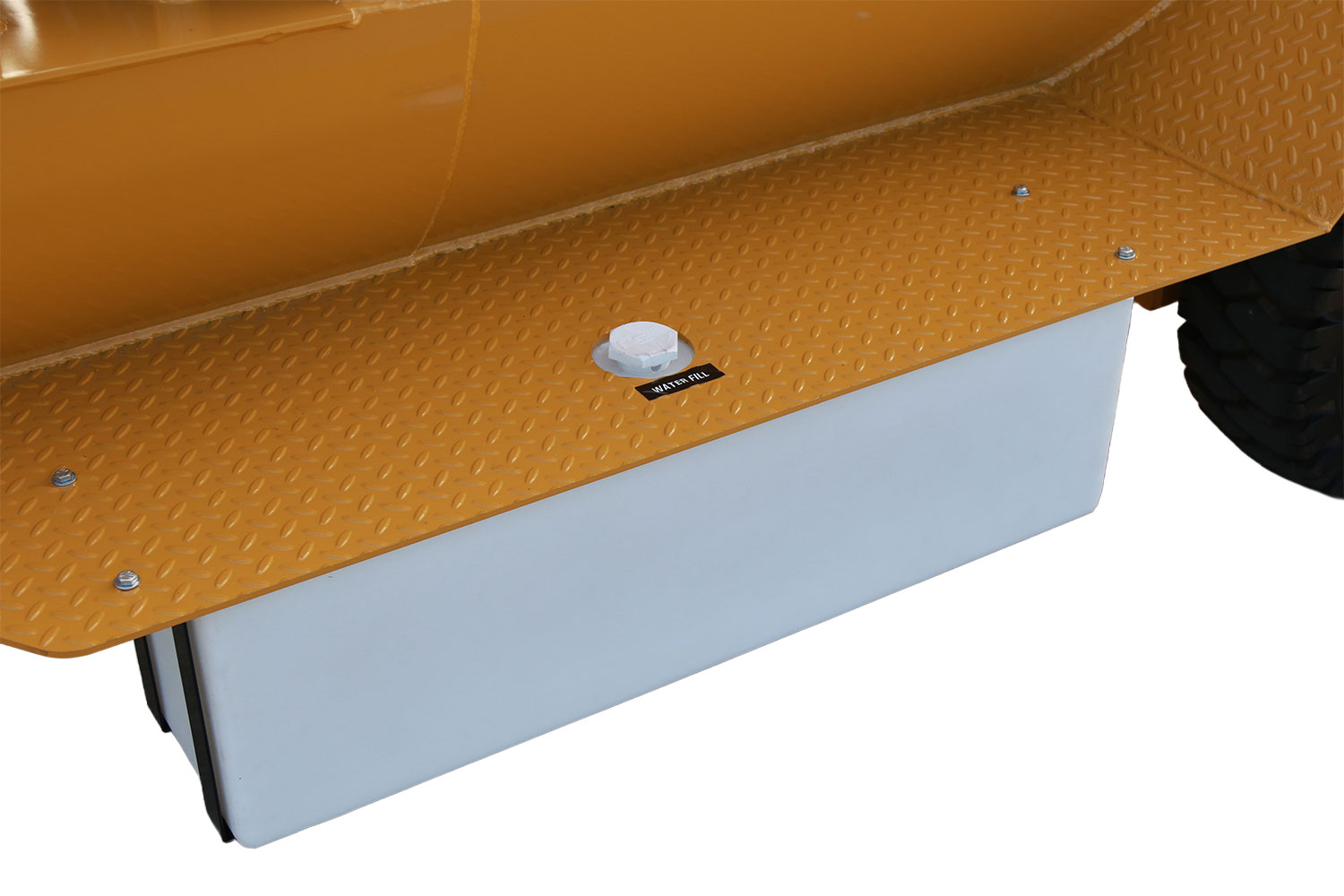

28-Gallon Water System
Keep water readily available for cleaning up equipment and tools, as well as other jobsite needs.
Hydraulically Activated Spray Bar
Spray material in a wide, uniform pattern with a hydraulically activated spray bar designed to increase coverage on larger pavement areas.
Specifications

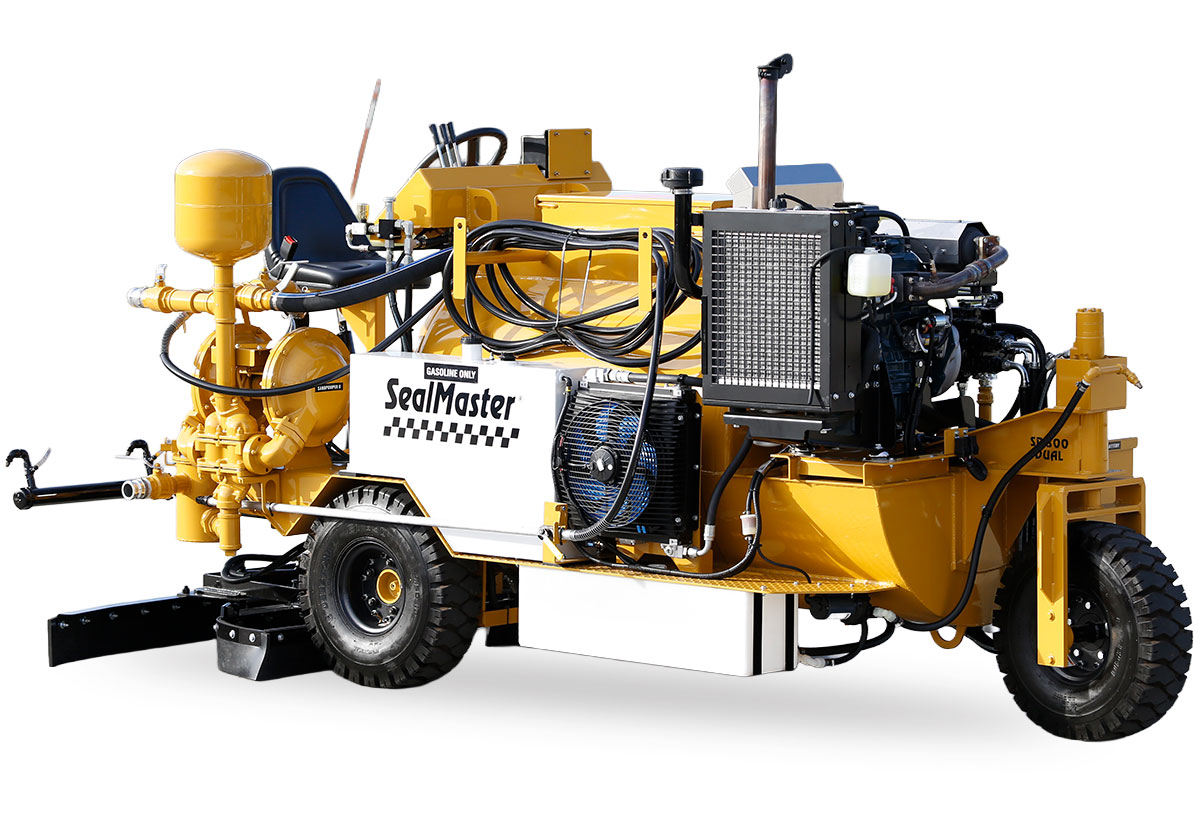

SealMaster
SP 300 Dual
Spray / Squeegee Machine
Dimensions
| Height | 65″ |
|---|---|
| Width | 63″ |
| Length | 140″ |
| Wheel Base | 60″ |
| Weight | 3,880 lbs. |
Tank & Application System
| Tank Capacity | 320 gallons |
|---|---|
| Spray Width | 108″ |
| Squeegee Width | 93″ |
| Squeegee Assembly | Floating quick-change design with front box squeegee and rear-angling squeegee |
Engine & Drivetrain
| Engine | 49 HP Kubota gasoline / Brand subject to change |
|---|---|
| Drivetrain | Hydrostat Direct Drive |
| Optional Engine | 21.6 HP Kubota Diesel |
