Features
Standard features on the PowrLiner 3500
PermaStroke Technology
- PermaStroke Technology provides long-term durability with no piston or packings to replace and only two field-serviceable wear parts.
Sealed Hydraulic System
- The sealed hydraulic system eliminates electronics and clutches that can burn out, providing a simple and durable drive system.
Sureflo™ Pusher Valve
- The Sureflo Pusher Valve helps make priming the pump quick and easy.
FlatLine Pulsation Dampener™
- The FlatLine Pulsation Dampener reduces pressure fluctuations and deadband in the system to help maintain consistent spray performance.
Removable Spray Gun
- The removable spray gun allows operators to switch from line striping to stenciling applications when needed.
No-Spill Pump Filter
- The no-spill pump filter keeps coating contained within the housing when the filter is removed for cleaner maintenance.
16-Inch Pneumatic Tires
- Large 16-inch pneumatic tires provide increased portability and easier movement across rough surfaces.
Swing-Back Design
- The swing-back design provides added flexibility when positioning and operating the spray gun.
Latex and Oil-Based Coating Compatibility
- The PowrLiner 3500 sprays both latex and oil-based field and pavement marking coatings for added application versatility
Specifications
Titan

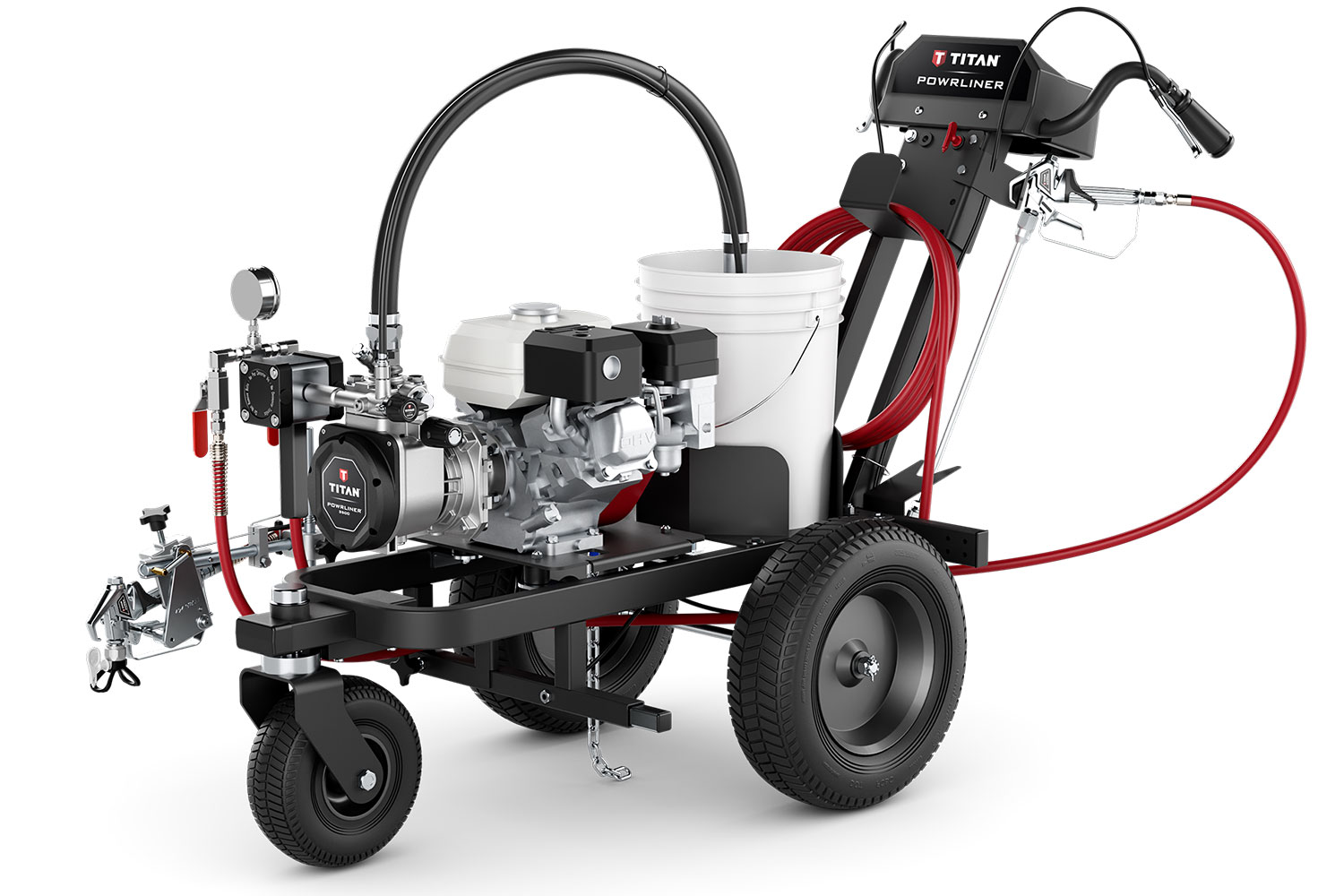

PowrLiner 3500
Airless Line Striper
Engine
| Gasoline Engine | 120cc Honda |
|---|---|
| Fuel Capacity | 0.66 gal. |
Performance
| Maximum Viscosity | 20,000 mPa-s |
|---|---|
| Maximum Delivery | 0.75 GPM |
| Maximum Working Pressure | 3,300 PSI (22.8 MPa / 228 bar) |
| Maximum Tip Size | 0.027″ |
| Maximum Coating Material Temperature | 109°F |
Paint System
| Hose Connection Thread | NPSM 1/4 |
|---|
Dimensions
| Weight | 192 lbs. |
|---|---|
| Length | 65″ |
| Width | 32.5″ |
| Height | 39.5″ |
Hydraulic System
| Hydraulic Oil Capacity | 1.15 L |
|---|---|
| Gear Oil Capacity | 0.05 L |
Noise & Vibration
| Maximum Sound Pressure Level | 74 dBA |
|---|---|
| Maximum Vibration at Spay Gun | Less than 2.5 |
Flexible Buying Options
Equipment Rentals
Try the PowrLiner 3500 before you buy. Ask about available rental options to experience the performance of SealMaster’s industry-leading equipment.
Financing Options
Get the equipment you need without the upfront burden. Attractive financing options are available to help you continue growing your business.
Trusted by Contractors, Municipalities and DOTS Nationwide
SealMaster has been the industry leader in pavement maintenance for over 55 years, delivering equipment and products that crews rely on every day. With more than 160 locations nationwide and distribution centers around the world, SealMaster offers unparalleled access, support and service that sets it apart.
Unlike others in the industry, SealMaster has the largest dedicated dealer network providing local expertise, service and parts availability when you need it. From startup contractors to established crews, SealMaster is built to support your operations at every stage.
