Features

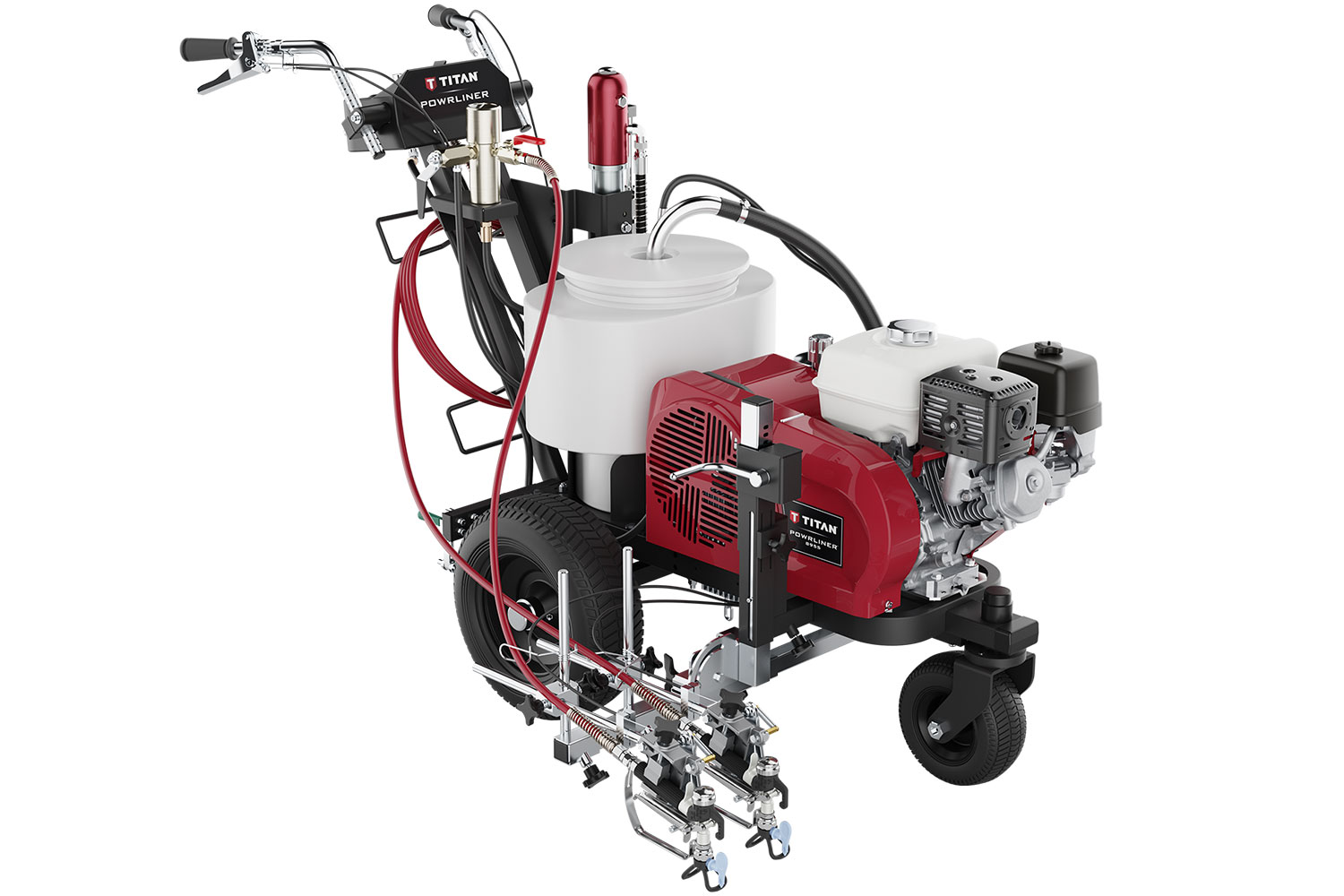

Standard features on the PowrLiner 8955
DeadLock Handlebars
- DeadLock Handlebars adjust in and out, up and down, and pivot forward or back to accommodate different operator heights and comfort preferences.
SmartArm™ Gun Mount
- The SmartArm gun mount pivots and lifts for quick line adjustments and easier transportation between jobs.
Hydraulic Drive
- The smooth, slow-stroking hydraulic drive helps extend the operational life of the sprayer while providing reliable operation.
Long-Life Pump Components
- The cylinder and piston rod undergo a proprietary heat-treating process designed to increase pump life by up to 150% compared to competitive pumps.
Precise Pressure Control
- Pressure adjusts from 400 to 3,300 PSI for spraying materials ranging from light-bodied coatings to low-VOC striping paints.
Heavy-Duty Frame
- The heavy-duty, epoxy-finished frame resists harsh solvents and corrosion for long-term durability.
12-Gallon Paint Hopper
- The 12-gallon paint hopper provides added material capacity for larger striping projects.
Pneumatic Tires
- Pneumatic tires provide shock absorption for smoother movement across the jobsite.
Rear Hose Rack
- The rear-mounted hose rack keeps the spray hose conveniently stored and accessible when needed.
Two-Gun Striping Capability
- The second gun kit includes an S-3 spray gun, hose and tip kit for wider or dual-line striping applications.
Gas-to-Electric Convertibility
- Tool-free conversion from gas to electric power allows the striper to be used on projects where gas engines are not permitted.
Specifications
Titan
PowrLiner 8955
Airless Line Striper
Engine
| Gasoline Engine | 196cc |
|---|---|
| Power Rating | 5.5 HP |
| Starting System | Electric Start |
| Fuel Capacity | 0.83 gal. |
Performance
| Maximum Viscosity | 65,000 mPa-s |
|---|---|
| Maximum Delivery | 2.5 GPM |
| Maximum Working Pressure | 3,300 PSI (22.7 MPa / 277 bar) |
| Maximum Tip Size – 1 Gun | 0.054″ |
| Maximum Tip Size – 2 Guns | 0.038″ |
| Maximum Coating Material Temperature | 109°F |
Paint System
| Paint Hopper Capacity | 12 gal. |
|---|---|
| Filter Insert | 50 Mesh |
| Special High-Pressure Hose | DN 6 mm, 15 m (50′ x 1/4″) |
| Hose Connection Thread | NPSM 1/4 |
Dimensions
| Weight | 339 lbs. |
|---|---|
| Length | 72″ |
| Width | 42″ |
| Height | 42″ |
Hydraulic System
| Hydraulic Oil Capacity | 1.56 gal. CoolFlo |
|---|
Tires
| Maximum Tire Pressure | 30 PSI (0.2 MPa / 2 bar) |
|---|
Noise
| Maximum Sound Pressure Level | 98 dBA |
|---|
