Features
Standard features on the MasterMix

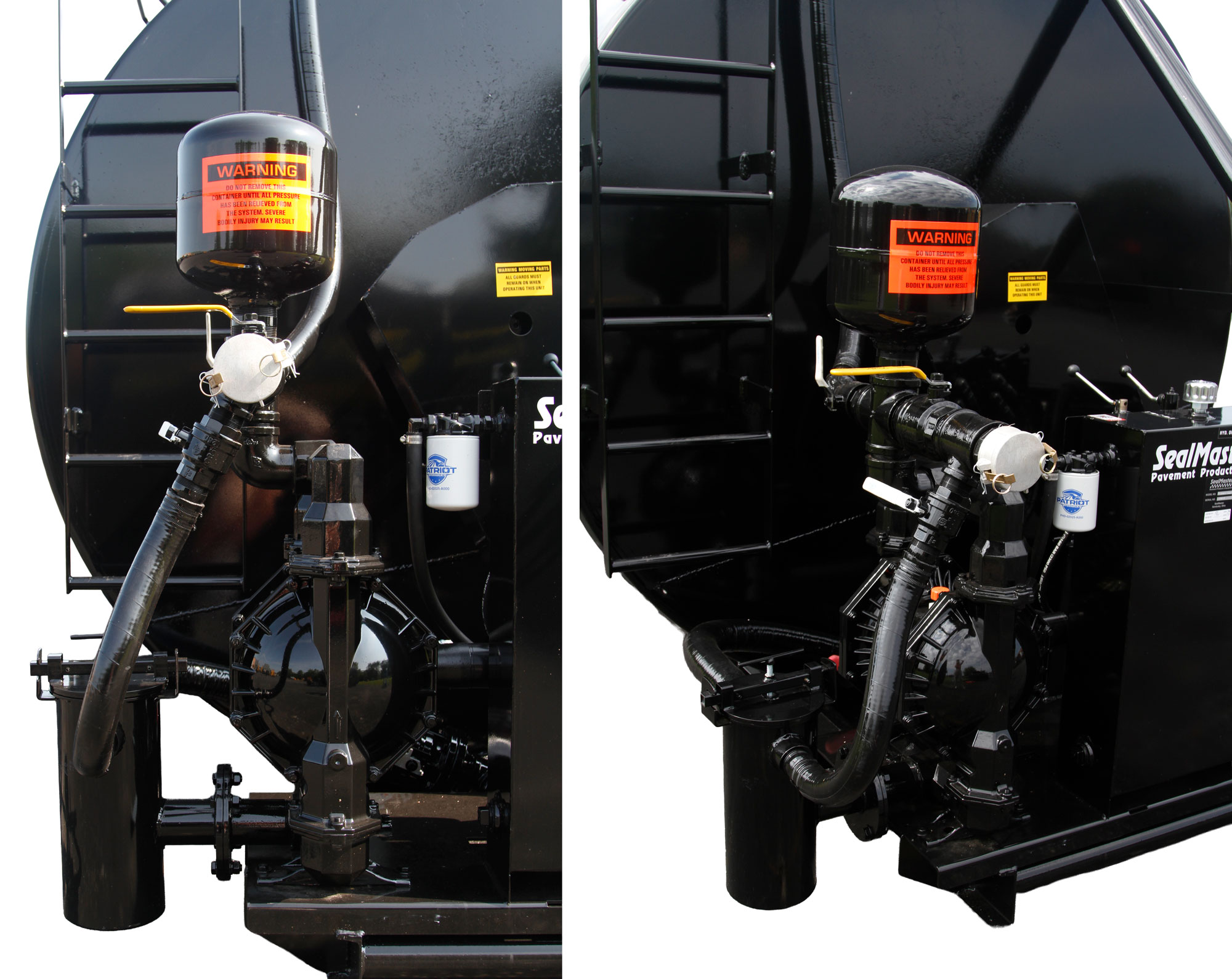

Hydraulic Driven Pump System
- The hydraulically driven diaphragm pump system delivers 90-100 GPM with ready-mix materials, providing dependable material transfer for loading application equipment.

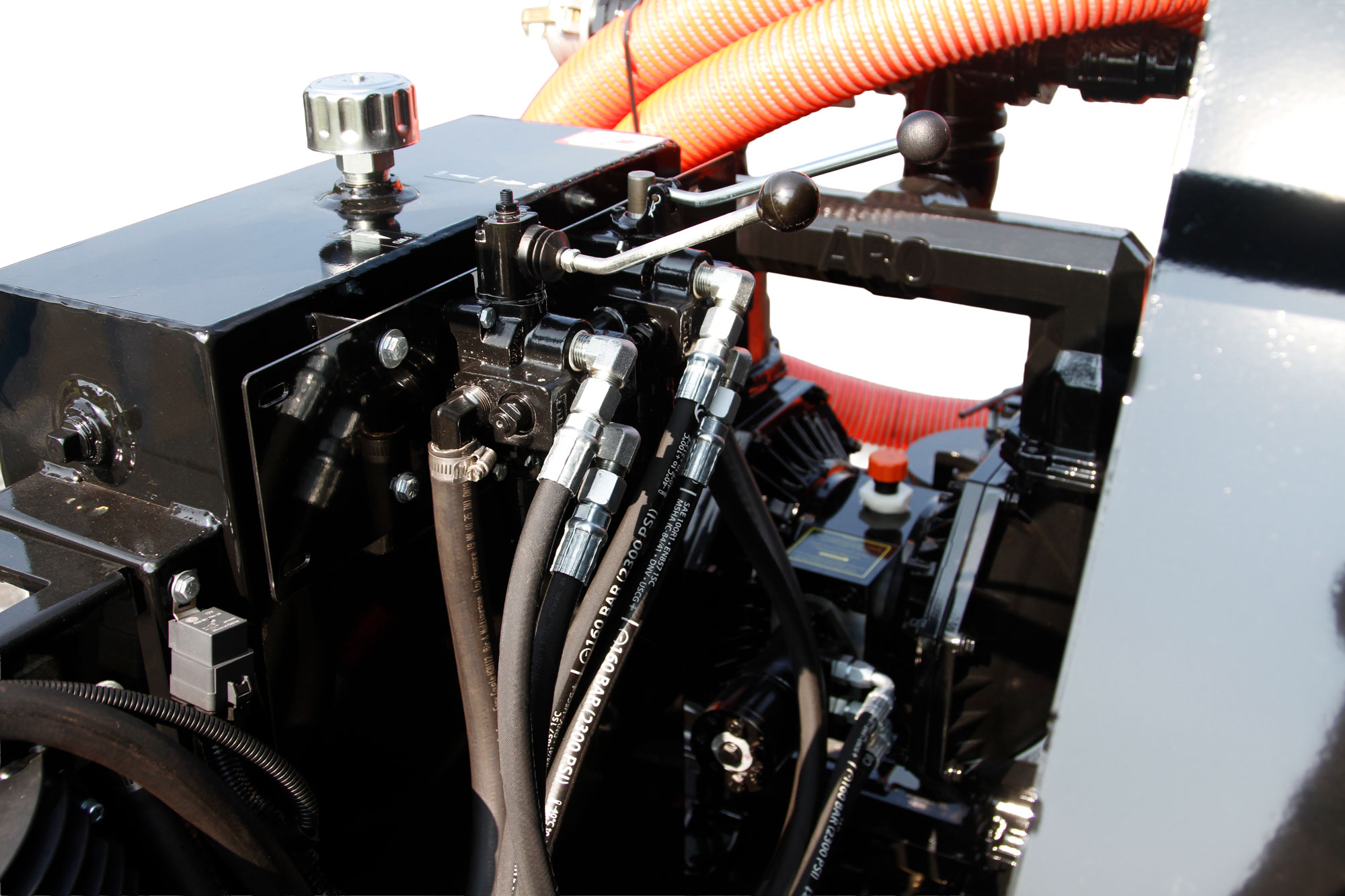

Heavy-Duty Agitation System
- When the wand or spray bar is turned off, the system seamlessly shifts to neutral.
Variable Speed Controls
- Independent variable speed controls allow operators to adjust both the agitation system and pump to match material and operating conditions.
12V Oil Cooler
- The integrated 12V oil cooler helps maintain hydraulic system performance during extended operation.

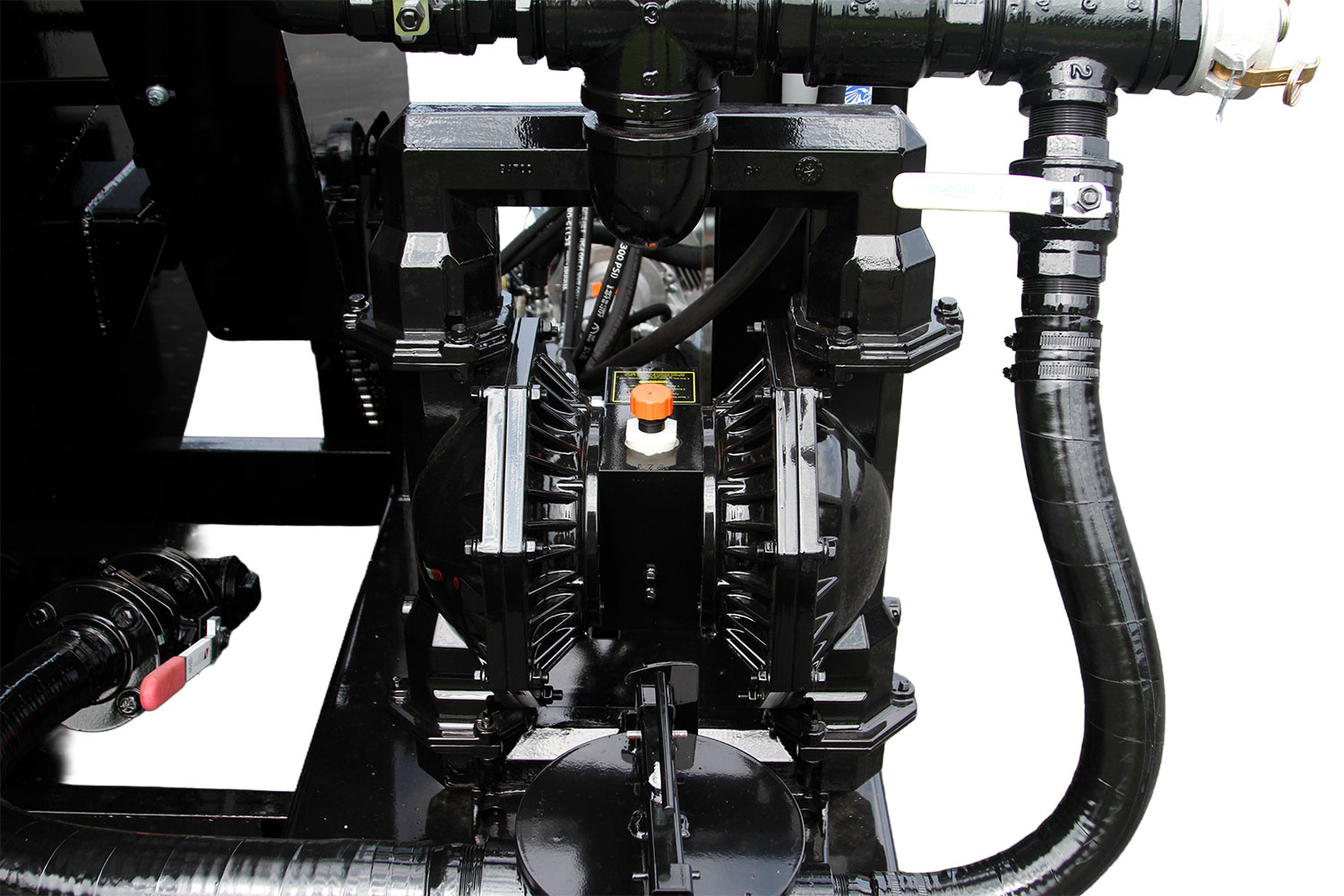

Hydraulic Driven Pump System

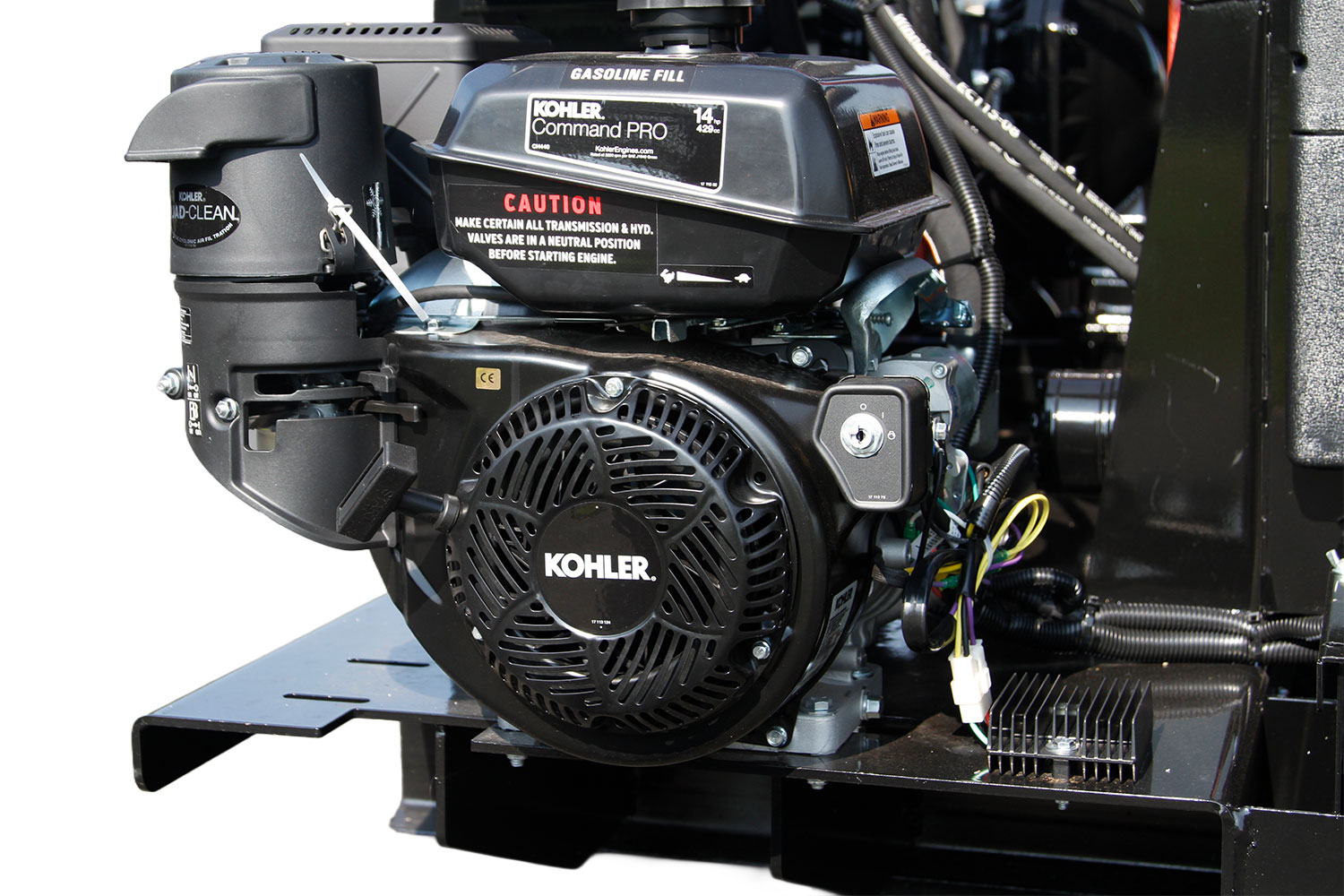

Gasoline-Powered Engine
Basket Strainer
Heavy-Duty Agitation System
Optional features
Custom Built to Fit Your Needs
Electric Motor Options
Choose either a three-phase or single-phase electric motor configuration to match your facility’s power requirements.
3-Inch Bowie Steel & Rubber Gear Pump
Equip your tank with a 3-inch Bowie steel and rubber gear pump for dependable material transfer.
3-Inch Air Diaphragm Pump
Configure your tank with a 3-inch air diaphragm pump to meet your operation’s material transfer needs. (Air supply not included.)
Bulk Sealer Delivery Available
Need to keep your tank full? Many SealMaster locations offer bulk pavement sealer delivery directly to contractor yards, helping reduce downtime and eliminate trips for material pickup. Contact your local SealMaster location to learn about bulk delivery options in your area.
Specifications
SealMaster
MasterMix Extreme Duty
Bulk Storage & Mixing Tanks
Specifications
| Tank Size | 6,000 gal. | 8,000 gal. | 10,000 gal. | 12,000 gal. |
|---|---|---|---|---|
| Height | 100″ | 100″ | 130″ | 130″ |
| Width | 96″ | 96″ | 120″ | 120″ |
| Length | 243″ | 312″ | 272″ | 306″ |
| Weight | 7,200 lbs. | 7,950 lbs. | 8,800 lbs. | 10,000 lbs. |
