Features
Standard features on the LineLazer V 200 HS Automatic
Two Automatic Guns
- Two automatic spray guns provide controlled gun activation to help operators work efficiently across larger striping projects.
- Automatic operation reduces the need for repeated manual gun activation while striping.
LiveLook Display with SmartControl
- Track, measure and control key striping information directly from the machine.
- SmartControl maintains consistent spraying pressure for uniform line quality, while the J-Log System provides proof-of-job data with USB download capability.
Honda GX Engine
- The Honda GX engine provides reliable, easy-starting power for daily striping work.
- Oil Alert automatically shuts down the engine if the oil level drops too low, helping protect the engine from damage.
EasyMark Gun Adjustment System
- The guide mark system makes it easy to position and align the spray guns for different striping applications.
- Two-gun capability provides flexibility when setting up the machine for the job.
EZ Align Wheel System
- Quickly adjust front-wheel alignment to help keep the striper tracking straight.
- The simple adjustment system requires no special tools.
DualComfort Handlebar System
- Easily adjust the handlebar position to fit the operator and provide a comfortable setup while striping.
Specifications
Graco

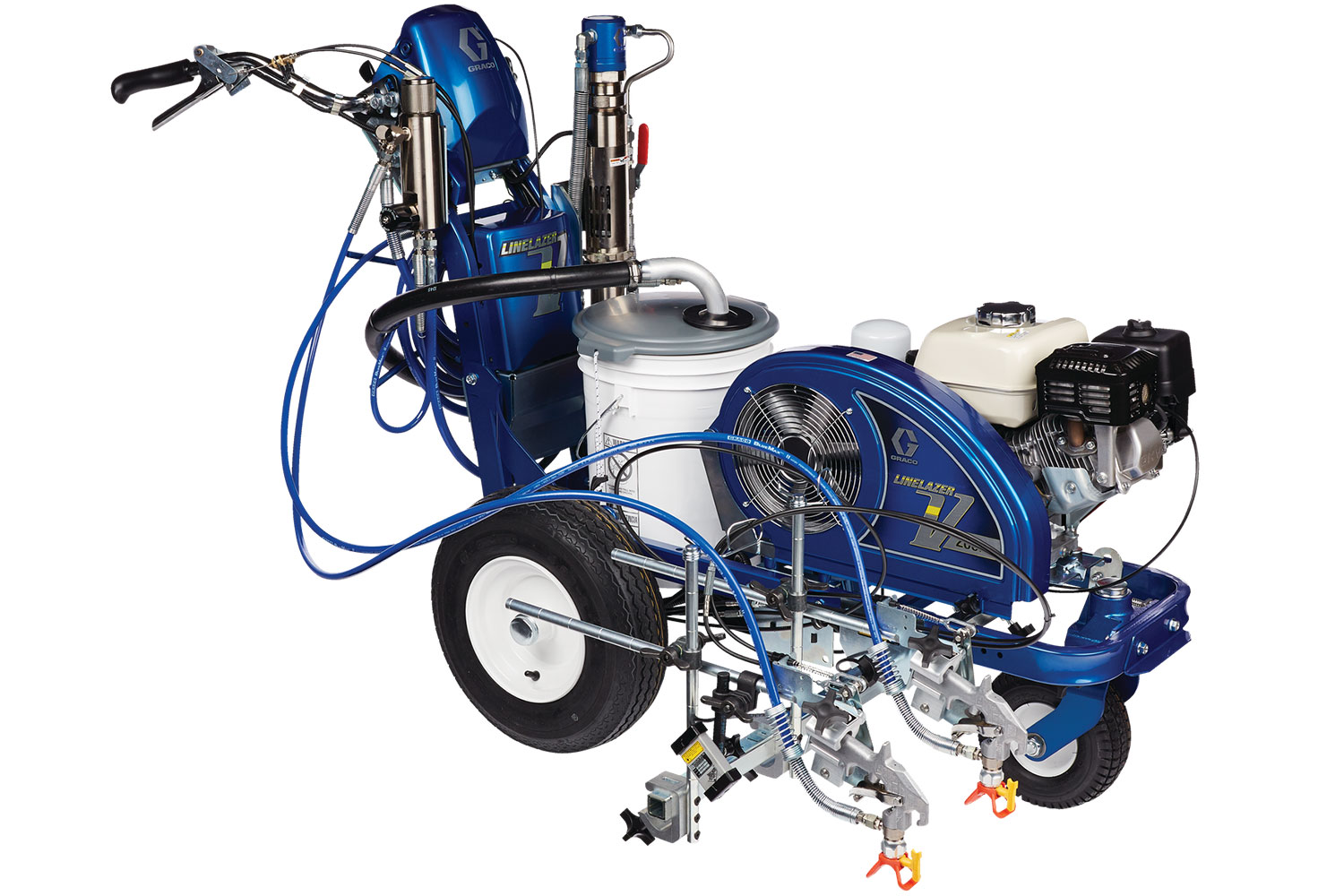

LineLazer V 200 HS Automatic
Automatic Gun Control for High-Production Striping
Dimensions
| Height (Handlebar Down) | 44.5″ Unpackaged / 52.5″ Packaged |
|---|---|
| Width | 34.25″ Unpackaged / 37″ Packaged |
| Length (Platform Down) | 68.75″ Unpackaged / 73.5″ Packaged |
| Weight (Dry, No Paint) | 322 lbs. Unpackaged / 389 lbs. Packaged |
Performance
| Power Rating | 6.5 HP @ 3,600 RPM (SAE J1349) |
|---|---|
| Maximum Delivery | 2.15 GPM |
| Maximum Working Pressure | 3,300 PSI |
| Maximum Tip Size – 1 Gun | 0.047″ |
| Maximum Tip Size – 2 Guns | 0.034″ |
| Cycles Per Gallon/Liter | 62 CPG |
| Hydraulic Reservoir Capacity | 1.25 Gallons |
| Hydraulic Pressure | 1,825 PSI |
Paint System
| Inlet Paint Strainer | 16 Mesh |
|---|---|
| Outlet Paint Strainer | 50 Mesh |
| Pump Inlet Size | 1″ NSPM (M) |
| Pump Outlet Size | 3/8″ NPT (F) |
Electrical
| Electrical Capacity | 84 W @ 3,600 RPM |
|---|---|
| Starting Battery | 12V, 22Ah, Sealed Lead Acid, Deep Cycle |
Noise
| Sound Power (ISO 9614) | 103.1 dBA |
|---|---|
| Sound Pressure (ISO 9614) | 86.5 dBA |
Vibration
| Hand-Arm (ISO 5349) | 1.6 |
|---|---|
| Whole Body (ISO 2631) | 0.4 |
Wheel Alignment
| Wheel Alignment | EZ Align Wheel System |
|---|
