Features
Standard features on the LineLazer 3400
Updated Frame
- The newly designed frame is 3 inches longer for added stability, improved tracking, and better line quality.
- Accepts a 15-gallon hopper and EZ Bead System.
Rear Mount Hose Wrap
- Provides easy on/off functionality for stencil applications.
- Rear-mounted design keeps the hose accessible when switching between striping and stencil work.
Easy-to-Reach Controls
- Handlebar-mounted controls allow operators to fine-tune the striper without stopping.
- Convenient positioning keeps key controls within easy reach during operation.
New Handlebar Design
- Designed to reduce vibration for greater operator comfort and control.
- Reduced vibration helps minimize operator fatigue during striping.
Electronic Pressure Control
- Accurate, tight-tolerance pressure control helps improve line quality.
- Allows operators to maintain precise control during application.
Endurance Chromex Pump
- Field-proven pump design provides reliable, long-lasting performance.
- Long-life rod treatment is four times harder than ordinary chrome and is designed to handle demanding materials.
Honda GX Engine
- The Honda GX engine provides reliable, easy-starting power for daily striping work.
- Oil Alert automatically shuts down the engine if the oil level drops too low, helping protect the engine from damage.
Easy Out Pump Filter
- Inside-out filter design simplifies pump maintenance and helps reduce tip clogs.
- Designed for easier, less-mess filter removal and cleaning.
Front Swivel Wheel
- Improves maneuverability when striping curves and allows operators to stripe close to curbs.
- Tapered locking pin design provides dependable operation.
Specifications
Graco

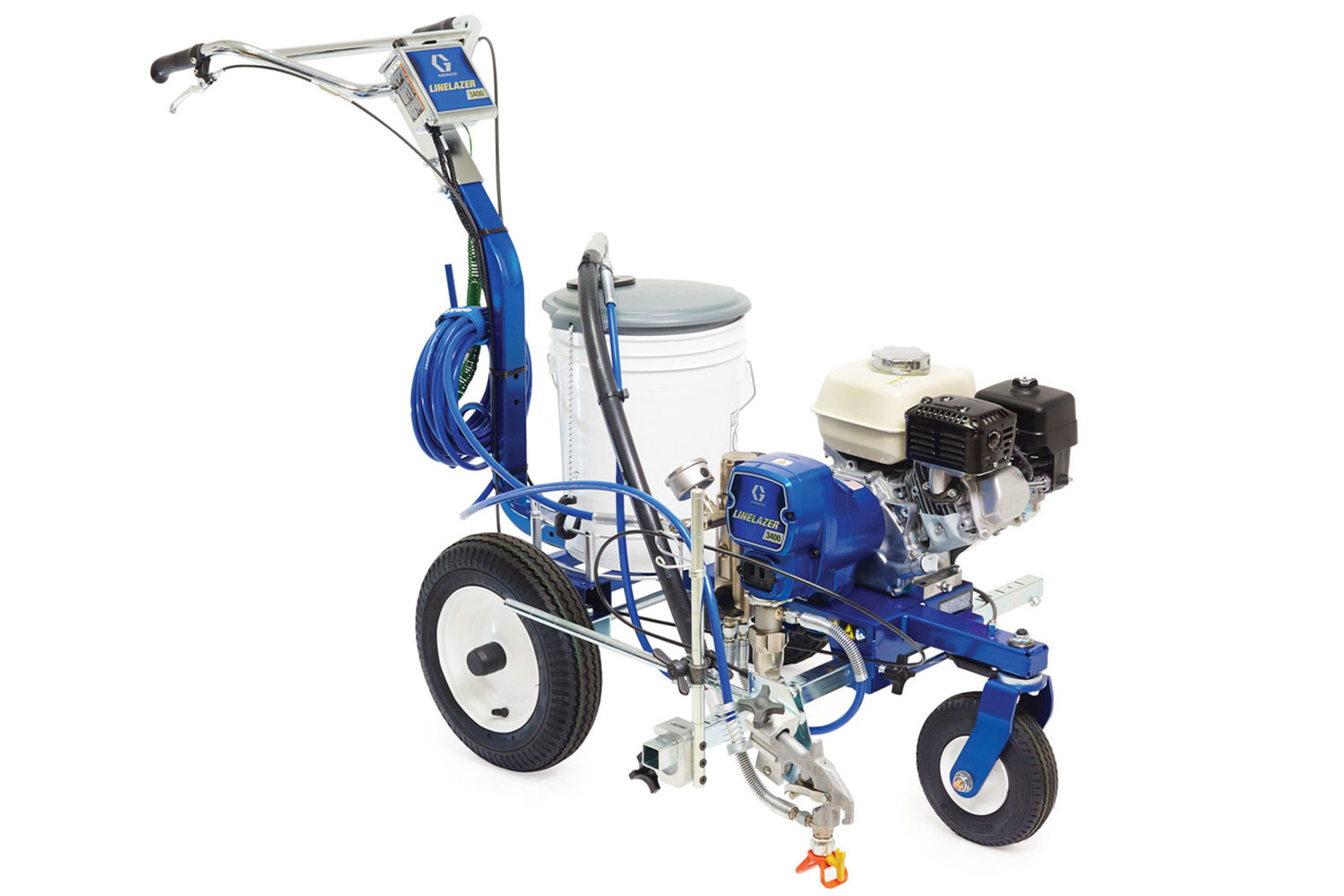

LineLazer 3400
Dependable 1-Gun Striping for Smaller Jobs
Dimensions
| Height (Handles Down) | 39.4″ |
|---|---|
| Height (Handles Up) | 41.3″ |
| Length (Handles Down) | 66.3″ |
| Length (Handles Up) | 68.0″ |
| Width | 26.0″ |
| Weight (Dry, Without Packaging) | 160 lbs. |
Performance
| Maximum Working Pressure | 3,300 PSI |
|---|---|
| Maximum Delivery | 0.75 GPM |
| Maximum Tip Size – 1 Gun | 0.027″ |
Engine
| Engine | Honda GX120 |
|---|---|
| Power Rating | 4.0 HP @ 3,600 RPM (SAW J1995) |
Paint System
| Inlet Paint Strainer | 12 Mesh, Stainless Steel Screen, Reusable |
|---|---|
| Outlet Paint Strainer | 60 Mesh, Stainless Steel Screen, Reusable |
| Pump Inlet Size | 1.0″ Diameter |
| Fluid Outlet Size | .25″ Diameter |
Noise
| Sound Power (ISO 3741) | 91.0dBA |
|---|---|
| Sound Pressure (ISO 3741) | 91.0 dBA |
Vibration
| Left Hand (ISO 5349) | 260 |
|---|---|
| Right Hand (ISO 5349) | 225 |
Gun
| Maximum Working Pressure | 5,000 PSI |
|---|---|
| Weight (With Tip and Guard) | 18 oz. |
| Inlet | 1/4 NPSM |
| Maximum Material Temperature | 120°F |
