Features
Standard features on the Crack Pro RMV
Operator-In-Vehicle Design
- Keep crew members off the roadway and inside the vehicle during crack sealing operations.
- The Robotic Maintenance Vehicle is designed to reduce worker exposure to traffic while completing pavement maintenance work.

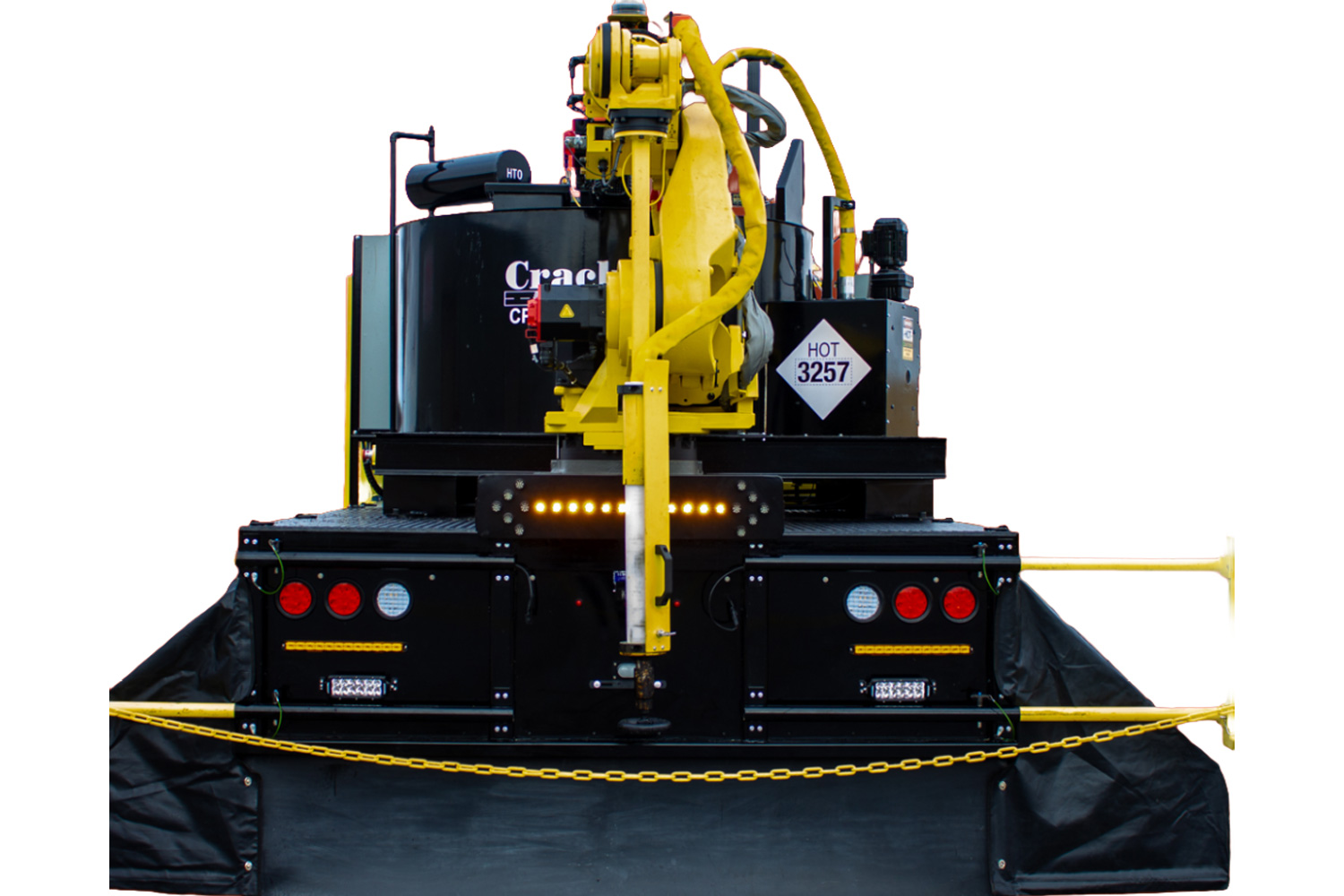

FANUC Six-Axis Robot
- The FANUC R-2000iC/165 six-axis robot uses line tracking to follow pavement cracks and position the crack sealing applicator during operation.

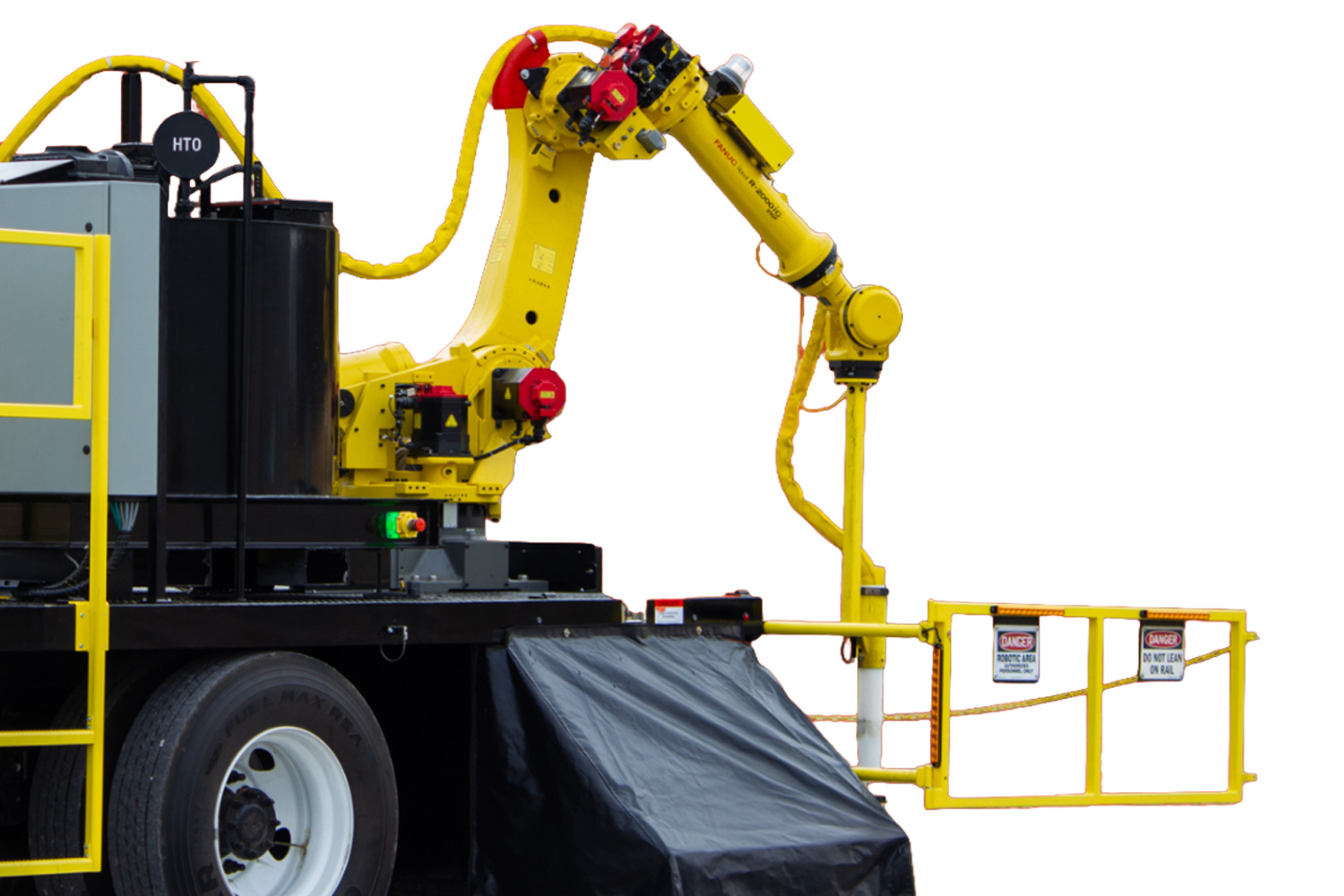

VISTA Advanced AI Vision Software
- VISTA Advanced AI Vision Software uses integrated cameras and lasers to identify and track pavement cracks, providing the information needed to guide the robotic crack sealing system.

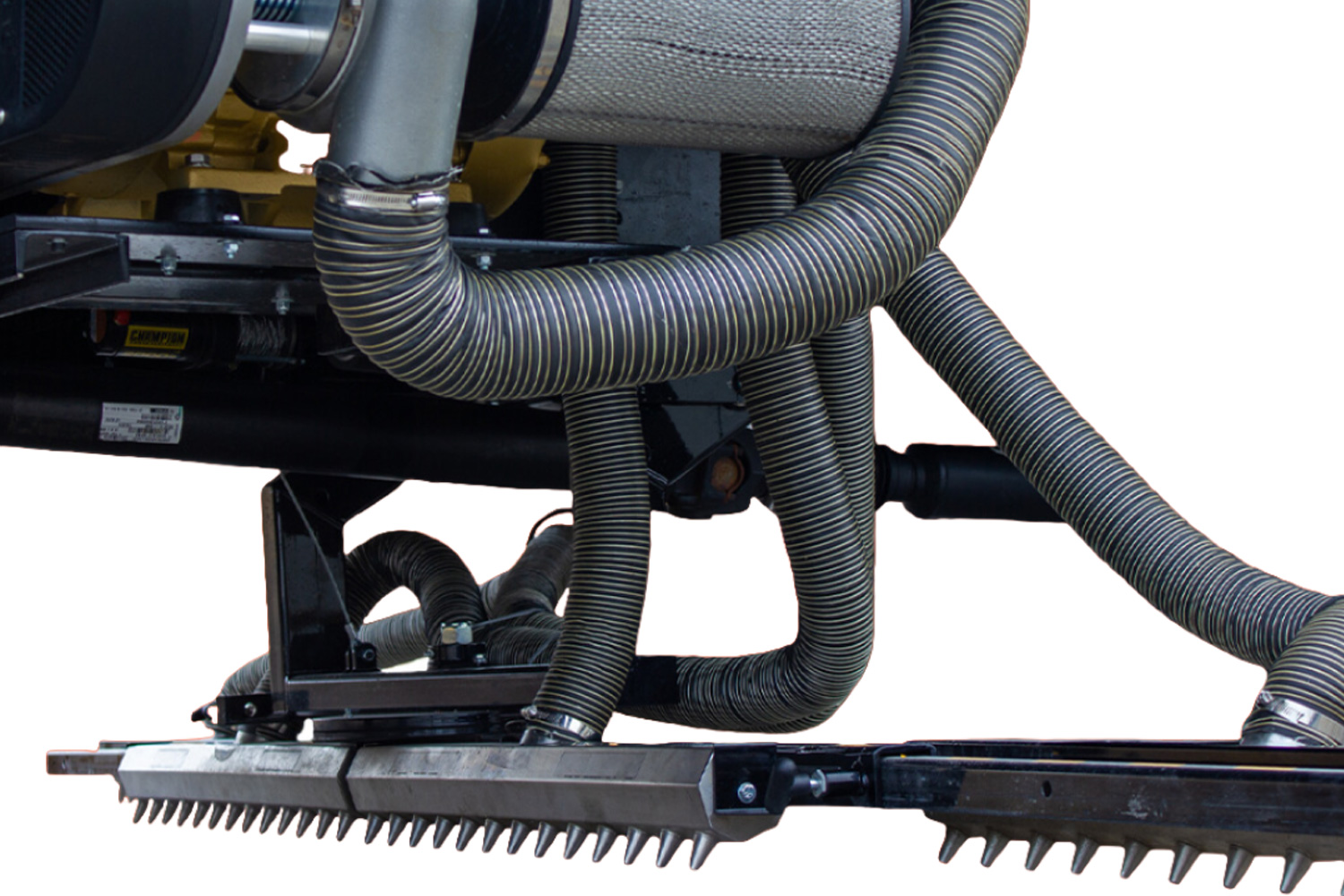

Integrated Blowoff System
- Prepare pavement cracks for sealing with an integrated 15 HP turbine and 12-foot air nozzle blowoff system that removes dirt and debris ahead of sealant application.

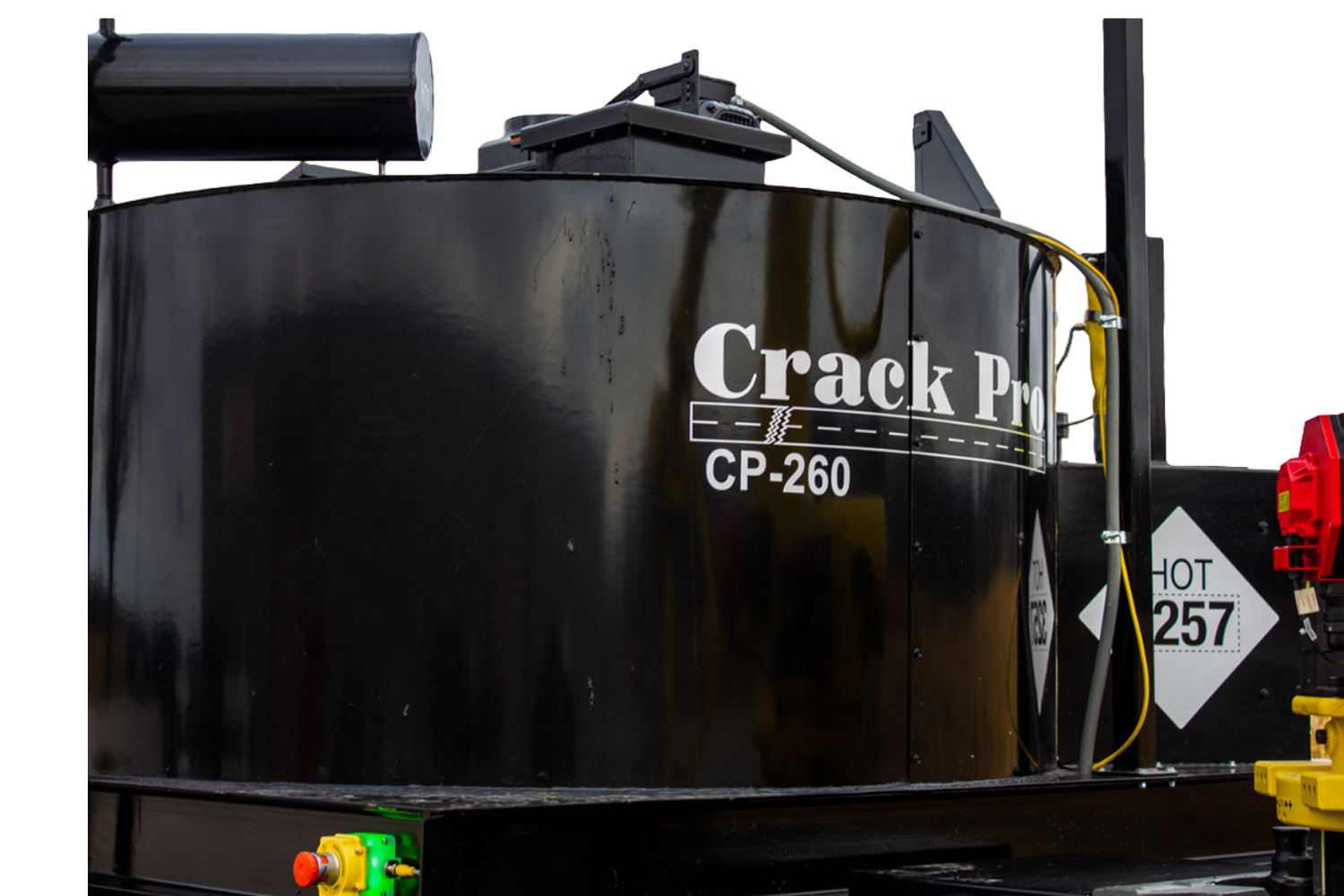

SealMaster CrackPro 260 Melter Applicator
- The integrated SealMaster CrackPro 260 Melter Applicator provides 260 gallons of material capacity for hot-pour crack sealing applications.

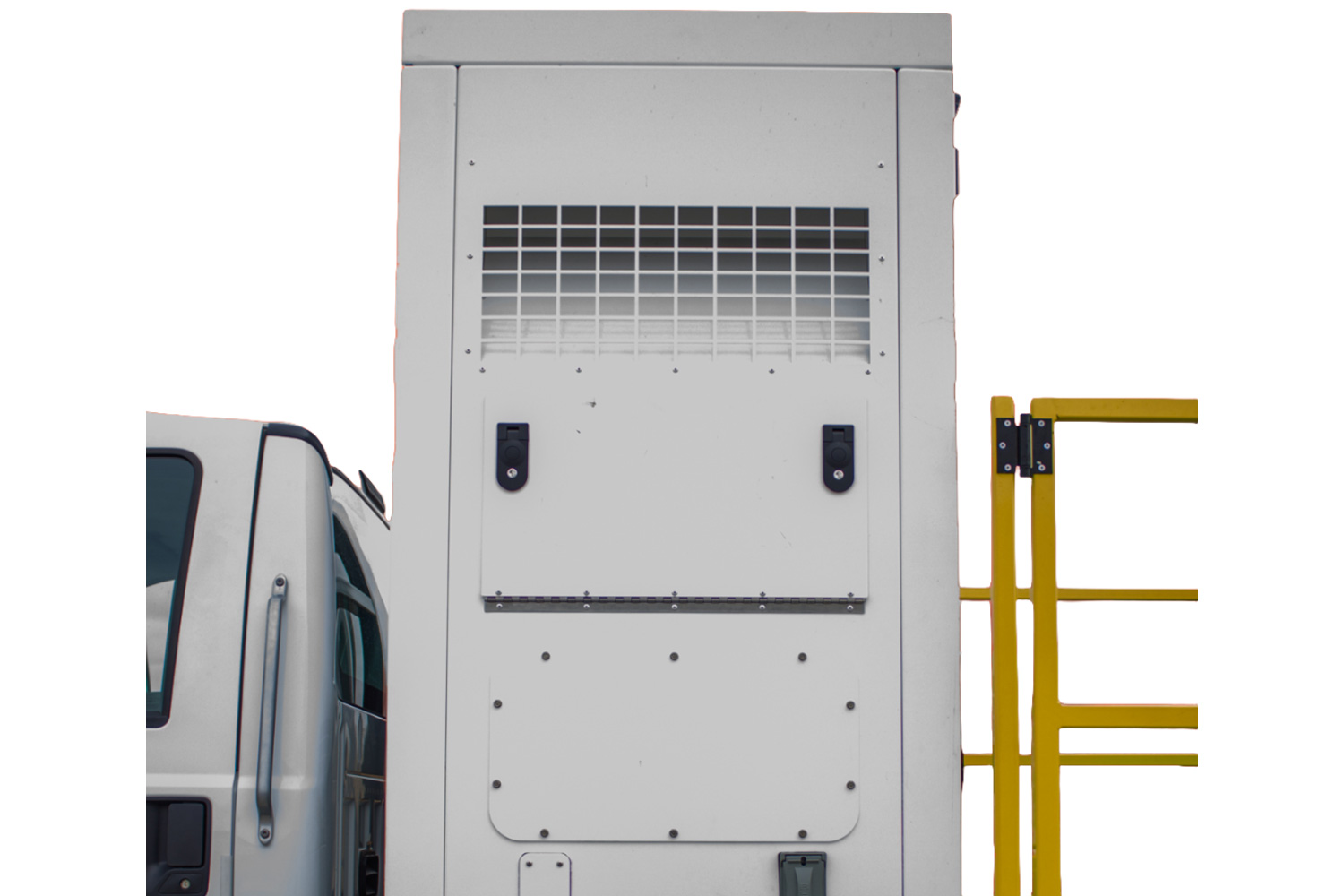

Onboard Generator
- The Stateline generator supplies power for the robotic maintenance system with 480V, three-phase, 18 kW and 23 amp output.
Fanuc Robot
Blowoff System
Stateline Generator
SealMaster Crack Pro
Vista AI Vision System

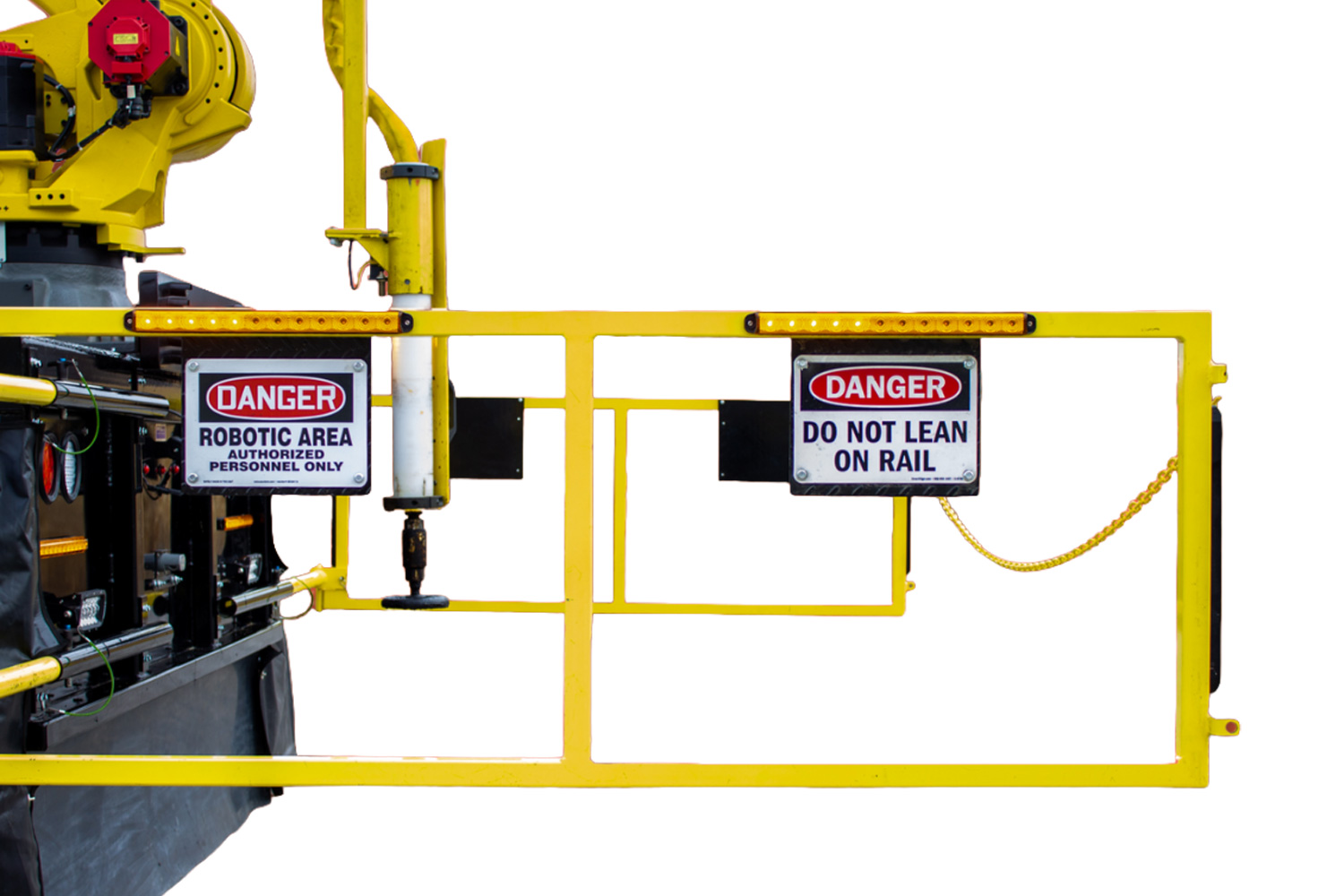

Enclosed Work Area
Specifications
SealMaster

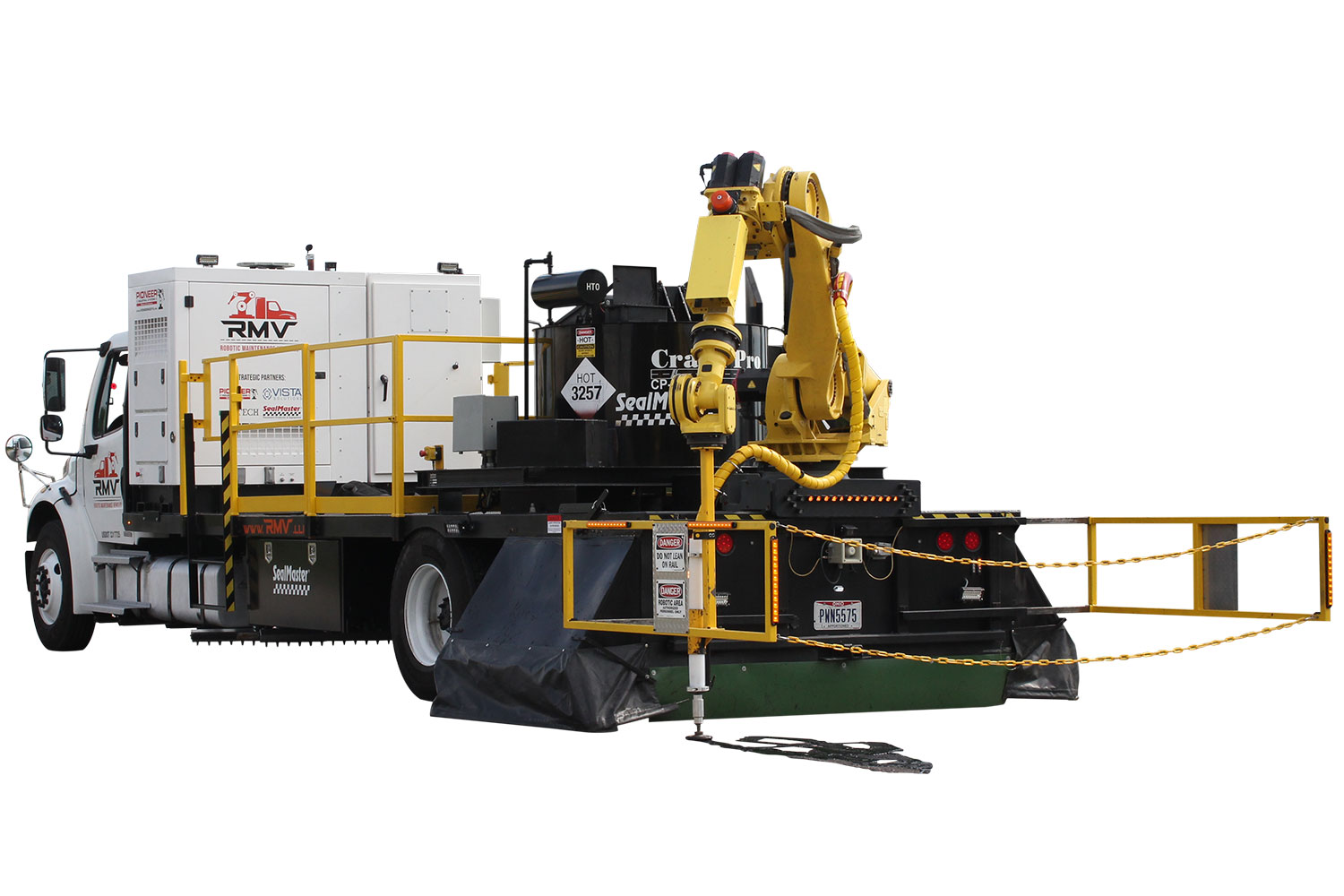

Crack Pro Robotic Maintenance Vehicle
Robotic Crack Sealing Machine
Specifications
| Chassis | Class 7 (33,000 GVW) or Class 8 (80,000 GVW) |
|---|---|
| Overall Height | 128″ |
| Transport Width | 100″ |
| Crack Sealing Width | 96 in / 120 in. / 144 in. |
| Bed Length | 240 in. / 288 in. |
| Tank Capacity | 260 gal. |
| Blower Width | 96 in. / 120 in. / 144 in. |
Flexible Buying Options
Financing Options
Get the equipment you need without the upfront burden. Attractive financing options are available to help you continue growing your business.
Trusted by Contractors, Municipalities and DOTS Nationwide
SealMaster has been the industry leader in pavement maintenance for over 55 years, delivering equipment and products that crews rely on every day. With more than 160 locations nationwide and distribution centers around the world, SealMaster offers unparalleled access, support and service that sets it apart.
Unlike others in the industry, SealMaster has the largest dedicated dealer network providing local expertise, service and parts availability when you need it. From startup contractors to established crews, SealMaster is built to support your operations at every stage.
