SealMaster CrackPro Crack filling and crack sealing equipment sets the industry standard for oil-jacketed melter applicators for hot rubberized asphalt crack sealing materials. CrackPro oil-jacketed melter applicators for hot pour crack filling are available in several sizes with many options to choose from. SealMaster CrackPro oil-jacketed melter applicators are designed for melting and applying hot rubberized asphalt crack sealants for filling and sealing cracks in asphalt and concrete pavement surfaces. CrackPro units are available as gravity flow units and melter applicators with pump systems and heated hose.

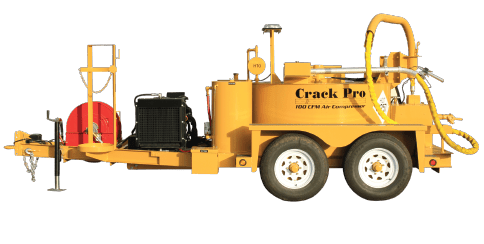

CrackPro Heated Hose Machines
Oil-Jacketed Melter/Applicators for Hot Rubberized Asphalt Crack Filling and Sealing Materials.
CP-125 CrackPro Heated Hose Machine
A 125 gallon oil-jacketed, tow behind Melter/Applicator
CP-260 CrackPro Heated Hose Machine
A 260 gallon oil-jacketed, tow behind Melter/Applicator
Specifications:
- Tank Capacity: 125, 260 gallons
- Heat Transfer Oil: 25, 30 gallon capacity
- Maximum BTU Input: 372,000 BTU
- Construction: Oil Jacket type tank
- Temperature Control: Automatic Electronic
- Tank Opening: 16″ x 24″ no splash material loading
- Insulation: 1 1/2″ High Temperature Ceramic
- Agitation: Full Sweep, Hydraulically Driven, Reversible
- Material Pump: 2″ Steel Gear, Reversible
- Heating System: Bottom fired forced air diesel fuel
- Suspension: Torsion type axle with 5 lug tubeless tire
- Application Hose: 3/4″ x 18′ electric hose (22′ available)
- Heated Hose: Eliminates need to flush out hose for cleanup
- CP125 / 260 DA Models with Air Compressor : Kubota V1505 Diesel Motor
- CP125D Non-Air: Kubota Z602 Diesel Motor
- CP260D Non-Air: Kubota Z902 Diesel Motor
| CP 125 | CP 260 | |
| Loading Height | 54″ | 48″ |
| Overall Height | 80″ | 90″ |
| Width | 78″ | 93″ |
| Length | 192″ | 206″ |
| Empty Weight | 3,700 lbs. | 5,000 lbs. |
| Empty Weight with Conveyor | 4,200 lbs. | 5,500 lbs. |
| Height with Conveyor | 8′ 6″ | 8′ 6″ |
The CP-260 and CP-125 Feature ALL DIESEL POWER!
Both the burner and the engine are powered by diesel fuel for maximum safety, efficiency, and performance
The CrackPro Advantage
- The Industry’s Fastest Heat up Times
- Lowest Machine Profile for Maximum Operator Safety
- The Industry’s Largest Air Compressor
TR 260 & TR 400 Double Pump
Now Available
Standard Features on CrackPro CP-260 and CP-125:
 |
Digital Control Center with protective cover. Control Center offers AC Gauge to monitor heating of electric hose. |
 |
Anti-Splash Material Loading Hatch for safer loading of sealant materials. |
 |
Electro-hydraulic manifold with flow control for pump and mixer speeds. |
 |
Liquid Cooled Kubota Diesel Engine |
 |
Diesel fired Beckett Burner is electronically controlled with Auto Shut Off. |
 |
Direct-Drive FWD/REV Full Sweep Agitation |
Standard on CrackPro DA Models:
 |
Air compressor is Direct Drive 100 CFM |
 |
100’ x 5/8” Reeled Hose & Wand |

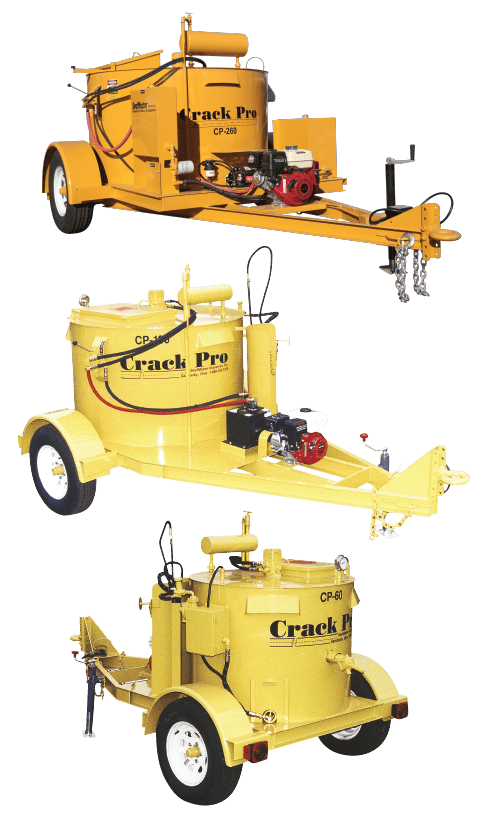

CrackPro Gravity Flow Melters
Oil-Jacketed Melters for Hot Pour Crack Sealing and Filling Materials
CrackPro 260 Gravity Flow Melter
A 260 gallon oil-jacketed, tow behind Melter
CrackPro 125 Gravity Flow Melter
A 125 gallon oil-jacketed, tow behind Melter
CrackPro 60 Gravity Flow Melter
A 60 gallon oil-jacketed, tow behind Melter
CrackPro Gravity Flow Melters Feature Fast Heat Up Times- Materials are Ready to Apply within 1 Hour
| CP 60 | CP 125 | CP 260 | |
| Tank Capacity | 60 gallon | 125 gallon | 260 gallon |
| Heat Transfer Oil | 10 gallons | 25 gallons | 30 gallons |
| Max. BTU Input | 225,000 | 225,000 | 372,000 |
| Construction | Oil Jacket | Oil Jacket | Oil Jacket |
| Temperature Control | Gas Thermostat | Gas Thermostat | Digital |
| Tank Opening | 12″ x 14″ | 12″ x 14″ | 16″ x 24″ |
| Insulation | 1 1/2″ ceramic | 1 1/2″ ceramic | 1 1/2″ ceramic |
| Agitation | Full Sweep Hydraulic | Full Sweep Hydraulic | Full Sweep Hydraulic |
| Heating System | LP gas burner | LP gas burner | LP gas burner |
| Power Unit | Honda Gas Motor | Honda GX240 | Honda GX240 |
| Suspension | 2,500 lb. axle | 5,400 lb. axle | 6,000 lb. axle |
| Loading Height | 54″ | 57″ | 59″ |
| Overall Height | 66″ | 71″ | 75″ |
| Width | 64″ | 78″ | 94″ |
| Length | 122″ | 136″ | 162″ |
| Weight | 1,500 lbs. | 2,640 lbs. | 3,640 lbs. |
